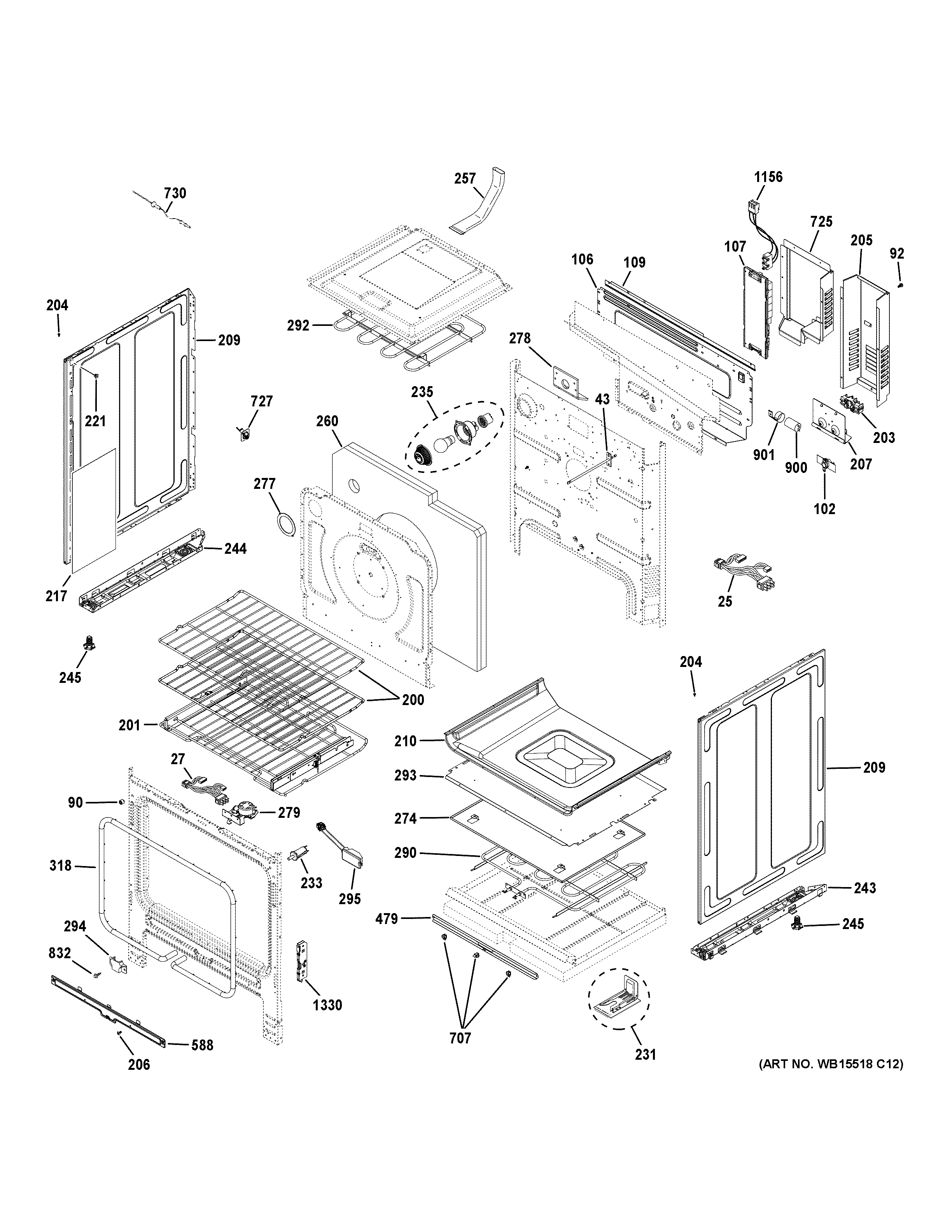

CHS90XP2M3S1 BODY PARTS

CHS90XP2M3S1 BODY PARTS

Written by

in

CHS90XP2M3S1 BODY PARTS

Products

PositionProduct
25HARNESS HIDDEN BAKE
27HARNESS LATCH
43SENSOR ASM
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
102WB24X29505 GE Oven High Limit Switch
106COVER BACK
107WB27X44151 GE Machine Control RC17 and Relay
109WB34X28912 GE Oven Backguard Component
200WB48X21508 GE Oven Rack
201WB48X20990 GE Oven Slide Rack Assembly
203WB27X31509 GE Terminal Block Assembly
204WB01X26995 GE Oven Screw 8-18 AB X 5/16
205WB34K10099 GE Oven Cover Motor
206WB01K10091 GE Oven Screw
207TERMINAL BLOCK BRACKET
209DARK DORIAN GRAY PANEL SIDE
210WB35X23552 GE Oven Bottom
217WB35X26892 GE Oven Side Panel Foil
221GEN WB02K0008
231GEN WB02K10386
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
243WB63X20215 GE Oven Support Base
244WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
257VENT
260WB35X28786 GE Oven Back Insulation
274SHIELD DRAWER TOP
277WB32K10044 GE Oven Light Gasket
278INSULATON COVER SOCKET
279WB10X24780 GE Oven Automatic Latch
290ELEMENT BAKE ASM
292BROIL ELEMENT
293GUARD INSULATION BOTTOM
294BRACKET CONNECTOR
295WB25X35355 GE Oven Side Lamp
318GASKET OVEN
479REFLECTOR FRONT
588WB34X21714 GE Front Frame Cover
707WB02K10267 GE Wire Clip
725CONTROL COVER
727WB34K10121 GE Oven Probe Receptacle & Harness
730WB20T10024 GE Oven Thermistor Probe
832WB1K5062 GE Oven Screw
900WB08K10009 GE Oven Motor Capacitor
901WB02K10172 GE Oven Capacitor Holder
1156WB18X29669 GE Jumper Harness
1330WB10X28563 GE Oven Receiver Hinge
