CHS950P2M6S1 CONTROL PANEL & COOKTOP

CHS950P2M6S1 CONTROL PANEL & COOKTOP

Written by

in

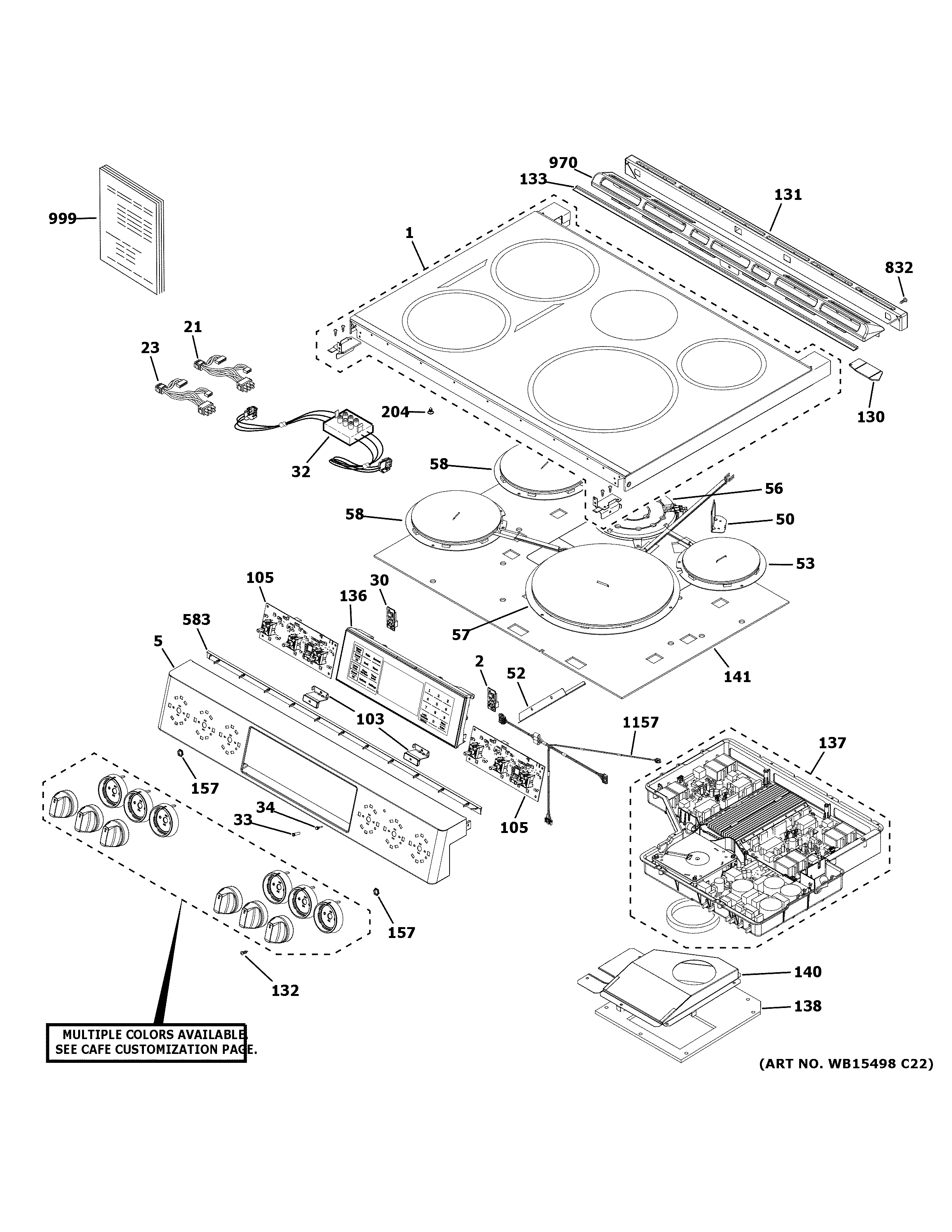

CHS950P2M6S1 CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB34X37386 GE Range Top Glass & Front Support
2WB27X33353 GE Wi-Fi Module Kit
5WB36X31623 GE Oven Stainless Steel Manifold
21WB18X31615 GE WZ Harness
23WB18X31612 GE Supplier Harness
30WB27X44806 GE BLE CAT Module Assembly
32WB18X31605 GE Induction Harness
33WB02X28779 GE Hot Surface Indicator
34WB25X28917 GE Indicator Sleeve Assembly
50WB34X28918 GE Induction Divider Assembly
52SPILL COVER LAMP
53WB30X28698 GE Induction Element 1800W
56WB30X10035 GE Oven Warmer Element Low Profile
57ELEMENT INDUCTION 3700W
58WB30X38226 GE Induction Element 2500W
103WB34X28908 GE Oven Bracket
105WB27X32505 GE Oven LED Encoder Board Kit
130WB35X41087 GE Spill Gasket
131WB07X28825 GE Oven Trim Kit
132WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
133WB35X41086 GE Rear Gasket
136WB27X45668 GE Glass Touch Board Assembly
137WB27X44506 GE Control Inducer and Gasket
138WB34X28919 GE Induction Duct Gasket
140WB34X28911 GE Duct Induction
141INSULATION INDUCTION
157WB02X28860 GE Nut
204WB01X26995 GE Oven Screw 8-18 AB X 5/16
583WB35X28743 GE Oven Range Front Gasket Assembly
832WR01X10065 GE Screw
970WB07X28817 GE Range Vent Trim
999PM QUICK OWNERS MANUAL
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
999PM WI FI INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
1157WB18X41891 GE Wire Jumper Harness
