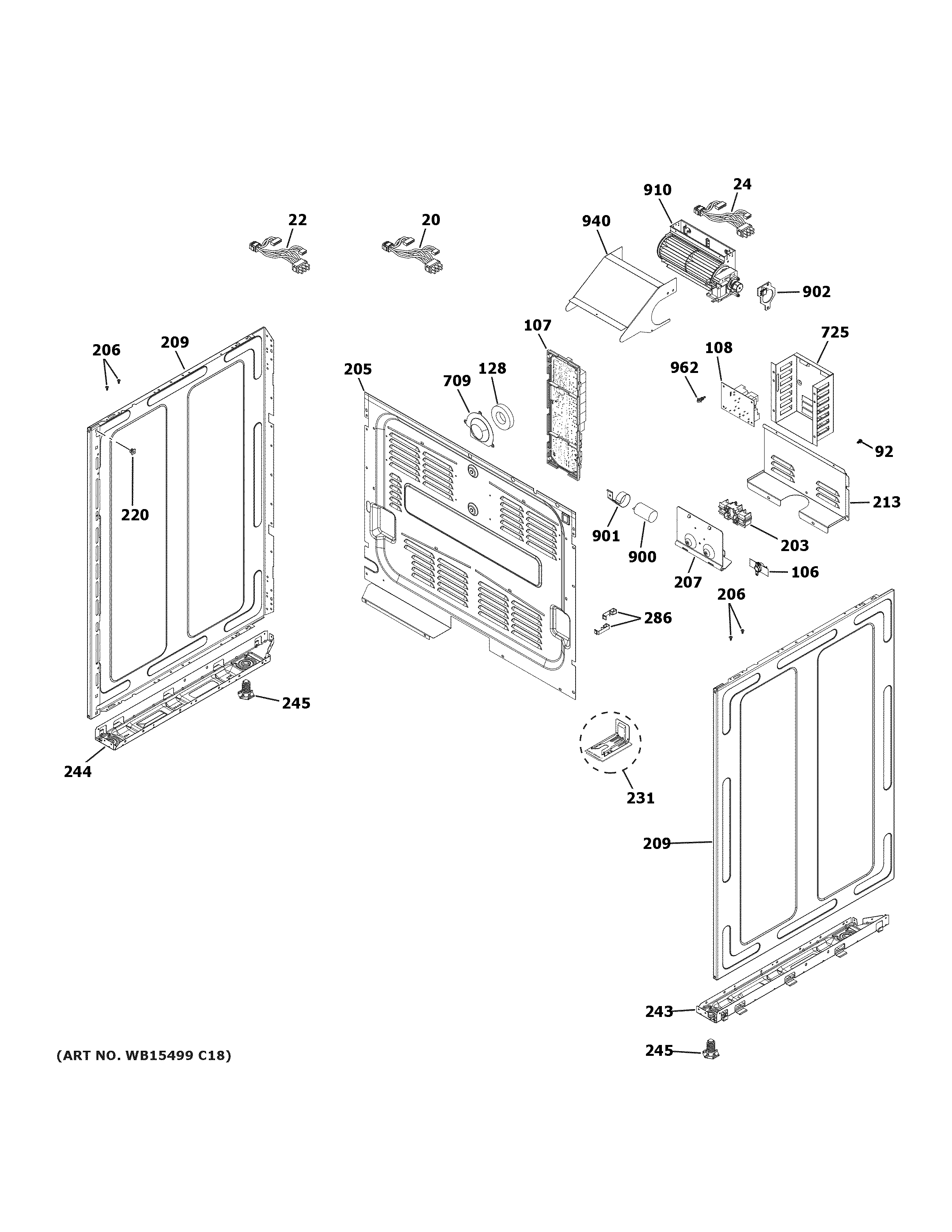

CHS950P3M2D1 BODY PARTS

CHS950P3M2D1 BODY PARTS

Written by

in

CHS950P3M2D1 BODY PARTS

Products

PositionProduct
20WB18X31599 GE Main Harness
22WB18X31942 GE DC Harness
24WB18X31604 GE Oven Blower Harness
92WB1X1261 GE Oven Screw
106WB24X29505 GE Oven High Limit Switch
107WB27X32103 GE Oven Board with Frame
108WB27X28658 GE Oven Daughter Relay Board
128LAMP INSULATION
203WB17T10011 GE Oven Terminal Block
205COVER BACK
206WB01K10091 GE Oven Screw
207TERMINAL BLOCK BRACKET
209WB56X28847 GE Oven Side Panel
213WB34X28980 GE Oven Terminal Block Cover
220GEN WB02K0008
231GEN WB02K10386
243WB63X25481 GE Oven Support Base Right
244WB63X25480 GE Oven Support Base Left
245WB02K10182 GE Oven Leveling Leg
286WB02X21679 GE Oven Wire Clip
709WB08K10018 GE Range Light Cover
725WB34X25587 GE Motor Cover
900WB08K10009 GE Oven Motor Capacitor
901WB02K10172 GE Oven Capacitor Holder
902WB27X28659 GE Oven Sensor Board
910WB26X32571 GE Range Tangential Blower
940WB34X28735 GE Oven Fan Support
962WB02T10093 GE Oven Standoff Printed Circuit Board
