CHS995SEL1SS UPPER DOOR

CHS995SEL1SS UPPER DOOR

Written by

in

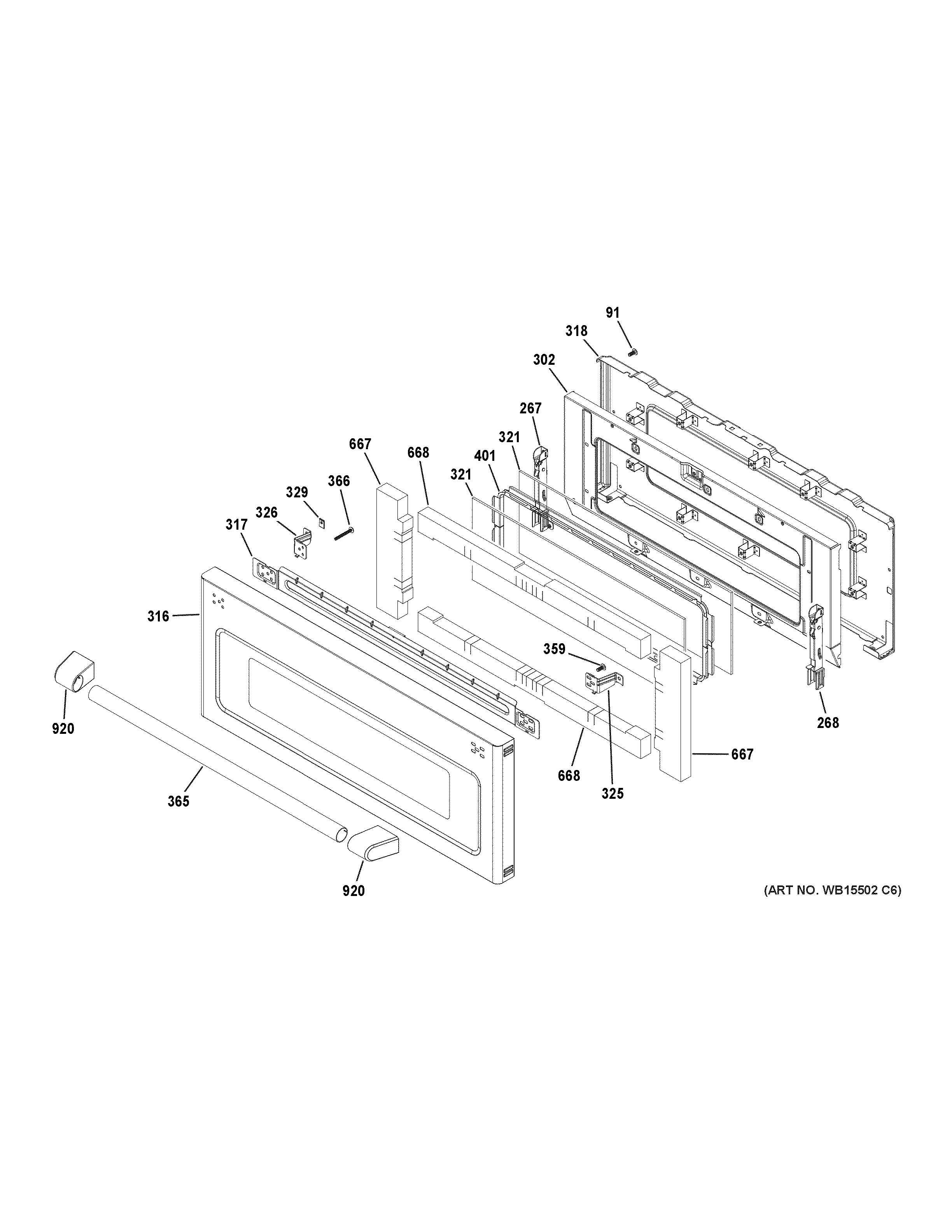

CHS995SEL1SS UPPER DOOR

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
267WB10X29636 GE Oven Left Hand Hinge Receiver
268WB10X29635 GE Oven Right Hand Receiver Hinge
302GUARD INSULATION
316WB56X28171 GE Door Assembly with Glass and Panel
317PANEL VENT BACKER
318WB34X28839 GE Oven Door Liner Assembly
321WB57K10156 GE Oven Crystal Window
325WB34X28246 GE Handle Bracket
326WB34X28245 GE Handle Bracket
329WB1K2 GE Oven Speednut
359GEN WB01K0078
365WB15X28757 GE Oven Stainless Steel Handle Tube
366WB01K10009 GE Oven Handle Mounting Screw 10-32
401WB34X28740 GE Window Frame Assembly
667WB34X21729 GE Insulation Door
668WB34X21730 GE Door Insulation
920WB34X28700 GE Oven End Cap Handle
