CHS995SEL2SS CONTROL PANEL & COOKTOP

CHS995SEL2SS CONTROL PANEL & COOKTOP

Written by

in

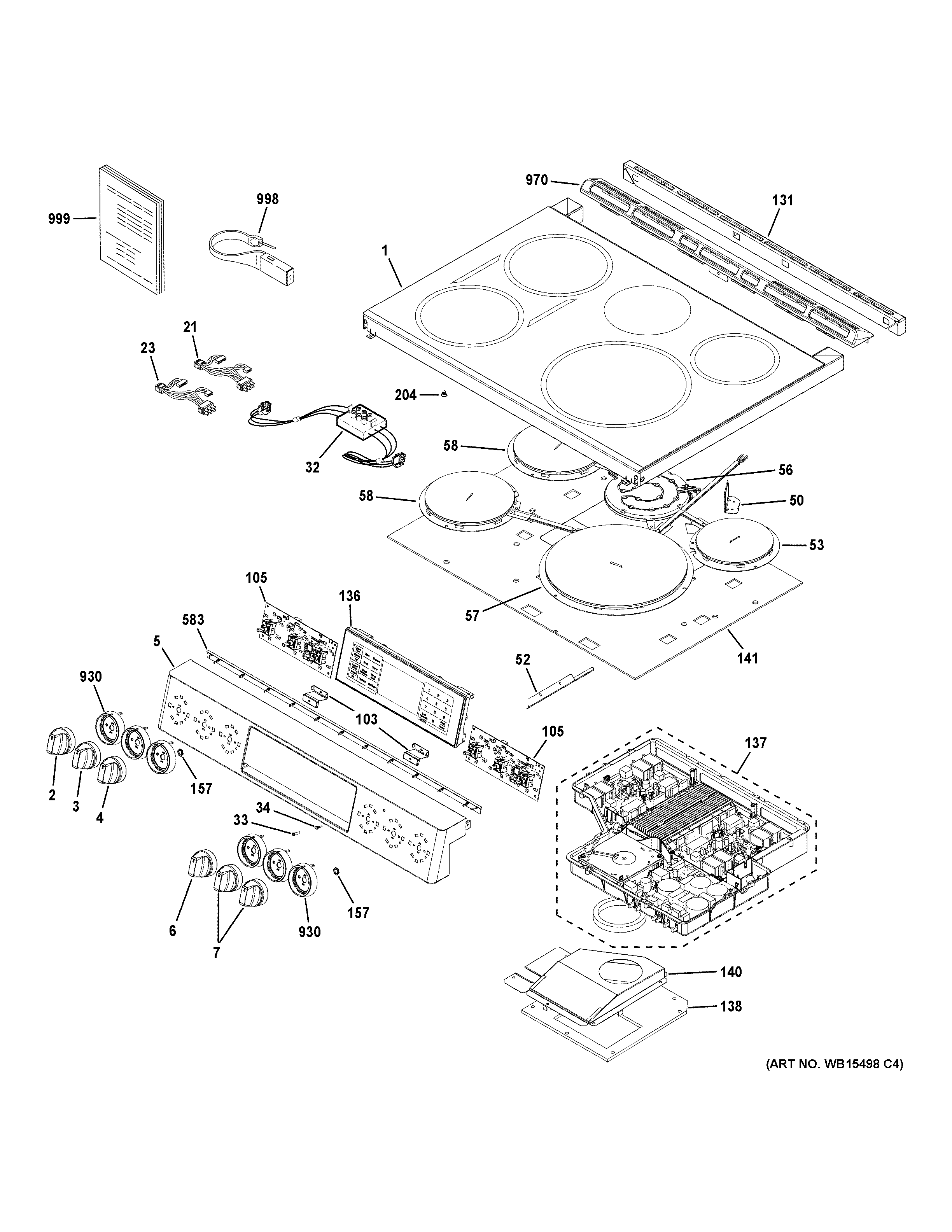

CHS995SEL2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB34X37386 GE Range Top Glass & Front Support
2WB03X28127 GE Knob Assembly
3WB03X28124 GE Knob Assembly
4WB03X28128 GE Knob Assembly
5WB36X32508 GE Stainless Steel Manifold Panel
6WB03X28121 GE Knob Assembly
7WB03X28122 GE Knob Assembly
21WB18X31615 GE WZ Harness
23WB18X31612 GE Supplier Harness
32WB18X31605 GE Induction Harness
33WB02X28779 GE Hot Surface Indicator
34WB25X28917 GE Indicator Sleeve Assembly
50WB34X28918 GE Induction Divider Assembly
52SPILL COVER LAMP
53WB30X28698 GE Induction Element 1800W
56WB30X10035 GE Oven Warmer Element Low Profile
57ELEMENT INDUCTION 3700W
58WB30X38226 GE Induction Element 2500W
103WB34X28908 GE Oven Bracket
105WB27X29029 GE Oven Knob Kit Panelization
131WB07X28824 GE Oven Trim Kit
136WB56X28191 GE Range Glass and Touch Board Assembly
137WB27X30357 GE Oven Control Indicator & Gasket
138WB34X28919 GE Induction Duct Gasket
140WB34X28911 GE Duct Induction
141INSULATION INDUCTION
157WB02X28860 GE Nut
204WB01X26995 GE Oven Screw 8-18 AB X 5/16
583WB35X28743 GE Oven Range Front Gasket Assembly
930WB03X31674 GE Brushed Stainless Light Knob
970WB07X28817 GE Range Vent Trim
998WB24X30408 GE Cooking Probe with Dong Precision
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM QUICK GUIDE
999PM WI FI INSTRUCTIONS
999PM MANUAL MINI AND WD ASM
