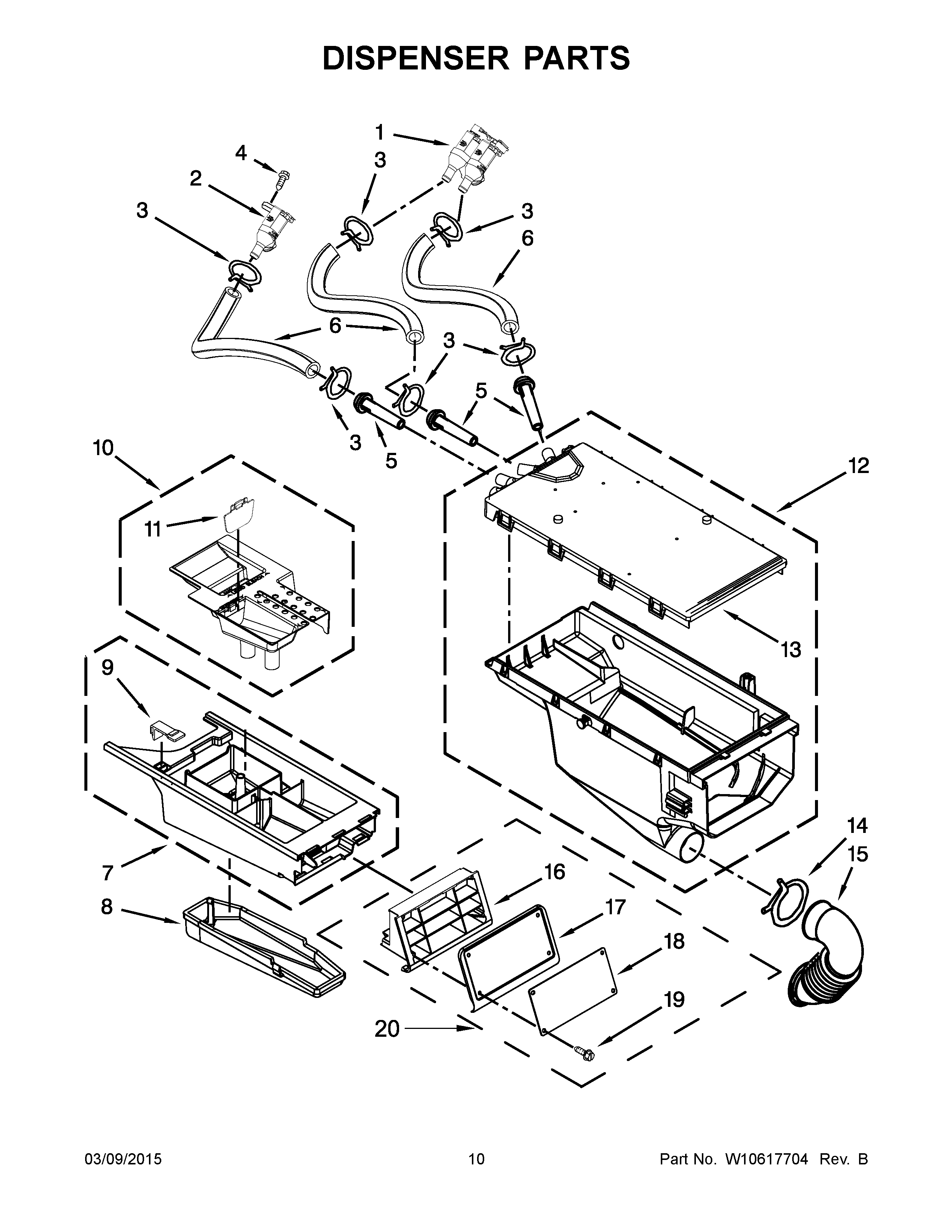

CHW8990BW0 06 – DISPENSER PARTS

Products

Position	Product
1	WPW10212596 Whirlpool Washer Inlet Valve
2	WPW10212598 Whirlpool Valve
3	WP596669 Whirlpool Hose Clamp
4	WP8540282 Whirlpool Screw
5	WP8183181 Whirlpool Nozzle
6	W10803052 Whirlpool Hose
7	W10395619 Whirlpool Washer Dispenser Drawer
8	WP8540399 Whirlpool Cover Assembly
9	WPW10198458 Whirlpool Retainer
10	W10433390 Whirlpool Dispenser
11	WPW10298953 Whirlpool Door Assembly
12	W10364594 Whirlpool Dispenser
13	WPW10212604 Whirlpool Plate
14	W11622908 Whirlpool Dishwasher Clamp
15	W11366227 Whirlpool Washer Dispenser Hose
16	WPW10137432 Whirlpool Handle Assembly
17	WPW10137460 Whirlpool Cover
18	FASCIA/OVERLAY, DRAWER
19	WPW10137456 Whirlpool Screw
20	W10623600 Whirlpool Handle
