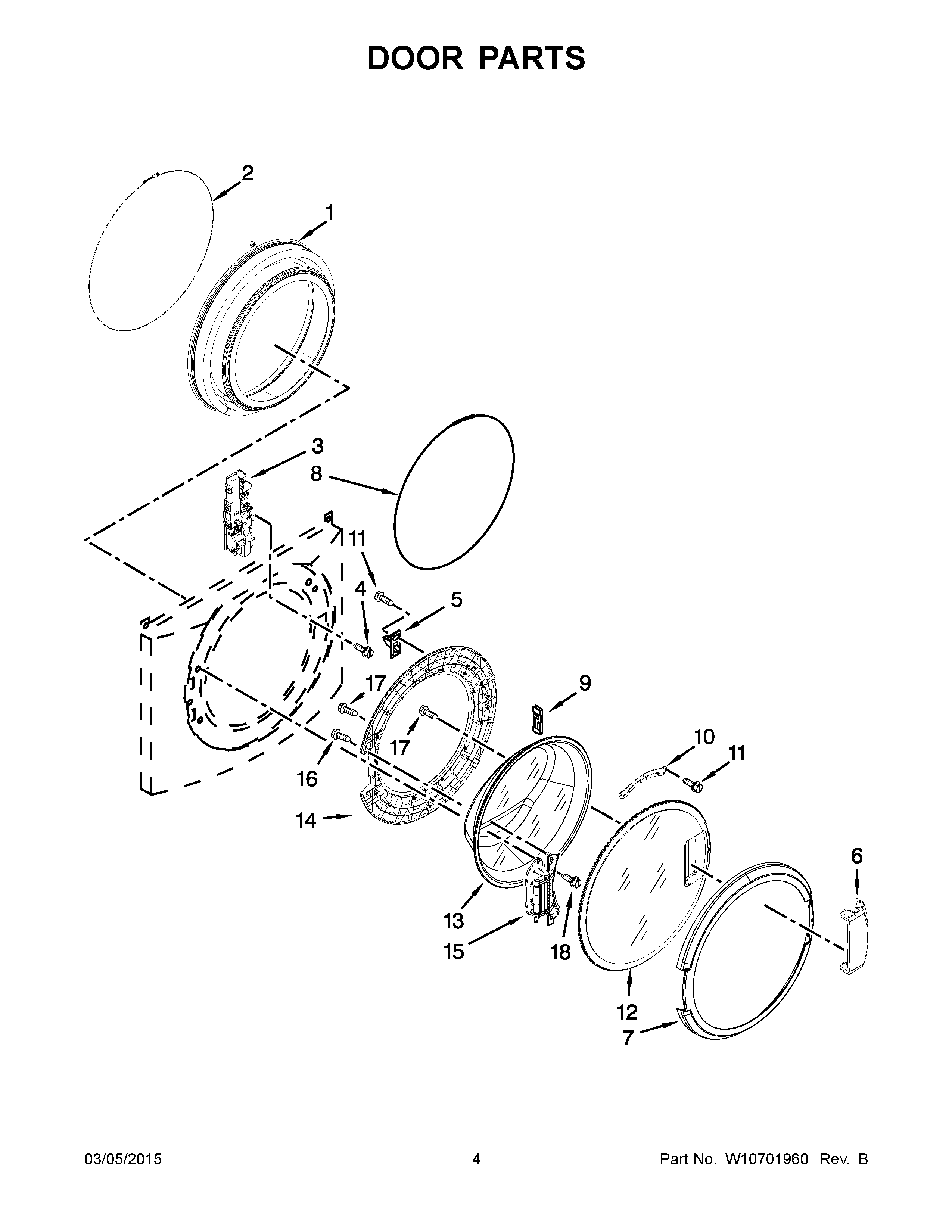

CHW8990CW0 03 – DOOR PARTS

Products

Position	Product
1	W11222077 Whirlpool Bellow Assembly
2	WP8540108 Whirlpool Boot Spring Clamp
3	WPW10375379 Whirlpool Latch Assembly
4	WP8540725 Whirlpool Screw Assembly
5	WP8540221 Whirlpool Door Strike Assembly
6	WPW10112925 Whirlpool Handle
8	W11032829 Whirlpool Clamp Assembly
9	WP8540115 Whirlpool Clamp
10	W11665946 Whirlpool Clamp
11	W11230114 Whirlpool Screw Assembly
12	FRAME, DOOR FRONT ASSEMBLY
13	WPW10388315 Whirlpool Glass Door
15	WPW10198417 Whirlpool Hinge Assembly
16	WP8181660 Whirlpool Screw
17	WP8540282 Whirlpool Screw
18	WP489442 Whirlpool Refrigerator Screw
