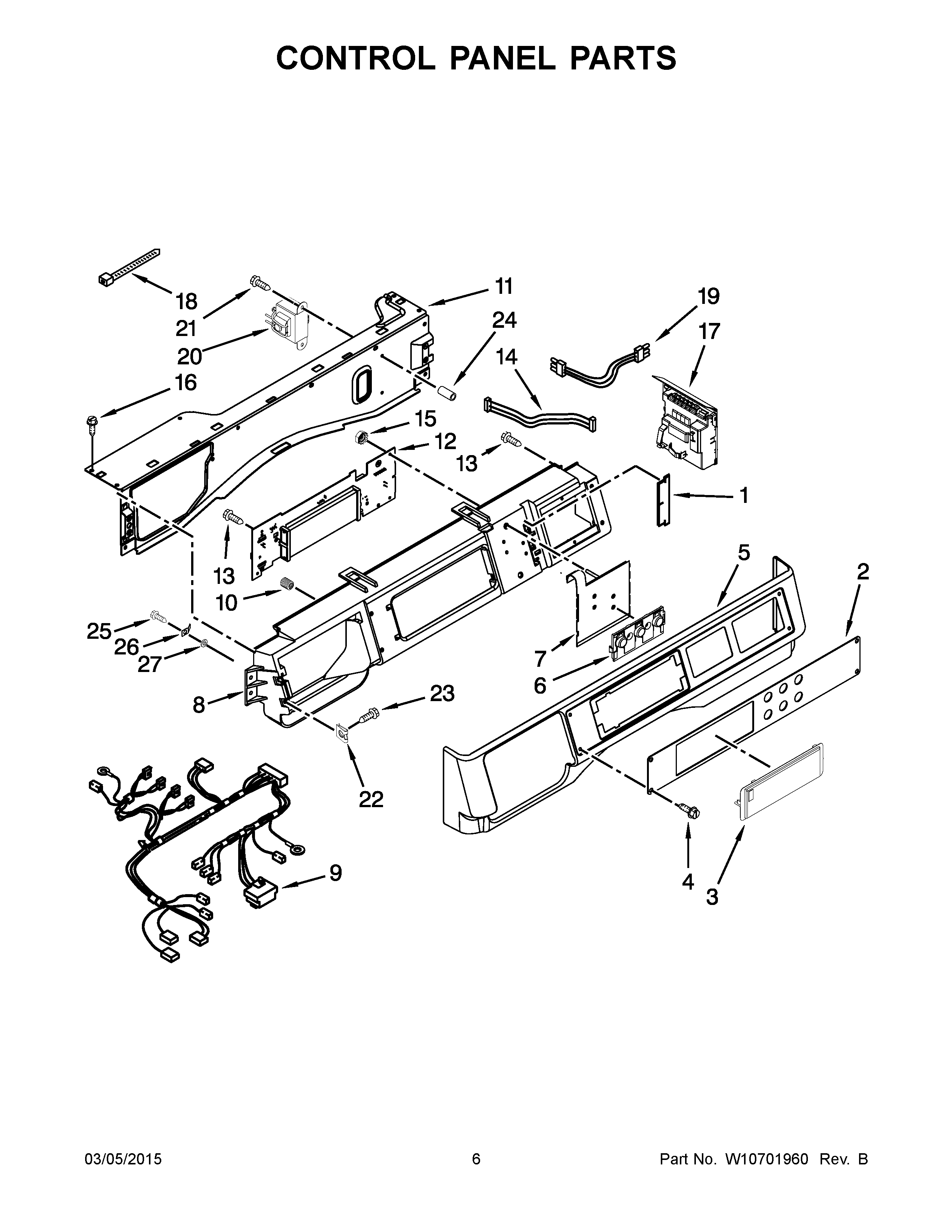

CHW8990CW0 04 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10232997 Whirlpool Wire Harness
NI	W10232996 Whirlpool Wire Harness
NI	W10179481 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1	W10187276 Whirlpool Gasket
2	W10607836 Whirlpool Overlay
3	WPW10267645 Whirlpool Cover Assembly
4	WPW10137457 Whirlpool Screw
5	W10779084 Whirlpool Console
6	PUSH BUTTON
7	WPW10135255 Whirlpool Switch
8	W11028369 Whirlpool Console
9	W10298333 Whirlpool Wire Harness
10	WPW10189313 Whirlpool Insert
11	BRACKET, CONSOLE
12	WPW10679198 Whirlpool M Electronic Control Board
13	489136 Whirlpool Refrigerator Screw
14	W10155150 Whirlpool Wire Harness
15	WPW10139046 Whirlpool Nut
16	WP489442 Whirlpool Refrigerator Screw
17	WPW10732327 Whirlpool Electronic Control Board
18	WP2205813 Whirlpool Refrigerator Wire Tie
19	W10837604 Whirlpool Wire Harness
20	WPW10131839 Whirlpool Transformer Assembly
21	8540329 Whirlpool Screw
22	WP9781235 Whirlpool Clip
23	WPW10131119 Whirlpool Screw
24	W10018050 Whirlpool Cap Assembly
25	WP488234 Whirlpool Air Conditioner Screw
26	TAB, GROUNDING
27	W10189075 Whirlpool Washer
