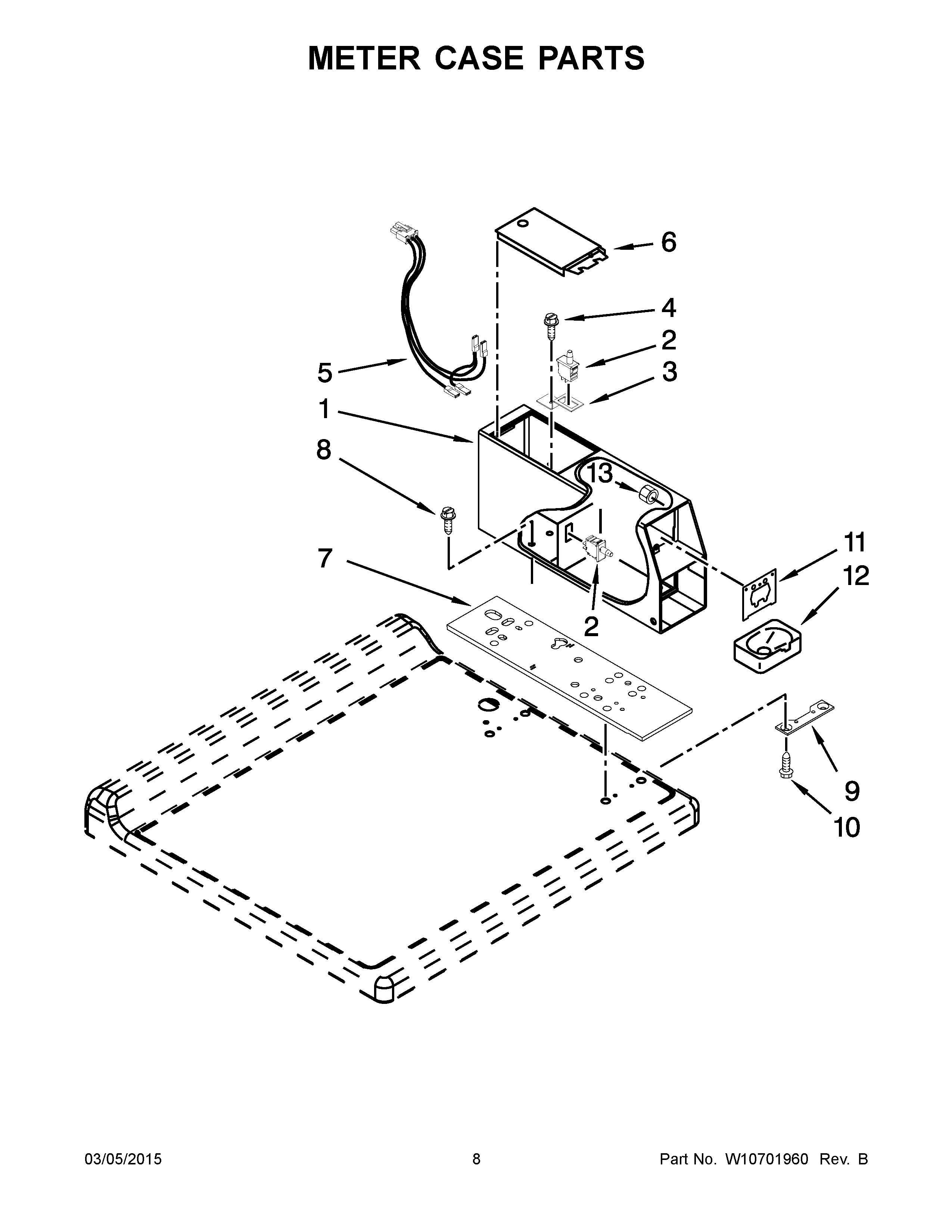

CHW8990CW0 05 – METER CASE PARTS

Products

Position	Product
1	WPW10171132 Whirlpool Case
2	WPW10131838 Whirlpool Voltage Switch
4	WPW10139210 Whirlpool Screw
5	W11096090 Whirlpool Wire Harness
6	W11283272 Whirlpool Washer Dryer Meter Case Access Door
7	W10137448 Whirlpool Cushion
8	W11715721 Whirlpool Screw Assembly
9	3347825 Whirlpool Plate
10	W10841059 Whirlpool Screw
11	279950 Whirlpool Funnel
12	WP385421 Whirlpool Coin Operated Laundry Funnel
13	WP3400029 Whirlpool Dishwasher Nut
