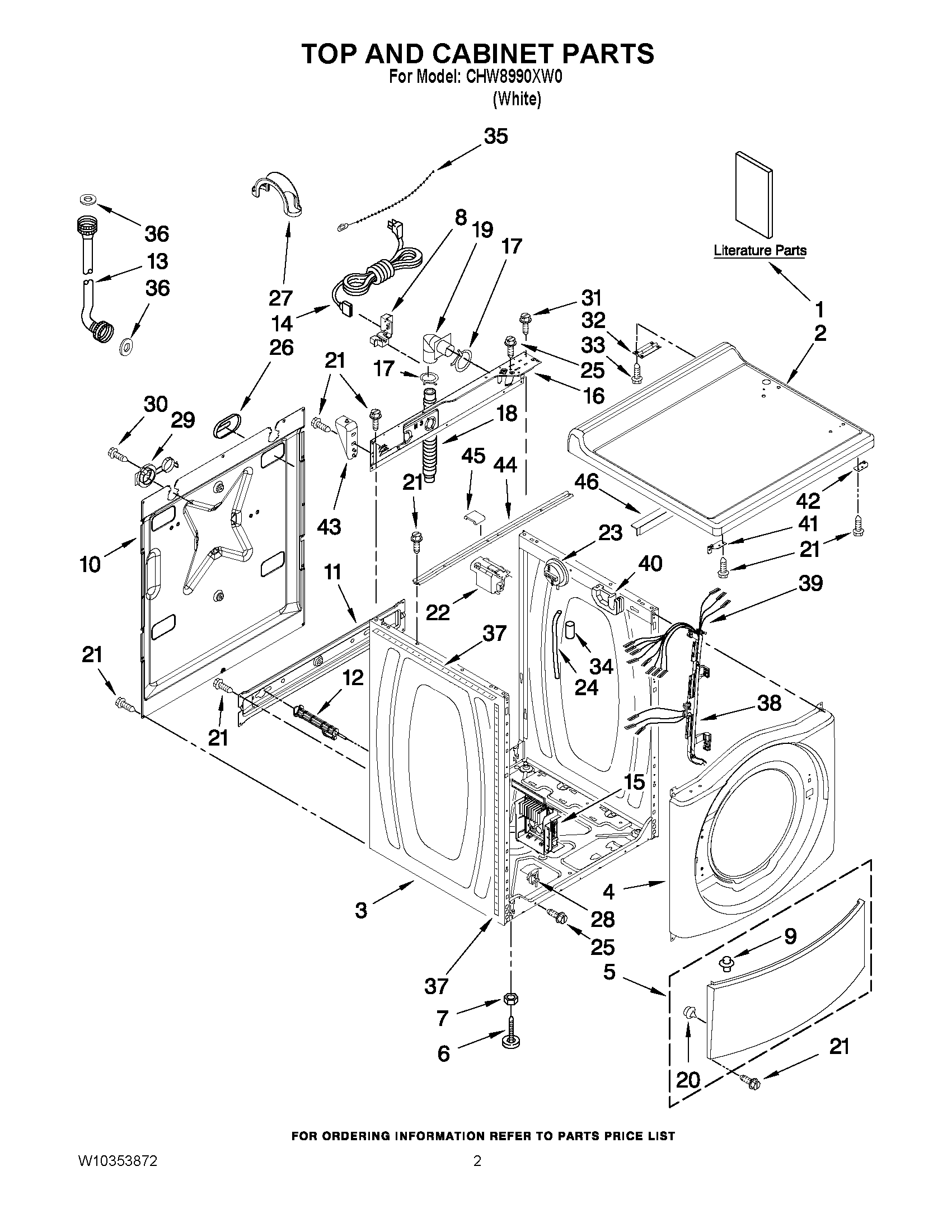

CHW8990XW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	REPAIR PARTS LIST
1	TECH SHEET (ENGLISH)
1	TECH SHEET (FRENCH)
2	WPW10137411 Whirlpool Top
3	W10198145 Whirlpool Cabinet
4	WPW10306505 Whirlpool Panel
5	WP8540664 Whirlpool Control Panel
6	W10862938 Whirlpool Leveling Feet
7	WP3359452 Whirlpool Nut
8	8182635 Whirlpool Strain Relief
9	8518891 Whirlpool Rivet
10	PANEL, REAR
11	W10189659 Whirlpool Brace
12	W10763471 Whirlpool Bolt
13	FILL HOSE 5' W/WASHER
13	WP89503 Whirlpool Washer Fill Hose
14	CORD, POWER
15	WPW10384849 Whirlpool Electronic Control Board
16	W10244560 Whirlpool Brace
17	WP356138 Whirlpool Hose Clamp
18	WPW10106460 Whirlpool Hose Assembly
19	CONNECTOR
20	238614 Whirlpool Bumper Hinge
21	WP489442 Whirlpool Refrigerator Screw
22	WPW10367632 Whirlpool Filter
23	SWITCH, PRESSURE
24	HOSE
25	8540479 Whirlpool Screw
26	WP8540268 Whirlpool Cover Assembly
27	WP8577378 Whirlpool Retainer
28	WPW10085220 Whirlpool Switch
29	W11116978 Whirlpool Grommet
30	8182201 Whirlpool Screw
31	8540329 Whirlpool Screw
32	WP8565018 Whirlpool Hinge
33	WP488627 Whirlpool Refrigerator Screw
34	SLEEVE
35	WPW10339879 Whirlpool Wire Tie
36	WP16123 Whirlpool Washer
37	Seal, Foam
38	W10200785 Whirlpool Retainer
39	W10253054 Whirlpool Wire Harness
39	W10253050 Whirlpool Wire Harness
39	8540205 Whirlpool Wire Harness
39	WPW10298334 Whirlpool Wire Harness
40	8540643 Whirlpool Bracket
41	W10137445 Whirlpool Bracket Assembly
42	W10137444 Whirlpool Bracket
43	W10137398 Whirlpool Block
44	WP8540721 Whirlpool Brace
45	WP8283273 Whirlpool Pad
46	WPW10342663 Whirlpool Support Assembly
