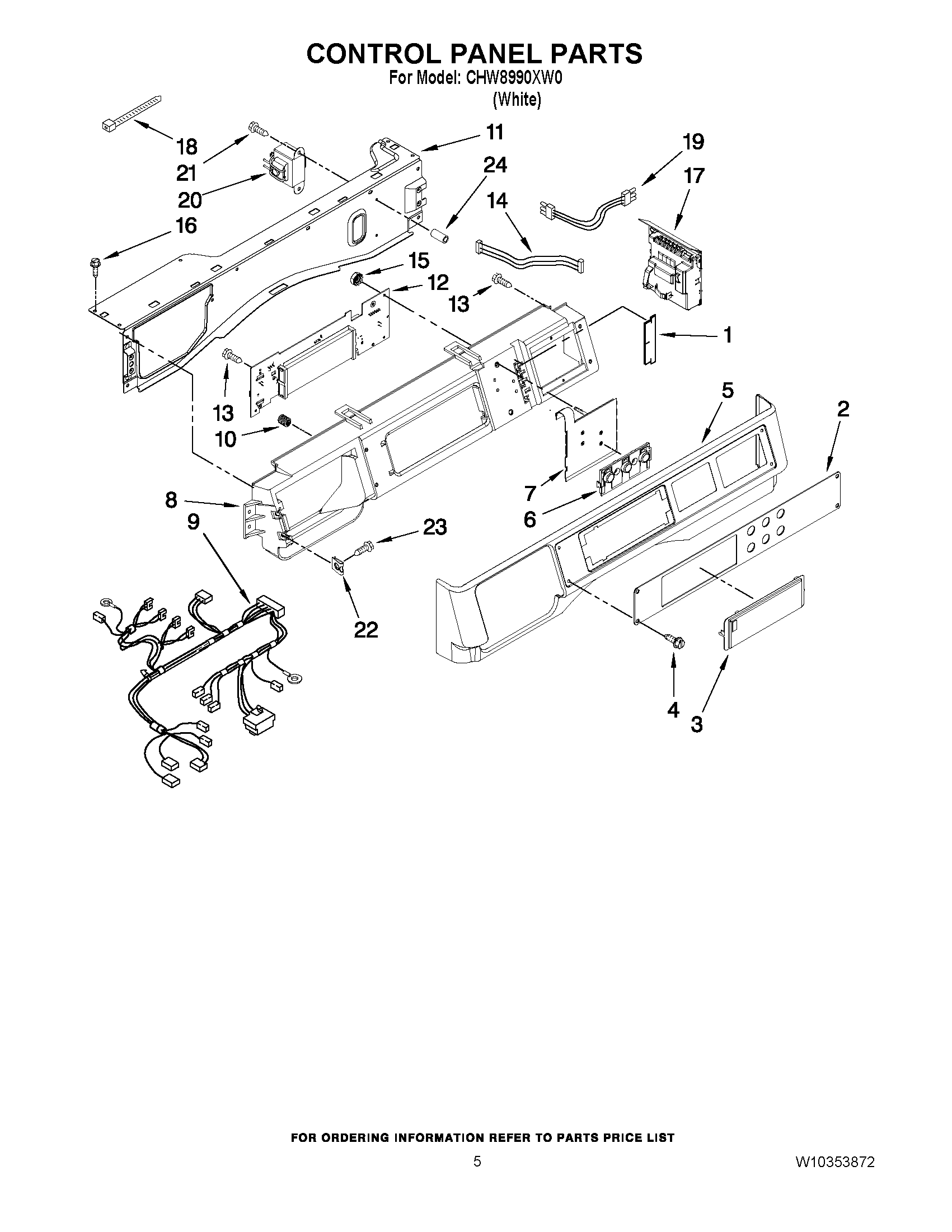

CHW8990XW0 03 – CONTROL PANEL PARTS

CHW8990XW0 03 – CONTROL PANEL PARTS

Written by

in

CHW8990XW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10187276 Whirlpool Gasket
2W10607836 Whirlpool Overlay
3WPW10267645 Whirlpool Cover Assembly
4WPW10137457 Whirlpool Screw
5W10779084 Whirlpool Console
6PUSH BUTTON
7WPW10135255 Whirlpool Switch
8W11028369 Whirlpool Console
9W10298333 Whirlpool Wire Harness
9W10179481 Whirlpool Wire Harness
9W10232996 Whirlpool Wire Harness
9W10232997 Whirlpool Wire Harness
10WPW10189313 Whirlpool Insert
11BRACKET, CONSOLE
12WPW10311190 Whirlpool Electronic Control Board
13489136 Whirlpool Refrigerator Screw
14W10155150 Whirlpool Wire Harness
15WPW10139046 Whirlpool Nut
16WP489442 Whirlpool Refrigerator Screw
17WPW10732327 Whirlpool Electronic Control Board
18WP2205813 Whirlpool Refrigerator Wire Tie
19W10837604 Whirlpool Wire Harness
20WPW10131839 Whirlpool Transformer Assembly
218540329 Whirlpool Screw
22WP9781235 Whirlpool Clip
23WPW10131119 Whirlpool Screw
24W10018050 Whirlpool Cap Assembly
