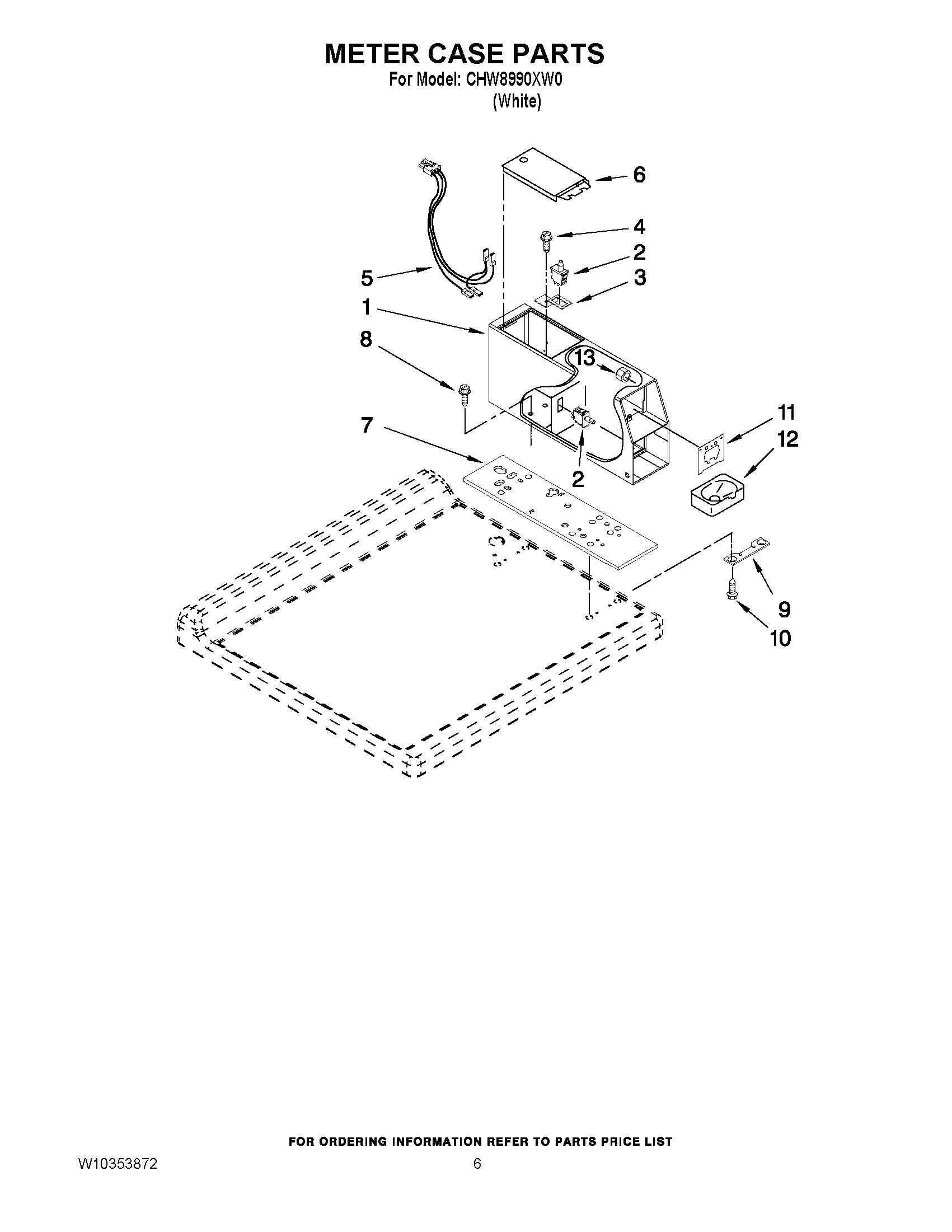

CHW8990XW0 04 – METER CASE PARTS

CHW8990XW0 04 – METER CASE PARTS

Written by

in

CHW8990XW0 04 – METER CASE PARTS

Products

PositionProduct
1WPW10171132 Whirlpool Case
2WPW10131838 Whirlpool Voltage Switch
4WPW10139210 Whirlpool Screw
5W11096090 Whirlpool Wire Harness
6W11283272 Whirlpool Washer Dryer Meter Case Access Door
7W10137448 Whirlpool Cushion
8W11715721 Whirlpool Screw Assembly
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
11279950 Whirlpool Funnel
12WP385421 Whirlpool Coin Operated Laundry Funnel
13WP3400029 Whirlpool Dishwasher Nut
