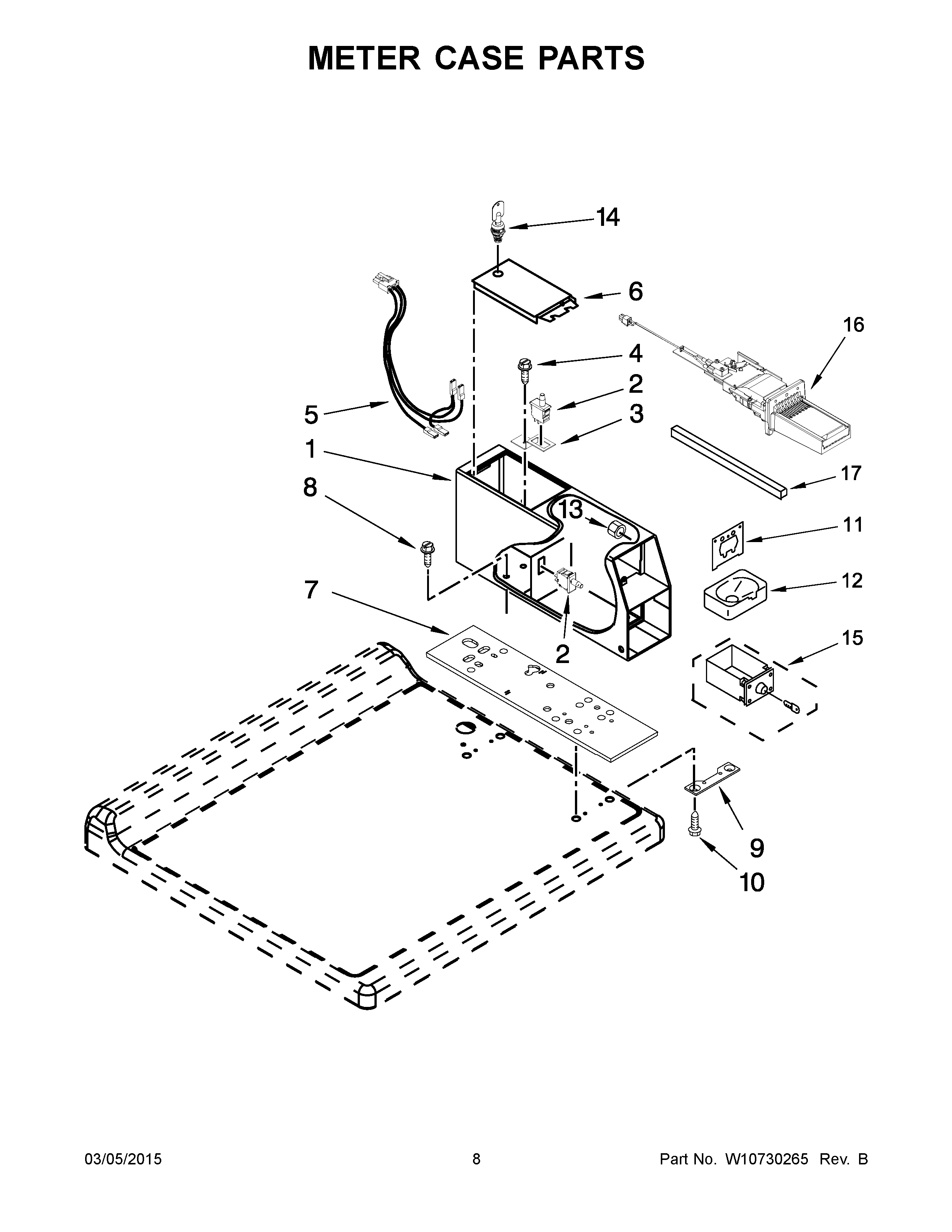

CHW9050AW0 05 – METER CASE PARTS

Written by

Products

Position	Product
1	WPW10171132 Whirlpool Case
2	WPW10131838 Whirlpool Voltage Switch
4	WPW10139210 Whirlpool Screw
5	W11096090 Whirlpool Wire Harness
6	W11283272 Whirlpool Washer Dryer Meter Case Access Door
7	W10137448 Whirlpool Cushion
8	W11715721 Whirlpool Screw Assembly
9	3347825 Whirlpool Plate
10	W10841059 Whirlpool Screw
11	279950 Whirlpool Funnel
12	WP385421 Whirlpool Coin Operated Laundry Funnel
13	WP3400029 Whirlpool Dishwasher Nut
14	W11315637 Whirlpool Lock Assembly
15	W11190039 Whirlpool Coin Box Assembly
16A	W11126319 Whirlpool Washer Dryer Coin Chute
16	W11312196 Whirlpool Coin Chute
17	WP8576635 Whirlpool Bolt
