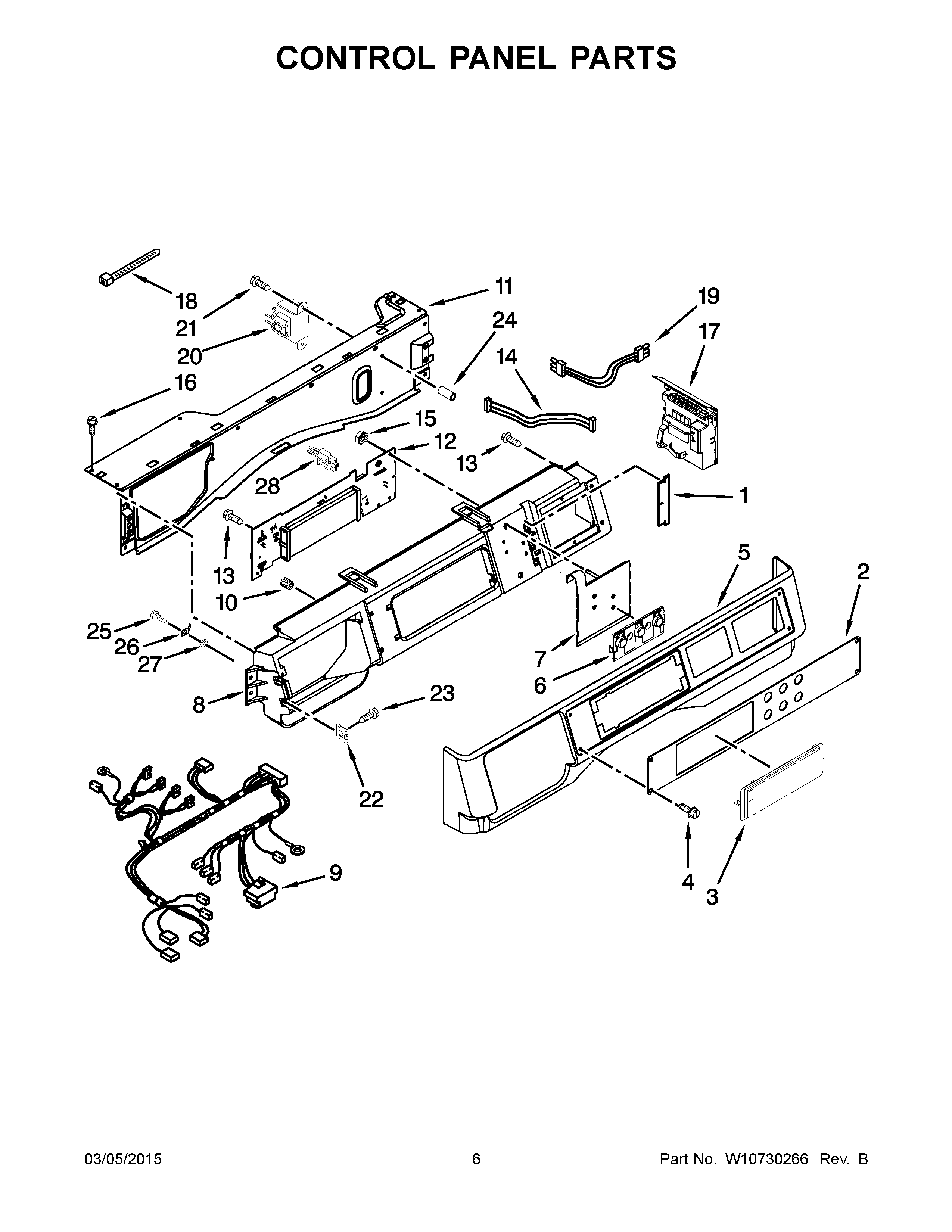

CHW9060AW0 04 – CONTROL PANEL PARTS

CHW9060AW0 04 – CONTROL PANEL PARTS

Written by

in

CHW9060AW0 04 – CONTROL PANEL PARTS

Products

PositionProduct
NICCU TO RFI FILTER (4 POLE)
NIW10232996 Whirlpool Wire Harness
NIW10232997 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1W10187276 Whirlpool Gasket
2W10607836 Whirlpool Overlay
3WPW10267645 Whirlpool Cover Assembly
4WPW10137457 Whirlpool Screw
5W10779084 Whirlpool Console
6PUSH BUTTON
7WPW10135255 Whirlpool Switch
8W11028369 Whirlpool Console
9HARNESS, WIRING (UPPER MAIN)
10WPW10189313 Whirlpool Insert
11BRACKET, CONSOLE
12WPW10726640-includeCORE Whirlpool WPW10726640 Washer Electronic Control Board + Core
13489136 Whirlpool Refrigerator Screw
14W10155150 Whirlpool Wire Harness
15WPW10139046 Whirlpool Nut
16WP489442 Whirlpool Refrigerator Screw
17WPW10732327 Whirlpool Electronic Control Board
18WP2205813 Whirlpool Refrigerator Wire Tie
19W10837604 Whirlpool Wire Harness
20WPW10131839 Whirlpool Transformer Assembly
218540329 Whirlpool Screw
22WP9781235 Whirlpool Clip
23WPW10131119 Whirlpool Screw
24W10018050 Whirlpool Cap Assembly
25WP488234 Whirlpool Air Conditioner Screw
26TAB, GROUNDING
27W10189075 Whirlpool Washer
28W11129439 Whirlpool Wire Harness
