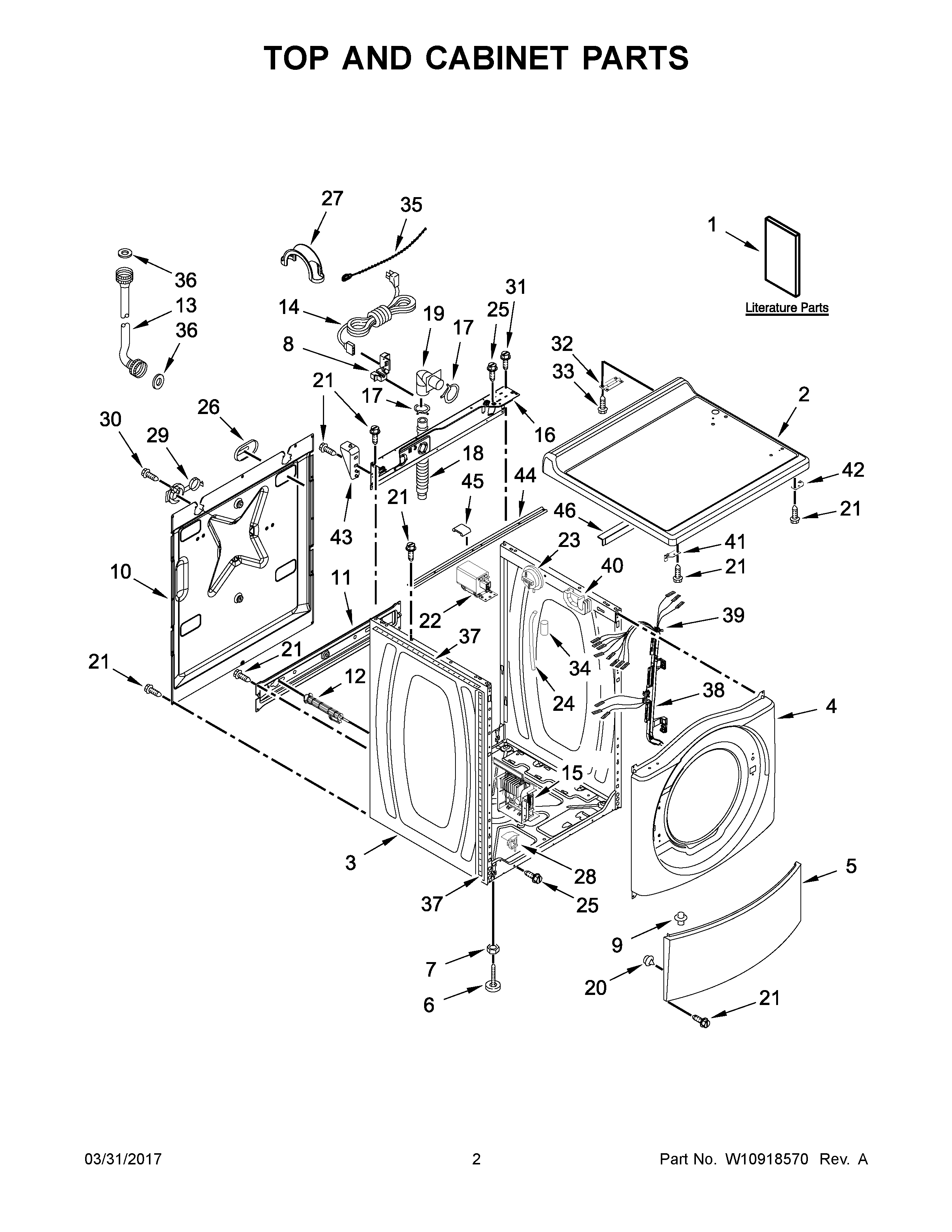

CHW9150GW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1ATECH SHEET
1INSTALLATION INSTRUCTIONS
1BQUICK START GUIDE
2WPW10137411 Whirlpool Top
3W10198145 Whirlpool Cabinet
4WPW10306505 Whirlpool Panel
5WP8540664 Whirlpool Control Panel
6W10862938 Whirlpool Leveling Feet
7WP3359452 Whirlpool Nut
88182635 Whirlpool Strain Relief
98518891 Whirlpool Rivet
10PANEL, REAR
11W10189659 Whirlpool Brace
12W10763471 Whirlpool Bolt
13W11085908 Whirlpool Fill Hose
14CORD, POWER
15WPW10384849 Whirlpool Electronic Control Board
16W10244560 Whirlpool Brace
17WP356138 Whirlpool Hose Clamp
18WPW10106460 Whirlpool Hose Assembly
19CONNECTOR
20238614 Whirlpool Bumper Hinge
21WP489442 Whirlpool Refrigerator Screw
22WPW10367632 Whirlpool Filter
23WPW10448876 Whirlpool Pressure Switch
24HOSE
258540479 Whirlpool Screw
26WP8540268 Whirlpool Cover Assembly
27WP8577378 Whirlpool Retainer
28WPW10085220 Whirlpool Switch
29W11116978 Whirlpool Grommet
308182201 Whirlpool Screw
318540329 Whirlpool Screw
32WP8565018 Whirlpool Hinge
33WP488627 Whirlpool Refrigerator Screw
34SLEEVE
35WPW10339879 Whirlpool Wire Tie
36WP16123 Whirlpool Washer
37SEAL, FOAM
38W10200785 Whirlpool Retainer
39CW10689498 Whirlpool Wire Harness
39BW10664395 Whirlpool Wire Harness
39ACCU TO MCU ? POWER (2 POLE)
39W11025121 Whirlpool Wire Harness
408540643 Whirlpool Bracket
41W10137445 Whirlpool Bracket Assembly
42W10137444 Whirlpool Bracket
43W10137398 Whirlpool Block
44WP8540721 Whirlpool Brace
45WP8283273 Whirlpool Pad
46WPW10342663 Whirlpool Support Assembly
47W10190263 Whirlpool Clip Assembly
