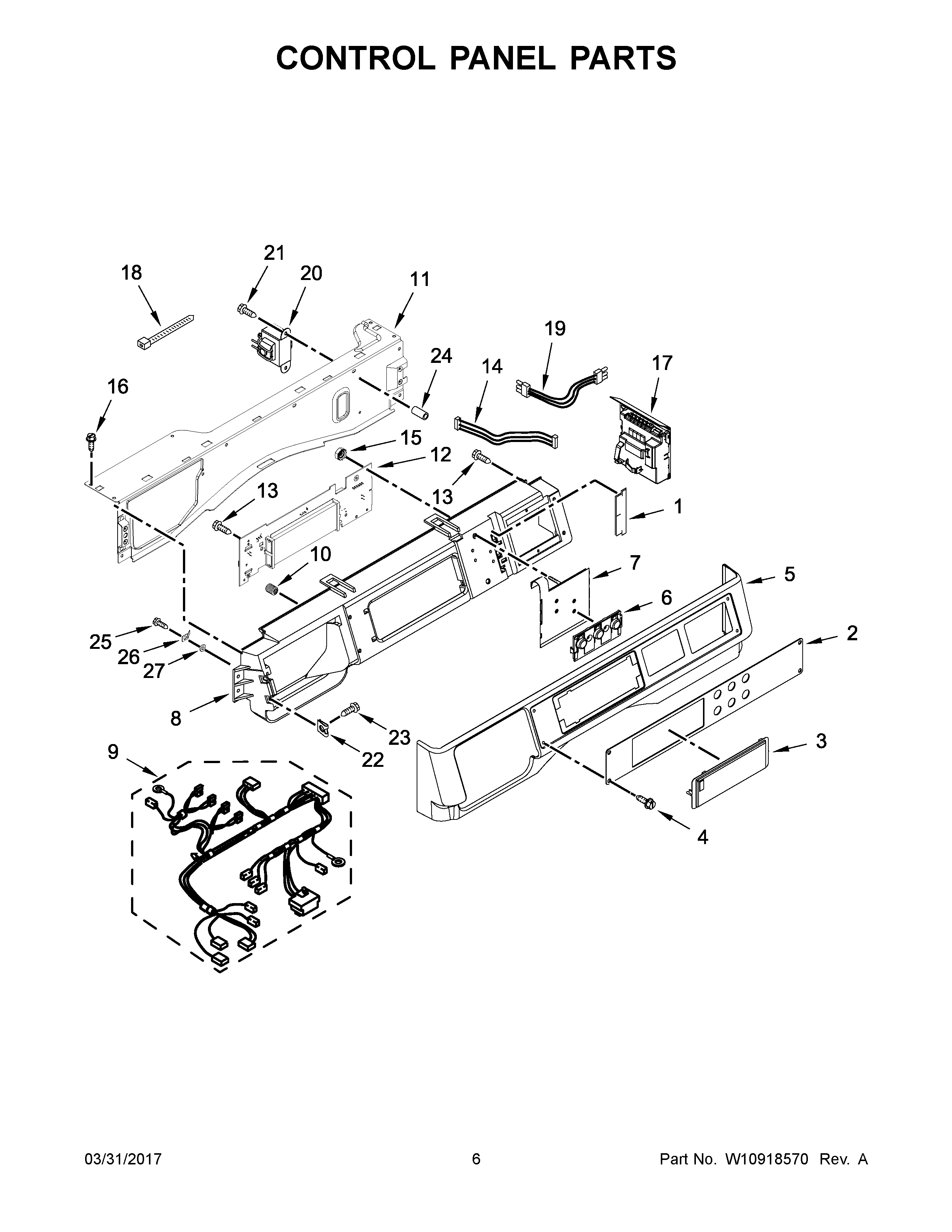

CHW9150GW0 04 – CONTROL PANEL PARTS

CHW9150GW0 04 – CONTROL PANEL PARTS

Written by

in

CHW9150GW0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1W10187276 Whirlpool Gasket
2W10607836 Whirlpool Overlay
3WPW10267645 Whirlpool Cover Assembly
4WPW10137457 Whirlpool Screw
5W10779084 Whirlpool Console
6W10803340 Whirlpool Dryer Push Button Dial Knob
7WPW10135255 Whirlpool Switch
8W11028369 Whirlpool Console
9CW10689490 Whirlpool Wire Harness
9W10664390 Whirlpool Wire Harness
9AW10689495 Whirlpool Wire Harness
9BW10689496 Whirlpool Wire Harness
10WPW10189313 Whirlpool Insert
11W10846488 Whirlpool Bracket
12W11113731 Whirlpool Electronic Control Board
13489136 Whirlpool Refrigerator Screw
14W10155150 Whirlpool Wire Harness
15WPW10139046 Whirlpool Nut
16WP489442 Whirlpool Refrigerator Screw
17W11229665 Whirlpool Electronic Control Board
18WP2205813 Whirlpool Refrigerator Wire Tie
19W11700546 Whirlpool Wire Harness
20WPW10131839 Whirlpool Transformer Assembly
218540329 Whirlpool Screw
22WP9781235 Whirlpool Clip
23WPW10131119 Whirlpool Screw
24W10018050 Whirlpool Cap Assembly
25WP488234 Whirlpool Air Conditioner Screw
26TAB, GROUNDING
27W10189075 Whirlpool Washer
