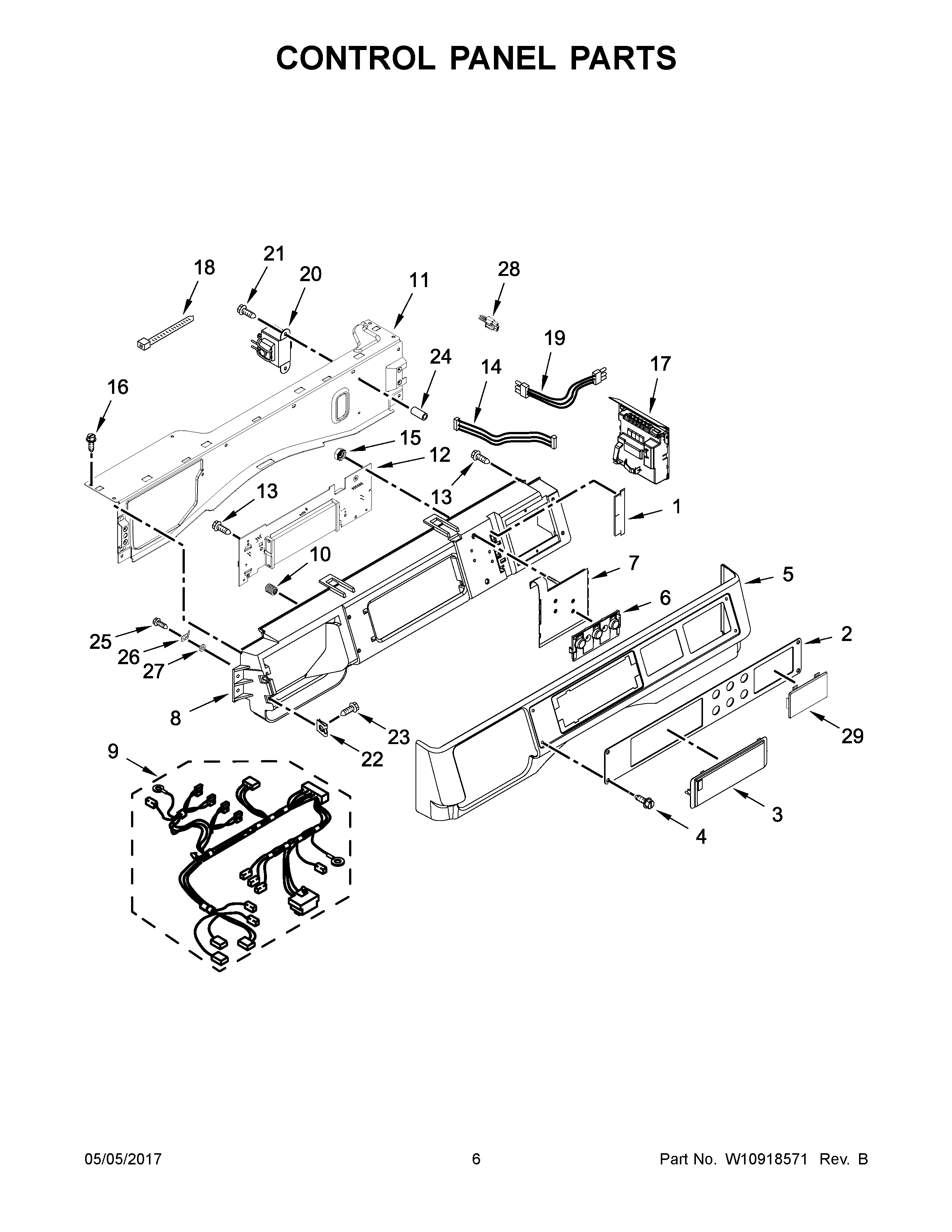

CHW9160GW0 04 – CONTROL PANEL PARTS

Products

Position	Product
1	W10187276 Whirlpool Gasket
2	FASCIA
3	WPW10267645 Whirlpool Cover Assembly
4	WPW10137457 Whirlpool Screw
5	W10779084 Whirlpool Console
6	W10803340 Whirlpool Dryer Push Button Dial Knob
7	WPW10135255 Whirlpool Switch
8	W11028369 Whirlpool Console
9	W11050439 Whirlpool Wire Harness
9B	W10689496 Whirlpool Wire Harness
9A	W10689495 Whirlpool Wire Harness
10	WPW10189313 Whirlpool Insert
11	W10846488 Whirlpool Bracket
12	W11113911-includeCORE Whirlpool W11113911 Washer Electronic Control Board + Core
13	489136 Whirlpool Refrigerator Screw
14	W10155150 Whirlpool Wire Harness
15	WPW10139046 Whirlpool Nut
16	WP489442 Whirlpool Refrigerator Screw
17	W11229665 Whirlpool Electronic Control Board
18	WP2205813 Whirlpool Refrigerator Wire Tie
19	W11700546 Whirlpool Wire Harness
20	WPW10131839 Whirlpool Transformer Assembly
21	8540329 Whirlpool Screw
22	WP9781235 Whirlpool Clip
23	WPW10131119 Whirlpool Screw
24	W10018050 Whirlpool Cap Assembly
25	WP488234 Whirlpool Air Conditioner Screw
26	TAB, GROUNDING
27	W10189075 Whirlpool Washer
28	W11129439 Whirlpool Wire Harness
29	W11131294 Whirlpool Cover
