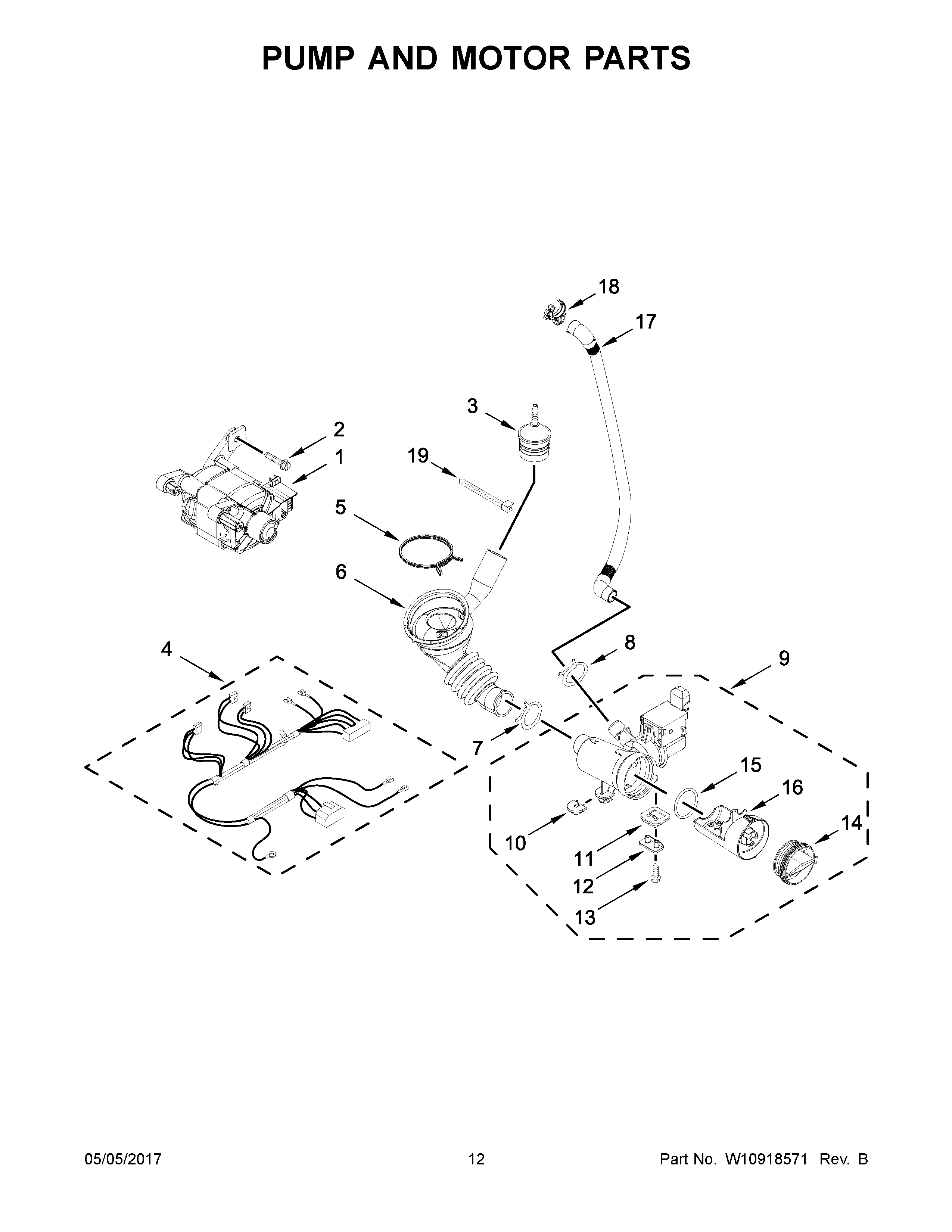

CHW9160GW0 07 – PUMP AND MOTOR PARTS

CHW9160GW0 07 – PUMP AND MOTOR PARTS

Written by

in

CHW9160GW0 07 – PUMP AND MOTOR PARTS

Products

PositionProduct
1W11191299 Whirlpool Drive Motor
28540134 Whirlpool Screw
3WPW10405608 Whirlpool Trap
4WPW10201879 Whirlpool Wire Harness
5WP696392 Whirlpool Hose Clamp
6W11366249 Whirlpool Washer Tub to Pump Hose
7WP616099 Whirlpool Clamp
8WP356138 Whirlpool Hose Clamp
9WPW10730972 Whirlpool Washer Water Pump
10W10034820 Whirlpool Grommet
11FOOT, RUBBER (LOCK)
128540033 Whirlpool Cap
138533964 Whirlpool Screw
14W10391446 Whirlpool Cap
15W10391451 Whirlpool Seal
16W10391445 Whirlpool Filter
17WPW10272563 Whirlpool Hose
188182209 Whirlpool Clip
19WPW10339879 Whirlpool Wire Tie
