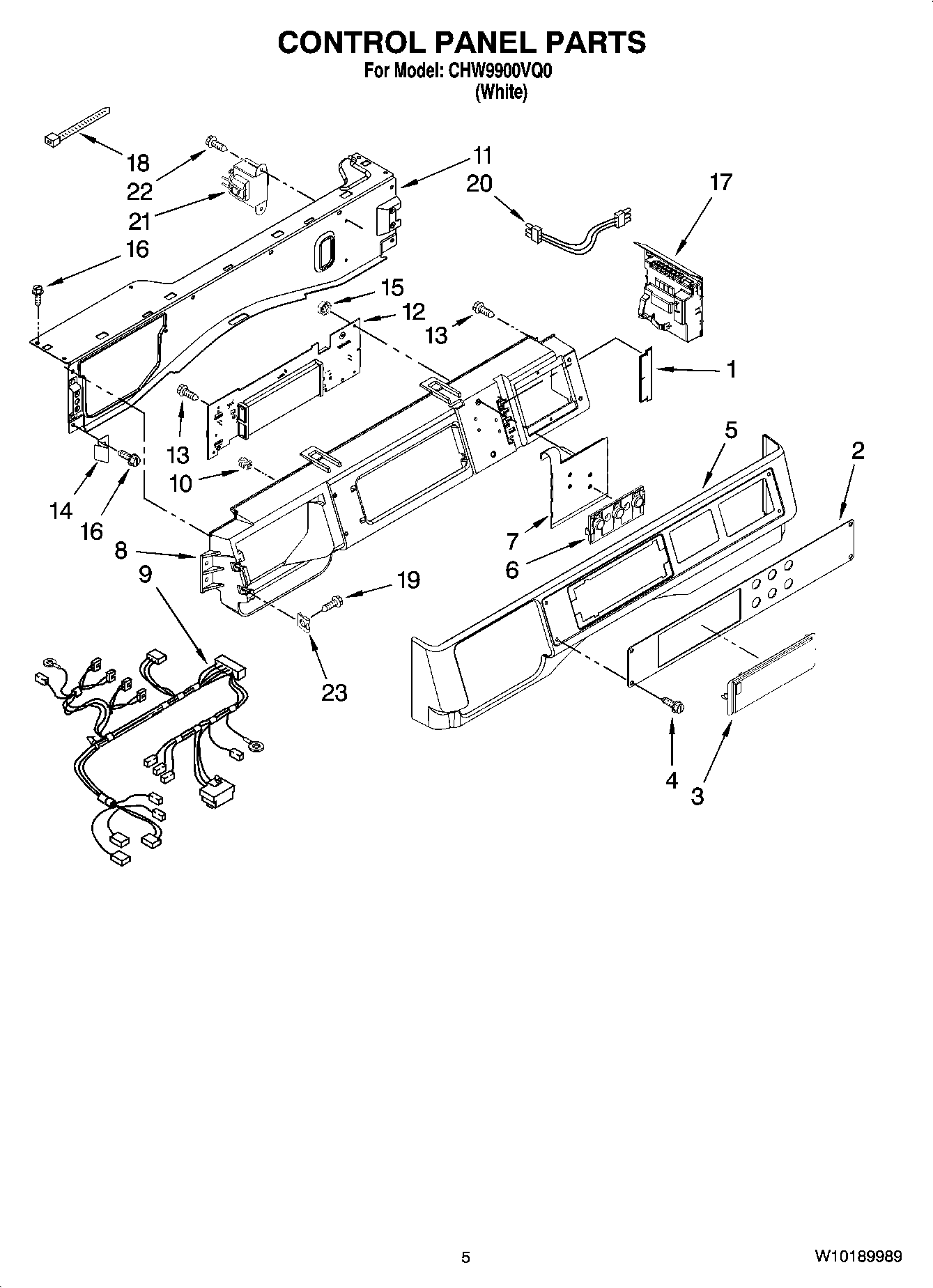

CHW9900VQ0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10187276 Whirlpool Gasket
2	W10607836 Whirlpool Overlay
3	WPW10131114 Whirlpool Cover Assembly
4	WPW10137457 Whirlpool Screw
5	W10779084 Whirlpool Console
6	PUSH BUTTON
7	WPW10135255 Whirlpool Switch
8	W11028369 Whirlpool Console
9	W10153921 Whirlpool Wire Harness
10	WPW10189313 Whirlpool Insert
11	Bracket, Console
12	User Interface
13	489136 Whirlpool Refrigerator Screw
14	Clip, Console
15	WPW10139046 Whirlpool Nut
16	WP489442 Whirlpool Refrigerator Screw
17	WPW10525360 Whirlpool Electronic Control Board
18	WP2205813 Whirlpool Refrigerator Wire Tie
19	WPW10131119 Whirlpool Screw
20	Harness, Wiring (Console UIC)
21	WPW10131839 Whirlpool Transformer Assembly
22	8540329 Whirlpool Screw
23	WP9781235 Whirlpool Clip
