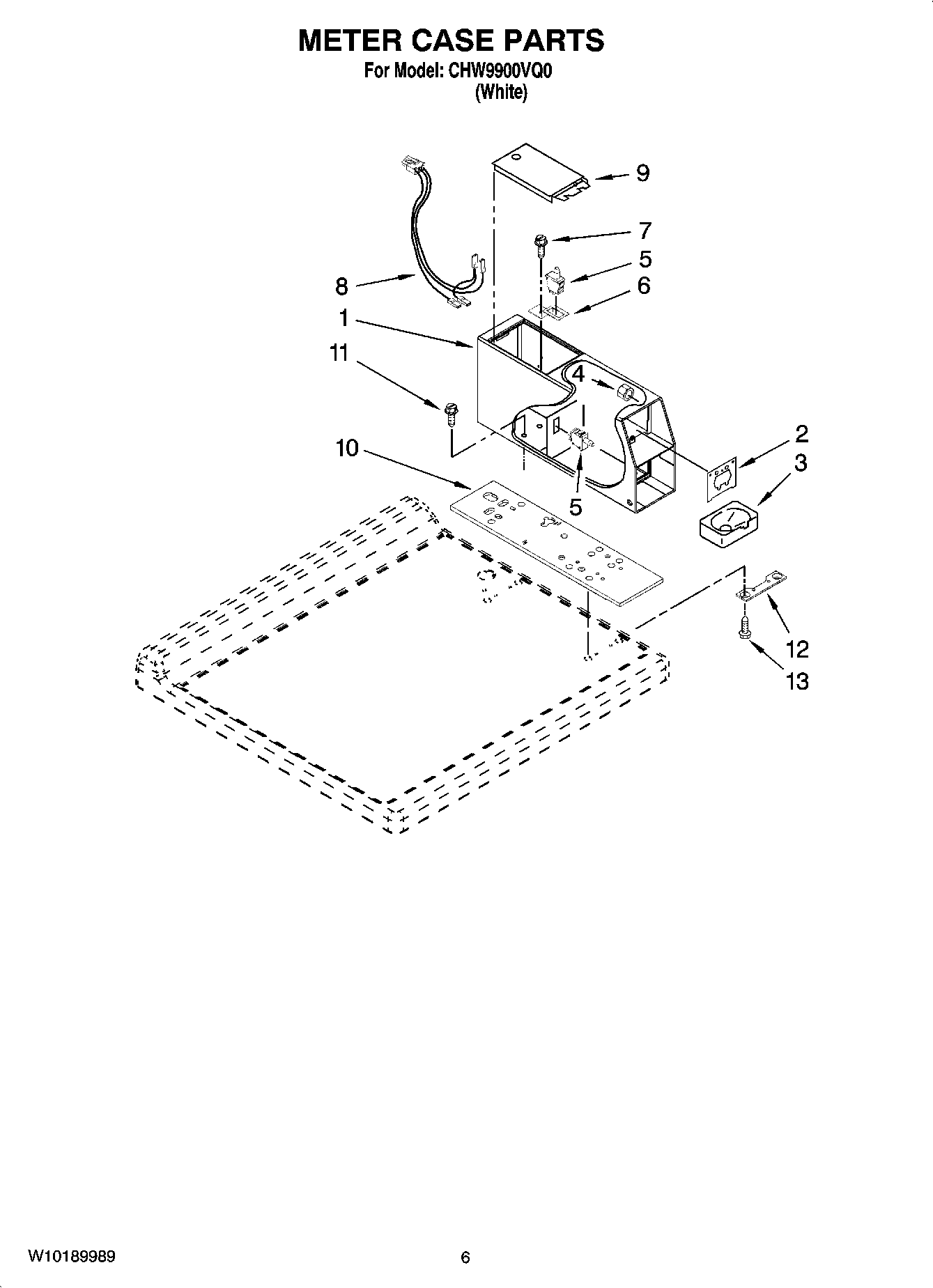

CHW9900VQ0 04 – METER CASE PARTS

Products

Position	Product
1	W10171131 Whirlpool Case Assembly
2	279950 Whirlpool Funnel
3	WP385421 Whirlpool Coin Operated Laundry Funnel
4	WP3400029 Whirlpool Dishwasher Nut
5	WPW10131838 Whirlpool Voltage Switch
7	WPW10139210 Whirlpool Screw
8	W10847806 Whirlpool Wire Harness
9	W11283272 Whirlpool Washer Dryer Meter Case Access Door
10	W10137448 Whirlpool Cushion
11	W11715721 Whirlpool Screw Assembly
12	3347825 Whirlpool Plate
13	W10841059 Whirlpool Screw
