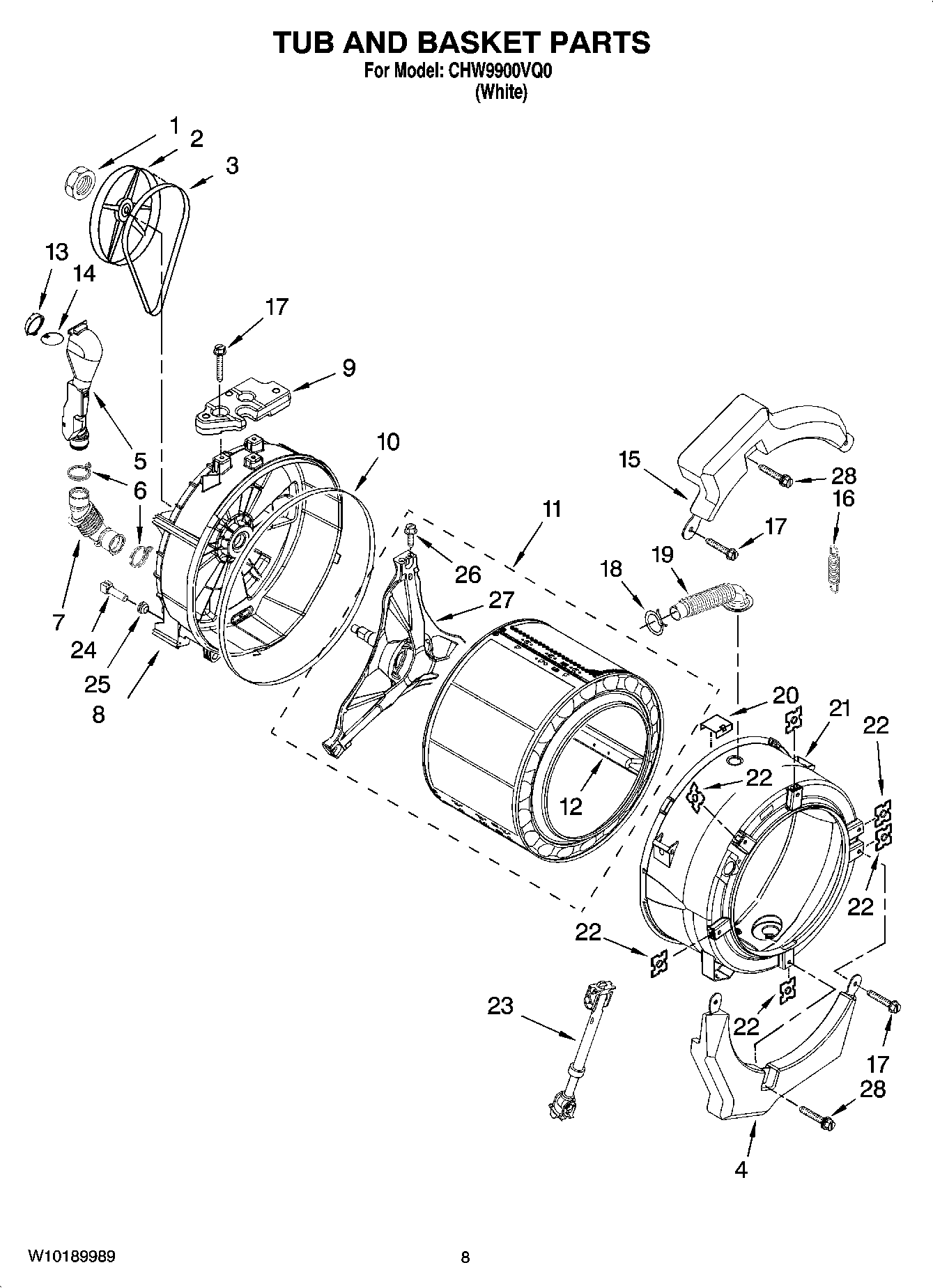

CHW9900VQ0 06 – TUB AND BASKET PARTS

CHW9900VQ0 06 – TUB AND BASKET PARTS

Written by

in

CHW9900VQ0 06 – TUB AND BASKET PARTS

Products

PositionProduct
1WPW10283361 Whirlpool Nut
2WP8540088C Whirlpool Pulley
3WPW10388418 Whirlpool Belt
4W10200297 Whirlpool Counterweight
5W10142720 Whirlpool Vent Pipe
68540010 Whirlpool Clamp
7W11398765 Whirlpool Hose
8280251 Whirlpool Outer Tub OS3
9Counterweight, Rear
10WPW10111158 Whirlpool Gasket Assembly
11Basket, Complete
12W11700547 Whirlpool Baffle Assembly
13VENTILATION, CONNECTOR
14W10142722 Whirlpool Flap Assembly
15Counterweight, Front Upper
16280159 Whirlpool Spring Assembly
17W11685857 Whirlpool Screw Assembly
183363365 Whirlpool Clamp
19WP8540015 Whirlpool Hose Assembly
20WP8540092 Whirlpool Clamp
22WP8182512 Whirlpool Nut Assembly
23WPW10163171 Whirlpool Shock Absorber
24WPW10467289 Whirlpool Sensor
25W11590578 Whirlpool Seal
26WP8540382 Whirlpool Screw
27Crosspiece Assembly
28BOLT ASSEMBLY COUNTERWEIGHT CENTER HOLE
