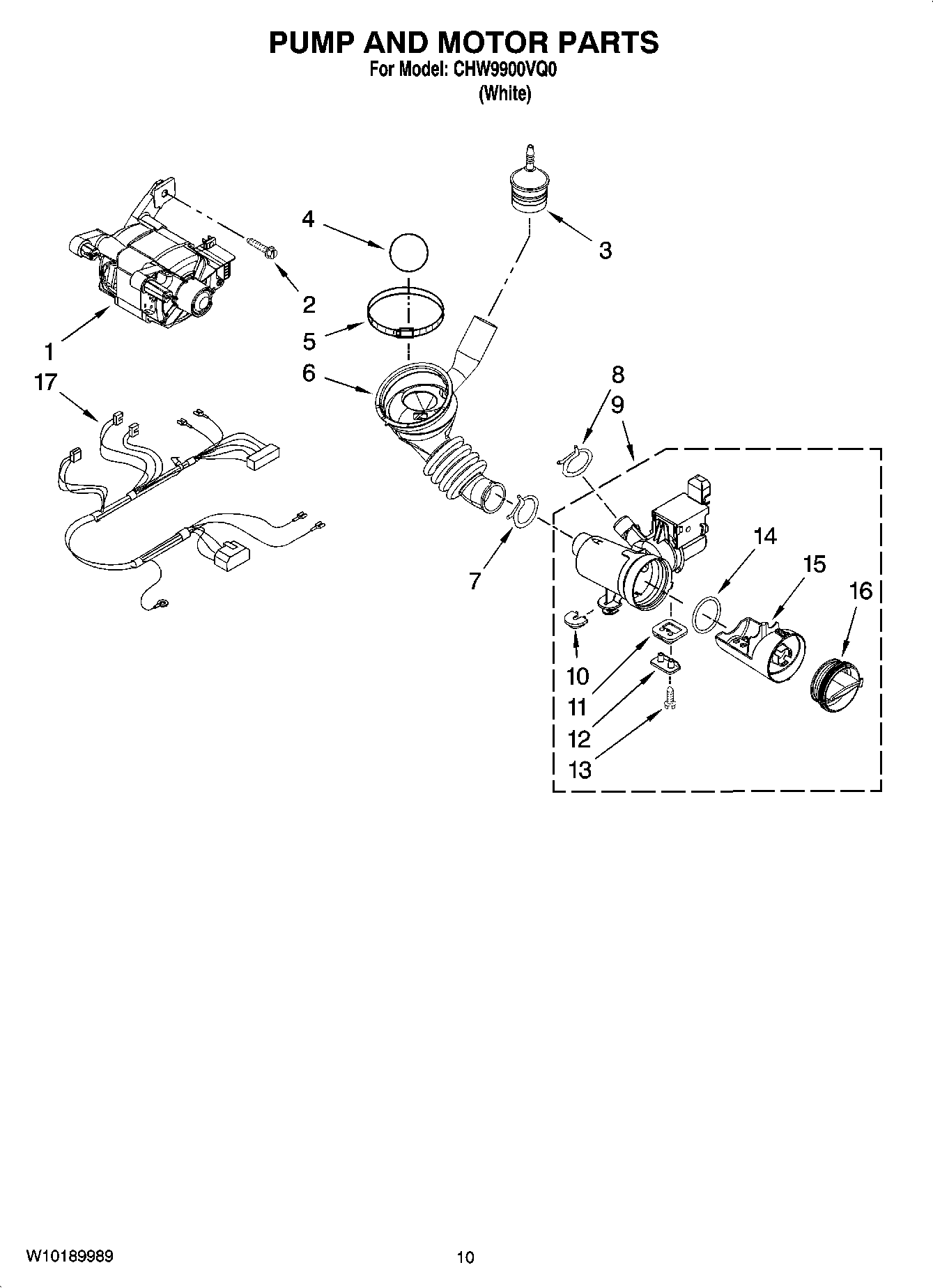

CHW9900VQ0 07 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

CHW9900VQ0 07 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

CHW9900VQ0 07 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
ACCESSORY PARTS
W10135699 Whirlpool Affresh Cleaner Tablets
285863 Whirlpool Drain Hose Extension 4'
350938 Whirlpool Spray Gun
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
1Motor, Drive
28540134 Whirlpool Screw
3WPW10405608 Whirlpool Trap
4BALL
5WP696392 Whirlpool Hose Clamp
6W11366249 Whirlpool Washer Tub to Pump Hose
7WP616099 Whirlpool Clamp
8WP356138 Whirlpool Hose Clamp
9Pump Motor Only (Not Illustrated)
9WPW10730972 Whirlpool Washer Water Pump
10W10034820 Whirlpool Grommet
11W10034830 Whirlpool Grommet
128540033 Whirlpool Cap
138533964 Whirlpool Screw
17W10166995 Whirlpool Wire Harness
