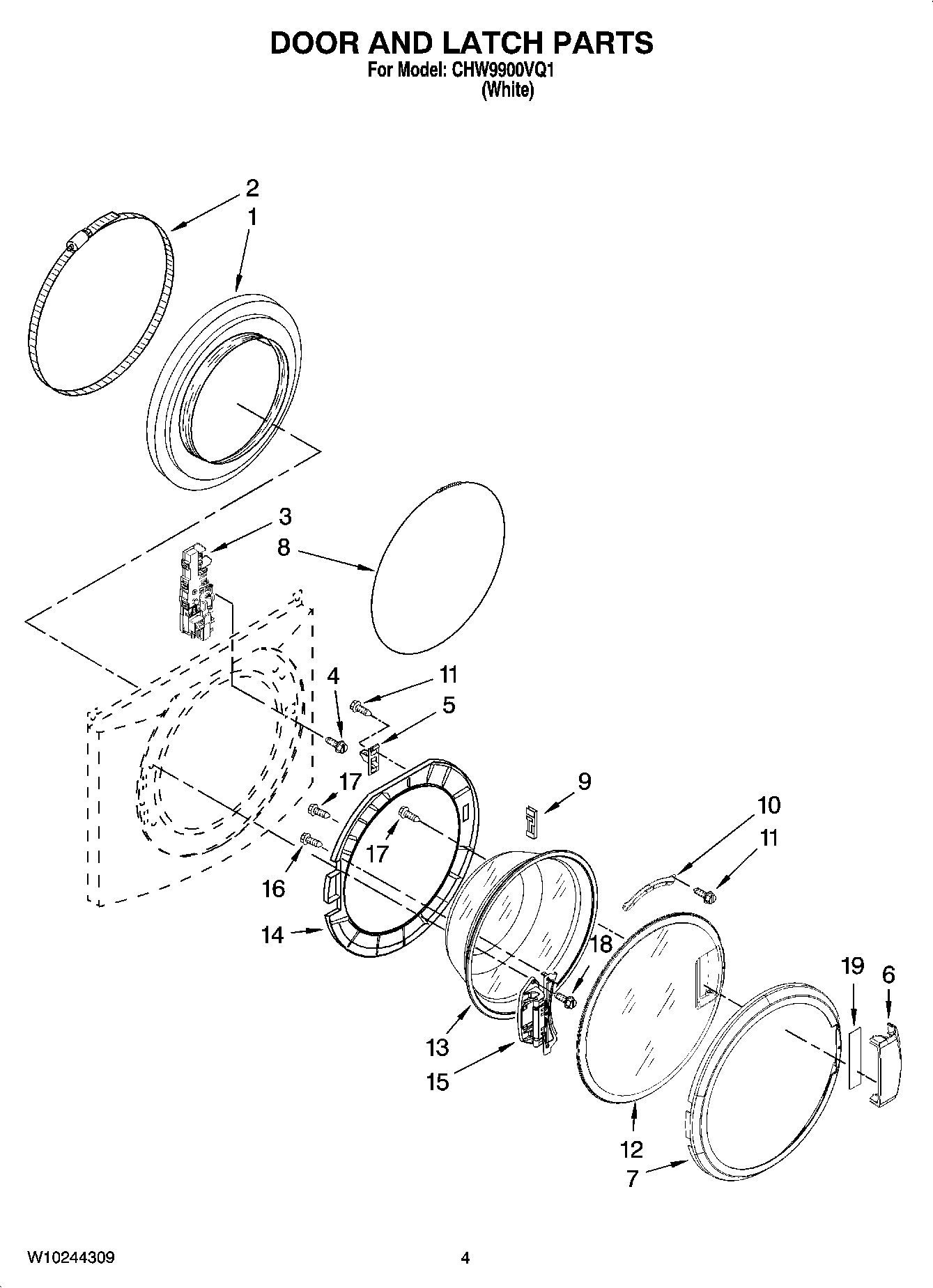

CHW9900VQ1 02 – DOOR AND LATCH PARTS

CHW9900VQ1 02 – DOOR AND LATCH PARTS

Written by

in

CHW9900VQ1 02 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10130455 Whirlpool Bellow Assembly
2WP8540108 Whirlpool Boot Spring Clamp
3WPW10375379 Whirlpool Latch Assembly
4WP8540725 Whirlpool Screw Assembly
5WP8540221 Whirlpool Door Strike Assembly
6WPW10112925 Whirlpool Handle
7WPW10112914 Whirlpool Trim Ring
8W11032829 Whirlpool Clamp Assembly
9WP8540115 Whirlpool Clamp
10W11665946 Whirlpool Clamp
11W11230114 Whirlpool Screw Assembly
12FRAME, DOOR FRONT ASSEMBLY
13WPW10388315 Whirlpool Glass Door
14WPW10138523 Whirlpool Frame
15Hinge, Door
16WP8181660 Whirlpool Screw
17WP8540282 Whirlpool Screw
18WP489442 Whirlpool Refrigerator Screw
19WPW10112927 Whirlpool Control Pad
