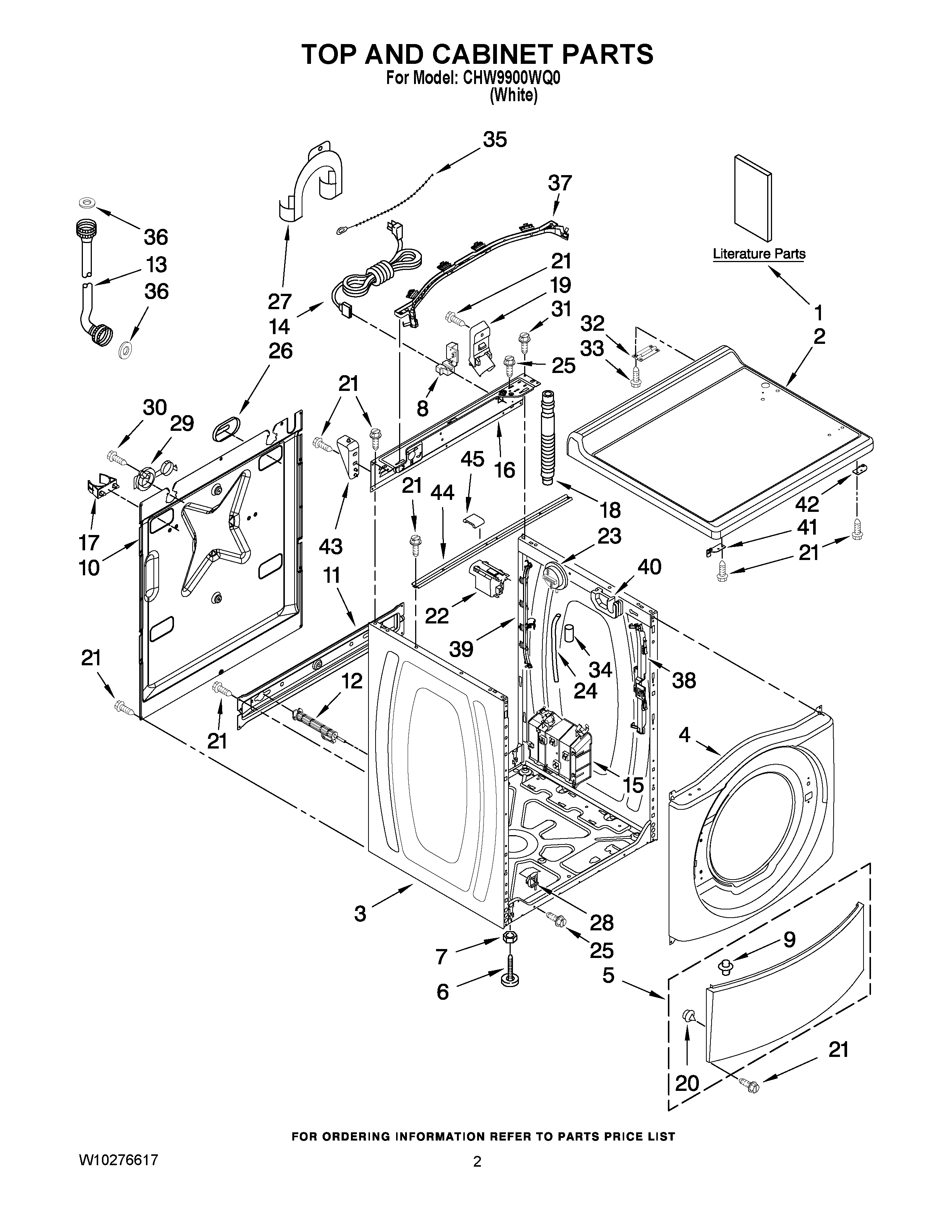

CHW9900WQ0 01 – TOP AND CABINET PARTS

CHW9900WQ0 01 – TOP AND CABINET PARTS

Written by

in

CHW9900WQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1REPAIR PARTS LIST
1INSTALLATION INSTRUCTIONS
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
2WPW10137411 Whirlpool Top
3W10410294 Whirlpool Cabinet
4WPW10306505 Whirlpool Panel
5WP8540664 Whirlpool Control Panel
6W10862938 Whirlpool Leveling Feet
7WP3359452 Whirlpool Nut
88182635 Whirlpool Strain Relief
98518891 Whirlpool Rivet
10Panel, Rear
11W10189659 Whirlpool Brace
12W10763471 Whirlpool Bolt
13FILL HOSE 5' W/WASHER
13WP89503 Whirlpool Washer Fill Hose
14CORD, POWER
15WPW10197864 Whirlpool Electronic Control Board + Core
16W10161694 Whirlpool Brace
17CLAMP, TUBE TRANSPORTATION
18WPW10114608 Whirlpool Drain Hose
19Retainer, Hose Outlet
20238614 Whirlpool Bumper Hinge
21WP489442 Whirlpool Refrigerator Screw
22WPW10367632 Whirlpool Filter
23Switch, Pressure
24HOSE
258540479 Whirlpool Screw
26WP8540268 Whirlpool Cover Assembly
27WPW10280024 Whirlpool Retainer
28WPW10085220 Whirlpool Switch
29W11116978 Whirlpool Grommet
308182201 Whirlpool Screw
318540329 Whirlpool Screw
32WP8565018 Whirlpool Hinge
33WP488627 Whirlpool Refrigerator Screw
34SLEEVE
35WPW10339879 Whirlpool Wire Tie
36WP16123 Whirlpool Washer
37W10168548 Whirlpool Retainer
38W10200785 Whirlpool Retainer
39W10168547 Whirlpool Retainer
408540643 Whirlpool Bracket
41W10137445 Whirlpool Bracket Assembly
42W10137444 Whirlpool Bracket
43W10137398 Whirlpool Block
44WP8540721 Whirlpool Brace
45WP8283273 Whirlpool Pad
