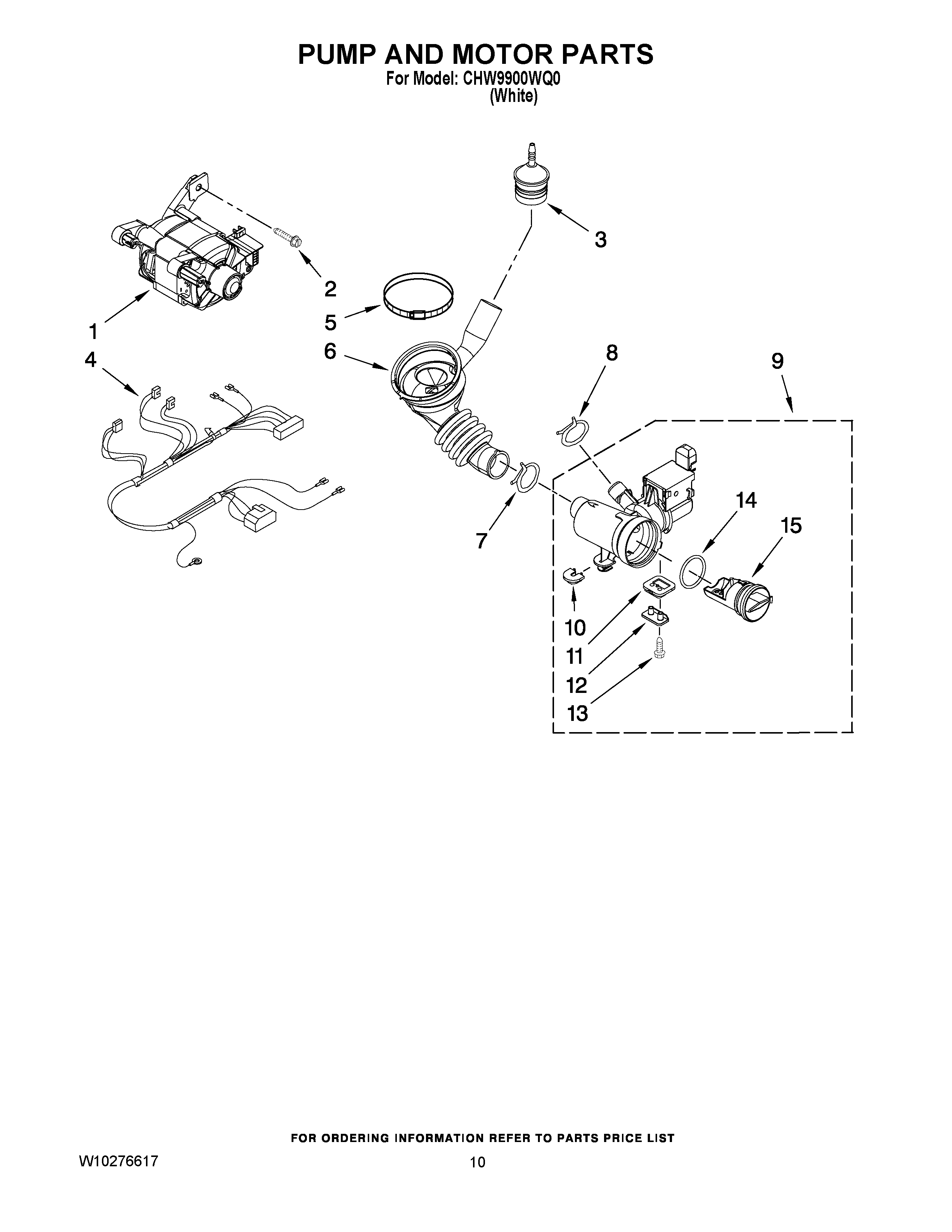

CHW9900WQ0 07 – PUMP AND MOTOR PARTS

Products

PositionProduct
NIPump Motor Only (Not Illustrated)
1Motor, Drive
28540134 Whirlpool Screw
3WPW10405608 Whirlpool Trap
4W10166995 Whirlpool Wire Harness
5WP696392 Whirlpool Hose Clamp
6W11366249 Whirlpool Washer Tub to Pump Hose
7WP616099 Whirlpool Clamp
8WP356138 Whirlpool Hose Clamp
10W10034820 Whirlpool Grommet
11W10034830 Whirlpool Grommet
128540033 Whirlpool Cap
138533964 Whirlpool Screw
14WPW10730972 Whirlpool Washer Water Pump
