CIC36LP2VBS1 FREEZER DRAWER

CIC36LP2VBS1 FREEZER DRAWER

Written by

in

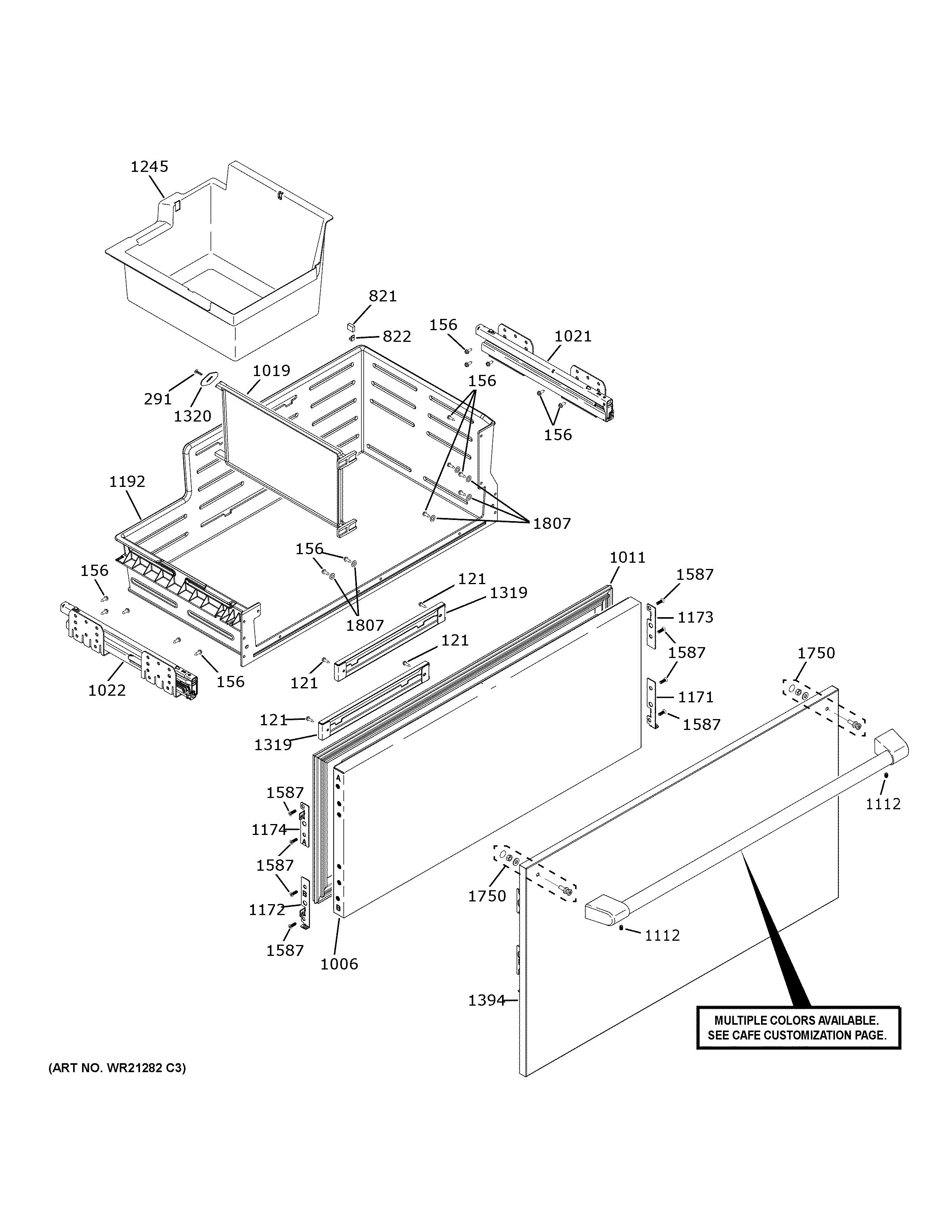

CIC36LP2VBS1 FREEZER DRAWER

Products

PositionProduct
121WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
156SCR 10-32
291HI-LO SCREW W/#6 HD
821MAGNET CONVERTIBLE DRAWER
822WR55X32501 GE Refrigerator Freezer Reed Switch White CO
1006FREEZER DRAWER FRONT
1011DOOR GASKET FREEZER
1019FREEZER DRAWER DIVIDER
1021SLIDE FREEZER DRAWER – RIGHT
1022SLIDE FREEZER DRAWER – LEFT
1112WR01X11057 GE Refrigerator Screw Set .250 Diameter
1171RH DOOR PANEL BRACKET SINGLE DOOR
1172LH DOOR PANEL BRACKET SINGLE DOOR
1173RH DOOR PANEL BRACKET SINGLE & FRENCH DO
1174LH DOOR PANEL BRACKET SINGLE & FRENCH DO
1192FREEZER BASKET
1245ICE BUCKET
1319WR02X43945 GE Divider Guide
1320DIVIDER DRAWER REAR RETAINER
1394STAINLESS FREEZER DOOR WRAP
1587SCREW M5X.8 FLT25 0.63 SZN
1750HANDLE FASTENER KIT
1807WASHER
