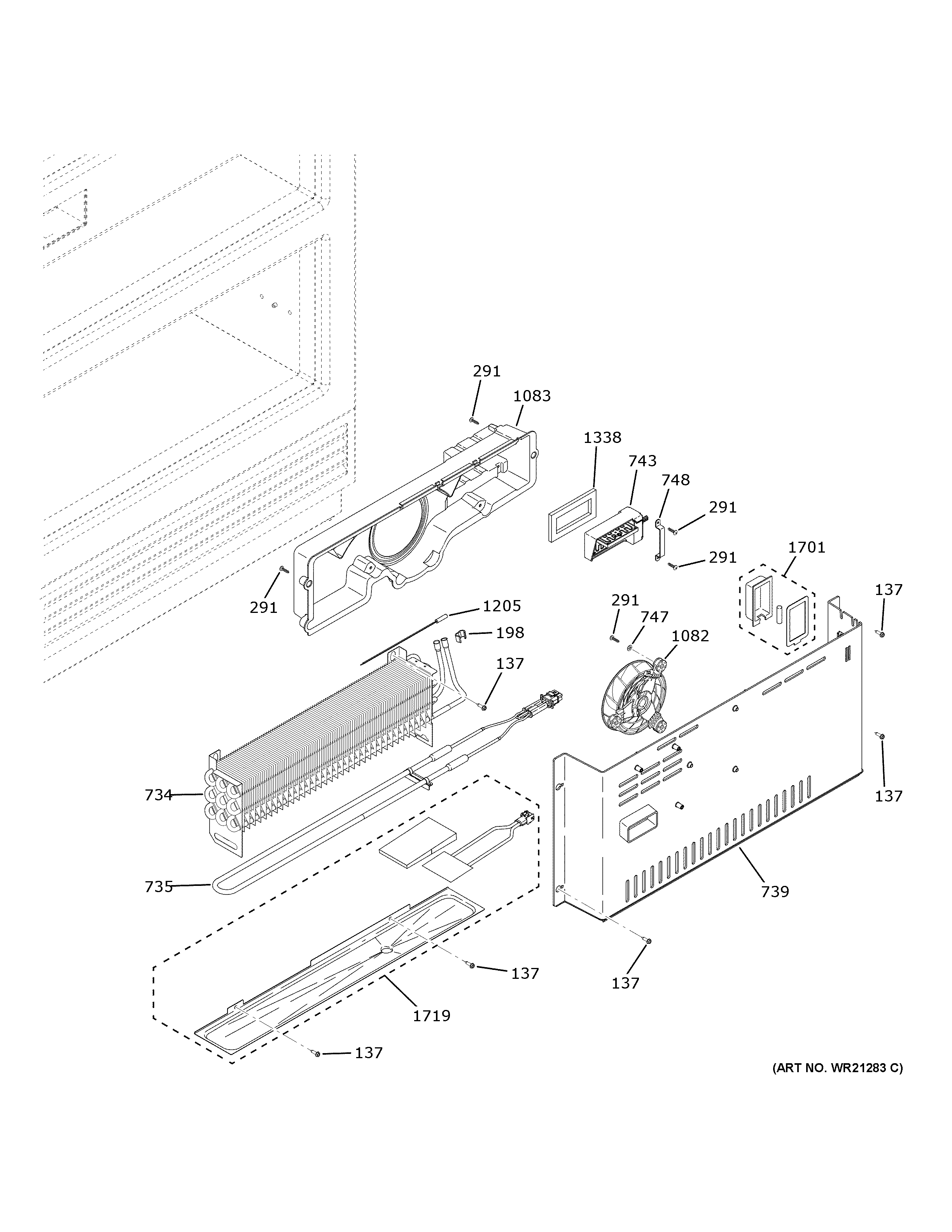

CIC36LP2VBS1 FREEZER SECTION

CIC36LP2VBS1 FREEZER SECTION

Written by

in

CIC36LP2VBS1 FREEZER SECTION

Products

PositionProduct
137SCR 8-32 TTGX IHXW 5/8 S
198EVAPORATOR THERMISTOR CLIP
291HI-LO SCREW W/#6 HD
734EVAPORATOR
735WR55X36090 GE Refrigerator Heater and Harness
739WR17X43913 GE Evaporator Cover
743DAMPER VENT MOTOR ASSEMBLY
747FLAT WASHER
748MOUNTING STRAP DAMPER FZ EVAP
1082FAN MOTOR-BLADE ASSEMBLY
1083FAN HOUSING
1205WR55X10025 GE Refrigerator Temperature Sensor
1338DAMPER GASKET
1701THERMISTOR SERVICE KIT
1719SRV PAN DRAIN FZ
