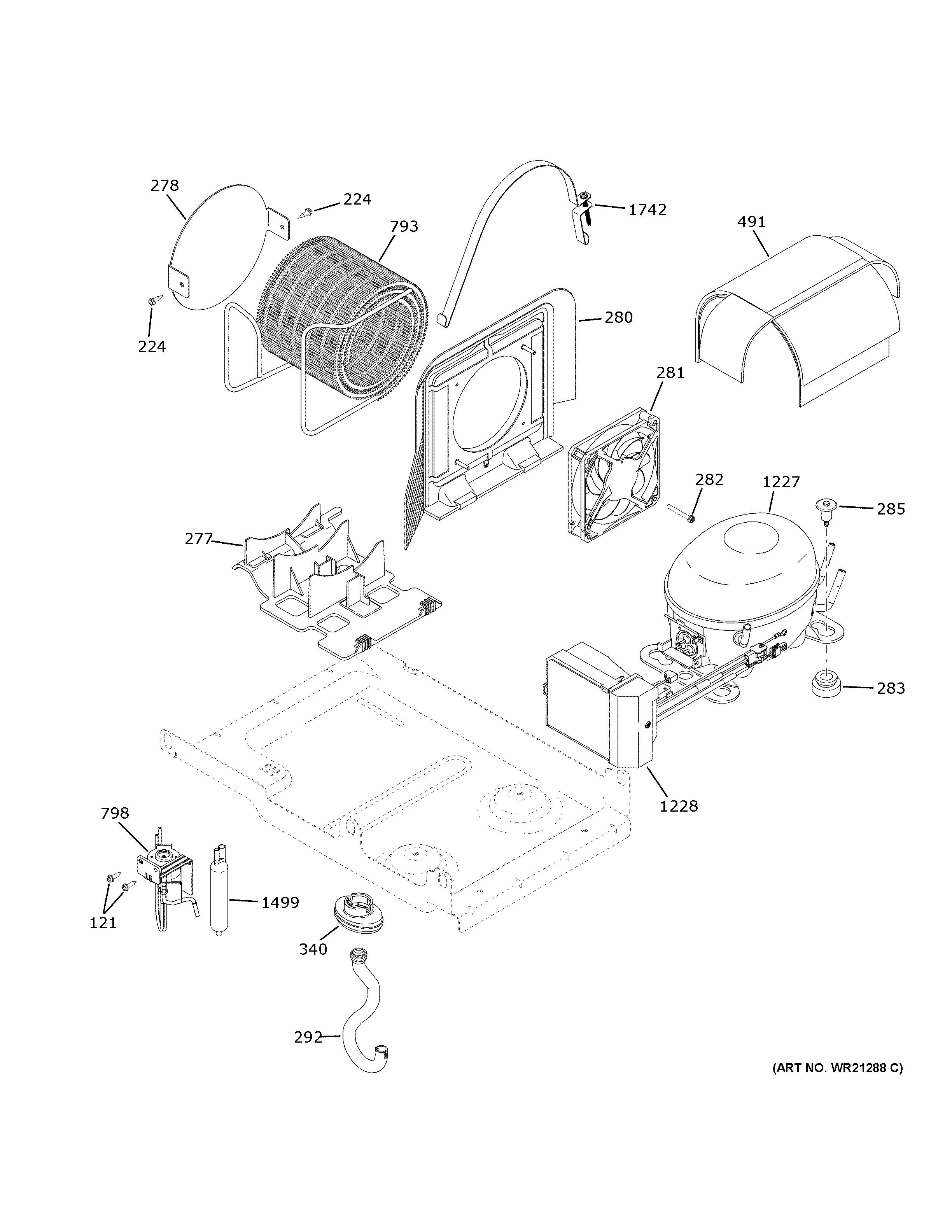

CIC36RP2VBS1 MACHINE COMPARTMENT

Products

Position	Product
121	WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
224	WR01X10635 GE Scr 8-32 Ca IHVW .625 S
277	CONDENSER SUPPORT
278	CONDENSER BAFFLE
280	CONDENSER FAN HOUSING
281	CONDENSER FAN
282	SCREW 8-19 HI/LO PNP SS
283	COMPRESSOR GROMMET
285	COMPRESSOR MOUNTING BOLT
292	DRAIN TUBE
340	DEFROST DRAIN VACUUM BREAK VALVE
491	WR02X13428 GE Refrigerator Compressor Dampener
793	CONDENSER
798	3 WAY VALVE W/ BRACKET
1227	COMPRESSOR SERVICE KIT - JIAXIPERA
1228	INVERTER
1499	WR86X25269 GE Refrigerator R134 Dryer
1742	CONDENSER STRAP
