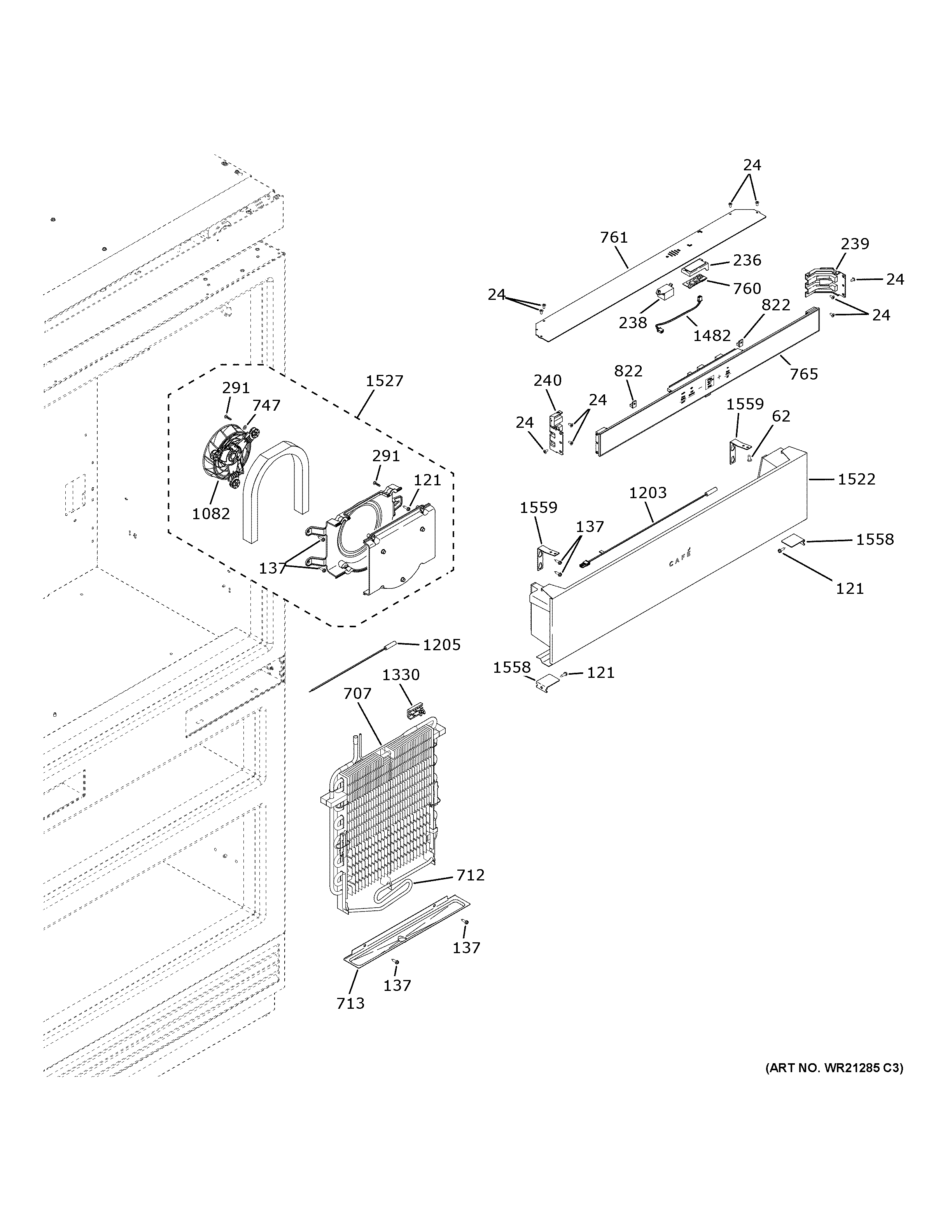

CIC36RP2VBS1 REFRIGERATOR SECTION

Products

PositionProduct
24WB1X5364 GE Oven Mounting Screw
62WR1X5645 GE Refrigerator Screw
121WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
137SCR 8-32 TTGX IHXW 5/8 S
236WB02X20265 GE Transceiver Housing
238WR55X11139 GE Refrigerator Speaker
239USER INTERFACE RIGHT BRACKET
240USER INTERFACE LEFT BRACKET
291HI-LO SCREW W/#6 HD
707EVAPORATOR WITH BRACKETS
712WR51X31996 GE Refrigerator Defrost Heater
713REFRIGERATOR DRAIN PAN FF
747FLAT WASHER
760WIFI BOARD
761USER INTERFACE TOP COVER 36"
765GLASS TOUCH TEMPERATURE CONTROL BOARD
822WR55X32501 GE Refrigerator Freezer Reed Switch White CO
1082FAN MOTOR-BLADE ASSEMBLY
1203THERMISTOR
1205WR55X10025 GE Refrigerator Temperature Sensor
1330THERMISTOR CLIP
1482HMI JUMPER
1522TOP AIRFLOW COVER – CAFE
1527FAN HOUSING
1558AIR HANDLER SIDE MOUNTING BRACKET
1559AIR HANDLER MOUNTING BRACKET
