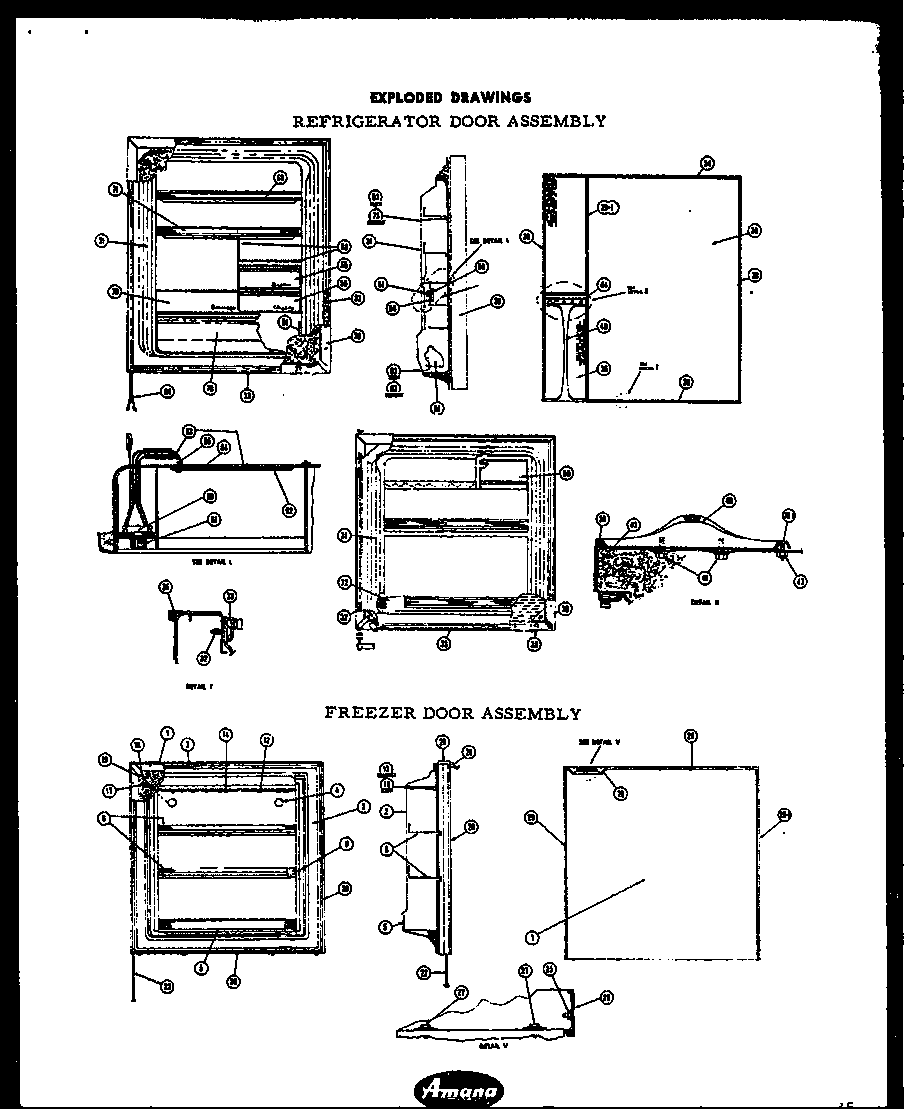

CIM105L 04 – REF DOOR ASSY
Written by
in
CIM105L 04 – REF DOOR ASSY
Products
Position
Product
NI
MAY M0214028
NI
MAY B0532701
NI
MAY A3030301
NI
MAY B0579902
NI
MAY D3770003
NI
MAY M0282504
NI
MAY M0280001
NI
MAY M0205545
NI
MAY M0202729
NI
MAY B0530205
NI
MAY D3799801
1
MAY D3920816
1
MAY D3920836
1
MAY D3920846
1
MAY D3920856
2
MAY D3936201
4
MAY A0377804
5
MAY C3562501
6
MAY D3936601
17
MAY A0322805
20
MAY D3774409
22
MAY B0531601
26
MAY D3850401
27
MAY M0248129
28
MAY D3796617
28
MAY D3799701
29
MAY D3796609
30
MAY D3920859
30
MAY D3920849
30
MAY D3920819
30
MAY D3920839
31
MAY D3796703
32
MAY M0241118
33
MAY D3786409
34
MAY D3796202
35
MAY D3796204
38
MAY D3796615
39
MAY D3794905
39
MAY D3796611
40
MAY D3797801
41
MAY M0248130
43
MAY M0289802
44
MAY C3541204
53
MAY D3799003
55
MAY D3747609
56
MAY D3747610
57
MAY A0391701
58
MAY A0391801
59
MAY B0542501
60
MAY B0541401
61
MAY B0541403
62
MAY C0695406
63
MAY C3569401
65
MAY M0211517
68
MAY D3797501
70
MAY D3875601
71
MAY D3797401
72
MAY B0530005
73
MAY A0384901
79
MAY D3753109
81
MAY C3512709
81
MAY C3512710
82
MAY A0288701
82
SEE NOTE GROUND WIRE, GREEN
83
MAY M0211631
←
