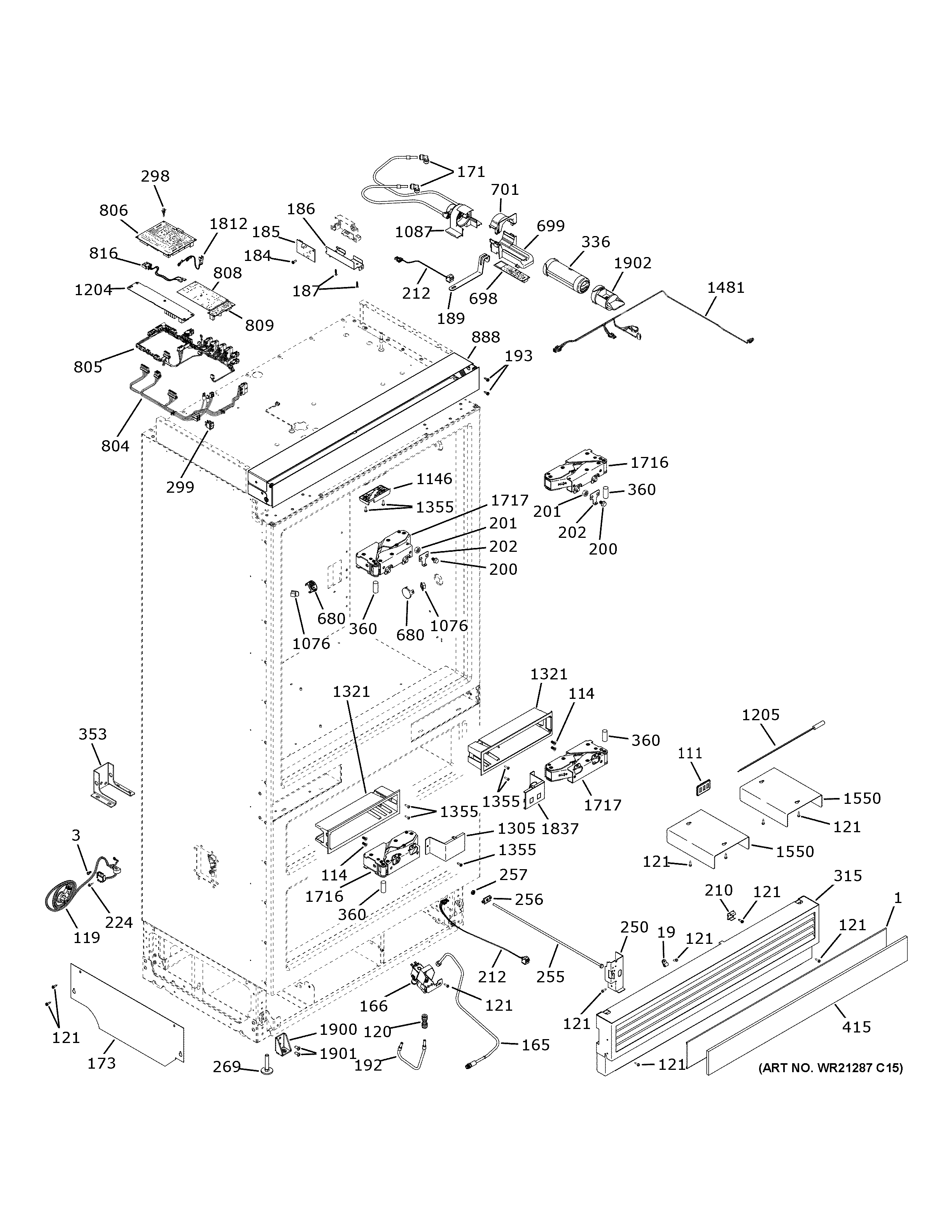

CIP36NP2VBS1 CASE PARTS

CIP36NP2VBS1 CASE PARTS

Written by

in

CIP36NP2VBS1 CASE PARTS

Products

PositionProduct
1TOE KICK 36" BOTTOM FREEZER
3WS02X10087 GE Screws 10-32 GX HXW 7/16 S
19WR17X3046 GE Clamp 1/4"
111WR02X12839 GE Refrigerator Grille Sensor
114WR02X29021 GE Refrigerator Bolt M6 T30
119WR23X30808 GE Power Cord Extension
120WR02X13738 GE Refrigerator Coupler Straight 1/4
121WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
165WR02X32825 GE Refrigerator Water Line
166WATER VALVE WITH GUARD
1711/4" 90 DEGREE UNION
173LEFT SIDE ACCESS COVER
184WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
185WR55X40048 GE Humidity Control Board
186HUMIDITY SENSOR BRACKET
187WD02X10115 GE Screw 6-19 Flp 3/4 S
189XWF FILTER REMOVAL TOOL
192FORMED WATER LINE
193WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
200SCR 5/16-18 B IHXW 1/2 S
201NUT 5/16-18 THD
202BRACKET SLIDE
210FRONT ACCESS COVER CLIP
212RJ45 HARNESS
224WR01X10635 GE Scr 8-32 Ca IHVW .625 S
250WATER VALVE BRACKET
255LEVELING SCREW
256WD02X22539 GE Dishwasher Leveling Nut
257NUT LOCK
269LEVELING LEG
298WR02X29169 GE Main Board Standoff
299WR49X10070 GE Refrigerator Master Light SW. Kit
315LOWERACCESSCOVER 36"
336XWFE GE Refrigerator Water Filter
353ANTI TIP BRACKET
360WR02X30724 GE Refrigerator Hinge Limit Pin
415TOE KICK MAGNET – FULL LENGTH
680LED LENS
698RFID BOARD
699LEAK DETECT HOUSING
701LEAK DETECT COVER
804MAIN AC HARNESS
805MAIN DC HARNESS
806WR55X47345 GE Main Control Board
808WR55X31984 GE Refrigerator Power Supply Board
809LED DRIVE BOARD PCBA
816PERSONALITY HARNESS
888UPPER ACCESS COVER 36"
1076PCB ASM POINT LED LIGHT
1087XWF FILTER MANIFOLD ASSEMBLY
1146STRIKER PLATE
1204DOOR BOARD
1205WR55X10025 GE Refrigerator Temperature Sensor
1305POCKET HINGE COVER
1321POCKET HINGE HOUSING
1355WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
1481HUMIDITY SENSOR JUMPER
1550U BRACKET
1716RIGHT ARTICULATING HINGE
1717LEFT ARTICULATING HINGE
1812JUMPER DOOR HEATER
1837STRIKER PLATE ASSEMBLY
1900LEVELER BRACKET
1901BRACKET LEVELER SCREW
1902WR17X33825 GE Bypass Filter Plug
