CIP36NP2VBS1 REFRIGERATOR DOOR – LH

CIP36NP2VBS1 REFRIGERATOR DOOR – LH

Written by

in

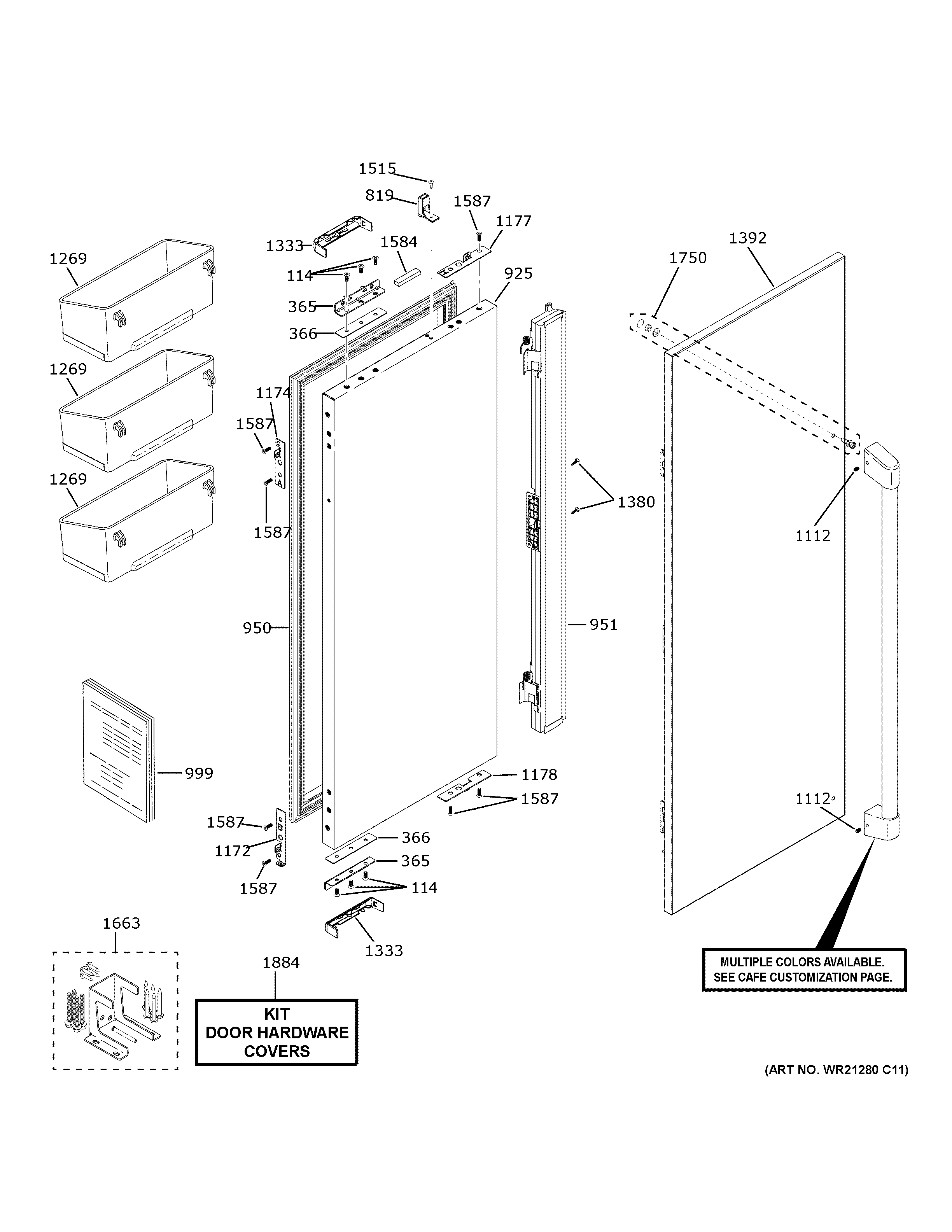

CIP36NP2VBS1 REFRIGERATOR DOOR – LH

Products

PositionProduct
114WR02X29021 GE Refrigerator Bolt M6 T30
365DOOR TO HINGE BRACKET
366DOOR HINGE SHIM
819MAGNET ASSEMBLY REFRIGERATOR DOOR
925REFRIGERATOR DOOR LEFT HAND
950DOOR GASKET FRENCH DOOR
951ARTICULATING MULLION W/ HINGES AND BUMPE
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
1112WR01X11057 GE Refrigerator Screw Set .250 Diameter
1172LH DOOR PANEL BRACKET SINGLE DOOR
1174LH DOOR PANEL BRACKET SINGLE & FRENCH DO
1177RH DOOR PANEL BRACKET FRENCH DOOR
1178LH DOOR PANEL BRACKET FRENCH DOOR
1269CAF DOOR BIN FRENCH DOOR
1333LOWER HINGE BRACKET
1380WR02X36719 GE Screw Flat 3.9-1.4 Ab 20 16 S
1392WRAP DOOR ASM FD LH
1515WR01X10484 GE Refrigerator Stainless Steel TCS 8-32 x 5/8" PH
1584DOOR BUMPER
1587SCREW M5X.8 FLT25 0.63 SZN
1663ANTI TIP HARDWARE 36
1750HANDLE FASTENER KIT
1884KIT DOOR HARDWARE COVERS
