CK7500SH4SS CONTROL PANEL

CK7500SH4SS CONTROL PANEL

Written by

in

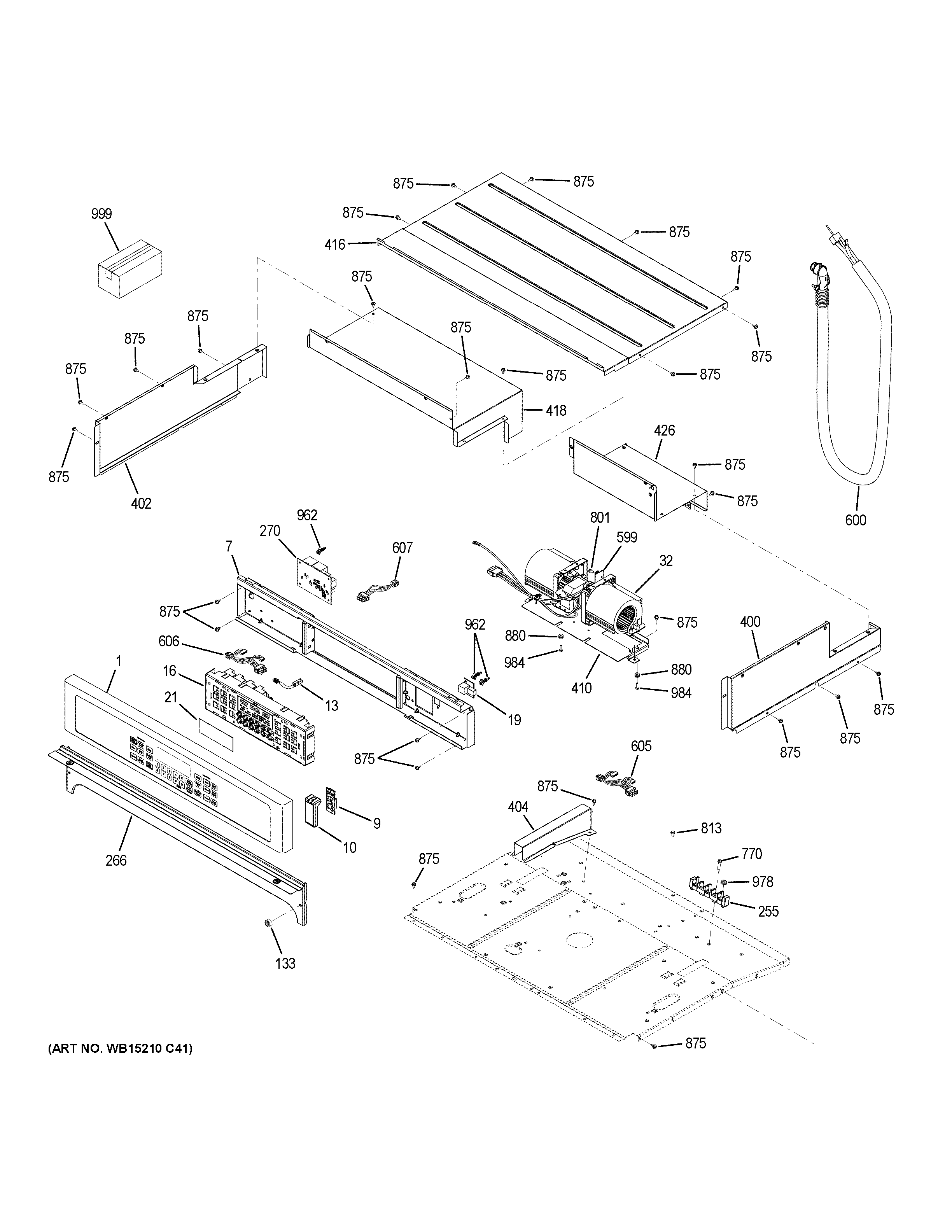

CK7500SH4SS CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL ASM SS
1LABEL WIRE DIAGRAM
7WB07T10729 GE Oven Control Mounting Panel
9WB27X33353 GE Wi-Fi Module Kit
10WB02X20265 GE Transceiver Housing
13WB18X30704 GE Jumper
16WB27X29609 GE Oven White LED Control T012
19WB27X20933 GE Oven RJ45 Housing Assembly
21WB27T11116 GE Clock Display Filter
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
255WB17K10001 GE Oven Block Terminal
266WB07X20183 GE Oven Upper Trim Vent
270WB27X25594 GE Oven Relay Board
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34T10159 GE Oven Top Front Cover
418WB34T10154 GE Rear Top Cover
426COVER WIRE REAR
599WB27T11463 GE Oven Fan Sensor Board
600WB18X33486 GE Conduit Wire Assembly
600WB18T10574 GE Oven Wire Conduit Assembly
605WB18X23819 GE Main Wire Harness
606WB18T10552 GE Wire Extension Harness
607WB18X31061 GE Oven Latch Wire Harness
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875WH2X930 GE Screw
880WB01T10128 GE Grommet
962WB02T10093 GE Oven Standoff Printed Circuit Board
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM MANUAL MINI & WD ASM
999PM OWNERS MANUAL
999WB02T10303 GE Cleaner Lubricant
999MANUAL U&C TIP SHEET
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
