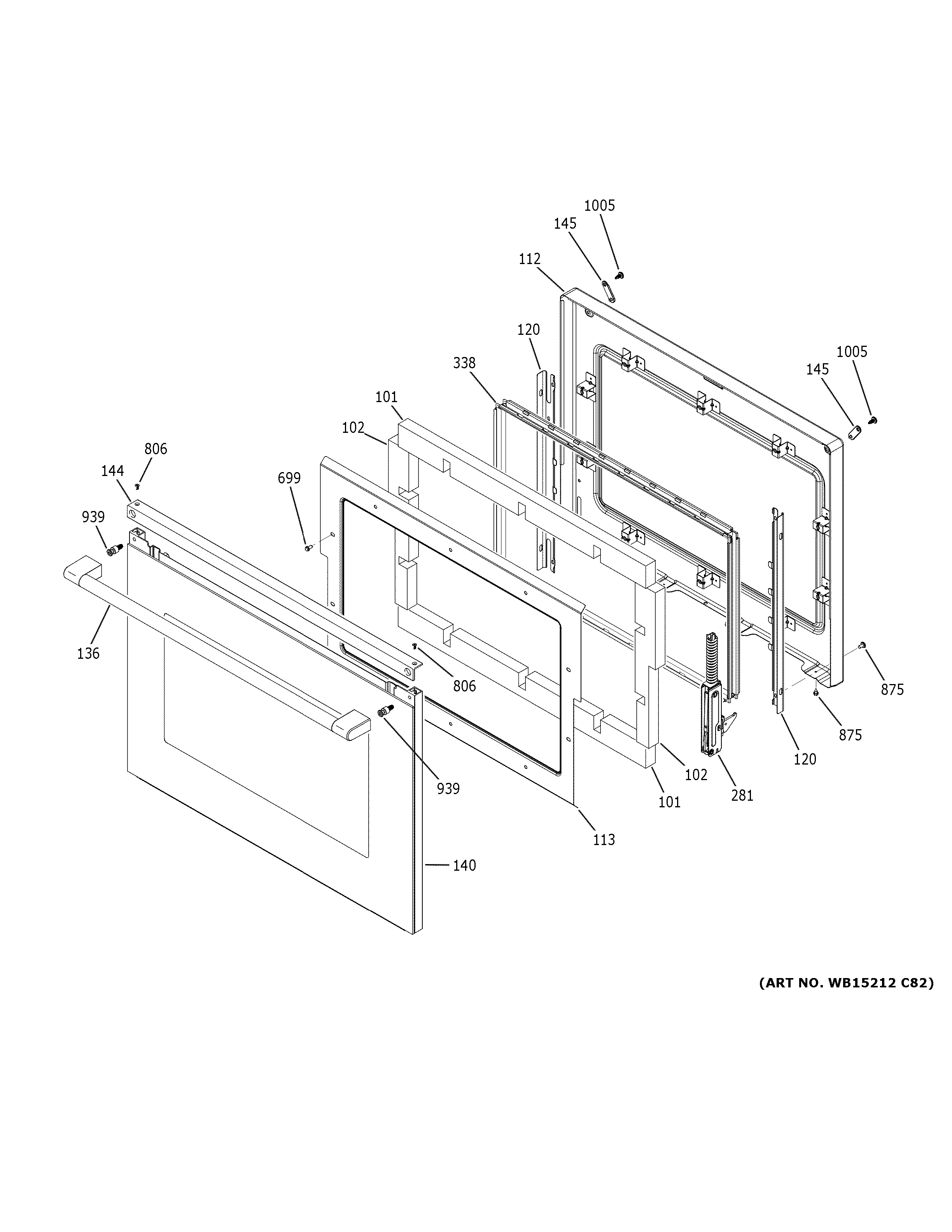

CKD70DM2N1S5 LOWER DOOR

CKD70DM2N1S5 LOWER DOOR

Written by

in

CKD70DM2N1S5 LOWER DOOR

Products

PositionProduct
102WB35X31513 GE Door Side Insulation
112WB63X32570 GE Oven Door Liner Assembly
113WB34X31515 GE Door Insulation Retainer
120LINER SUPPORT
136STAINLESS STEEL HANDLE AND ENDCAP
140STAINLESS STEEL DOOR TRIM AND GLASS ASM
144OVEN DOOR TOP TRIM
145WB02X32816 GE Oven Door Liner Plug
281WB10X30584 GE Oven Left Door Hinge
281WB10X30581 GE Door Hinge Right
338WB56X27502 GE Oven Inner Door Glass
699WB1M1 GE Oven Screw
806SCREW 8-32 TT FLT 7/20
875WH2X930 GE Screw
939MOUNTING STUD
1005WB01T10008 GE Oven Screw 10-32
