CKD70DM2N2S5 CONTROL PANEL

CKD70DM2N2S5 CONTROL PANEL

Written by

in

CKD70DM2N2S5 CONTROL PANEL

Products

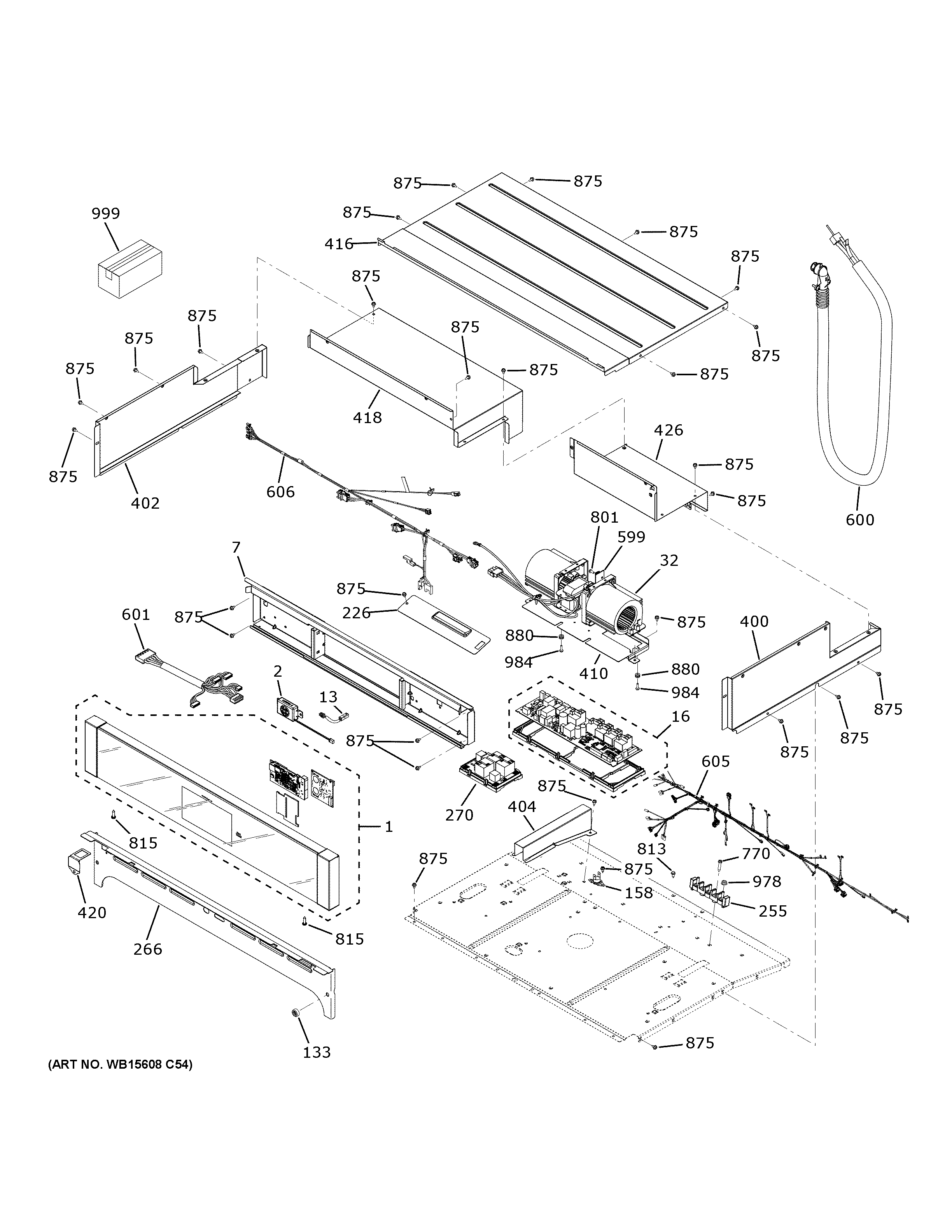

PositionProduct
1WB56X40068 GE Stainless Control Panel
2WB27X33354 GE Speaker 70C 3W
7WB07X32470 GE Control Panel Mounting BRack
13WB18X30704 GE Jumper
16CONTROL RC17 (FLASHED)
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
158WB24X35587 GE Limit Switch
226COVER LATCH ACCESS
255WB17K10001 GE Oven Block Terminal
266WB07X33065 GE Upper Vent Trim
270WB27X33083 GE Relay Board and Frame Assembly
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34T10159 GE Oven Top Front Cover
418TOP REAR COVER
420WB24X33028 GE RJ45 Bracket
426COVER WIRE REAR
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10574 GE Oven Wire Conduit Assembly
600WB18X33486 GE Conduit Wire Assembly
601WB18X32919 GE COM Wire Harness
605WB49X35794 GE Double Oven Main Harness
606WB18X47029 GE Latch Wire Harness
606WB18X33082 GE Harness Wire Latch
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM QUICK OWNERS MANUAL
999MANUAL U&C TIP SHEET
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
999PM INSERT INSTRUCTIONS
