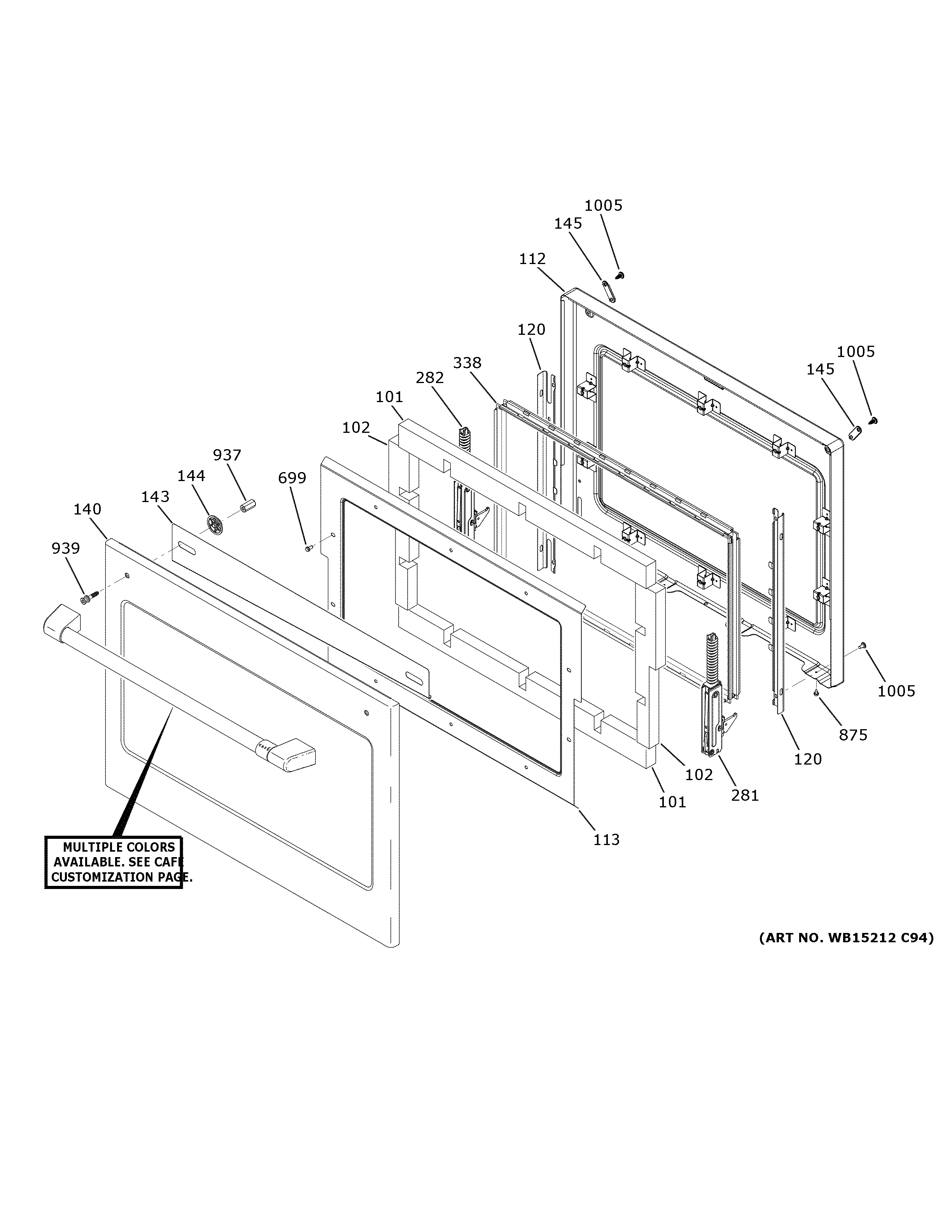

CKD70DP2N5S1 UPPER DOOR

CKD70DP2N5S1 UPPER DOOR

Written by

in

CKD70DP2N5S1 UPPER DOOR

Products

PositionProduct
102WB35X31513 GE Door Side Insulation
112WB63X32570 GE Oven Door Liner Assembly
113WB34X31515 GE Door Insulation Retainer
120LINER SUPPORT
140WB56X43382 GE Refrigerator Door Trim and Glass Stainless
143WB34T10143 GE Oven Deflector Door
144WB02T10524 GE Oven Door Handle Spacer
145WB02X32816 GE Oven Door Liner Plug
281WB10X30581 GE Door Hinge Right
282WB10X30582 GE Left Door Hinge
338WB56X27502 GE Oven Inner Door Glass
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
937WB01X31717 GE Oven Reinforcement Spacer
939WB01X31573 GE Mounting Stud
1005WB01T10008 GE Oven Screw 10-32
