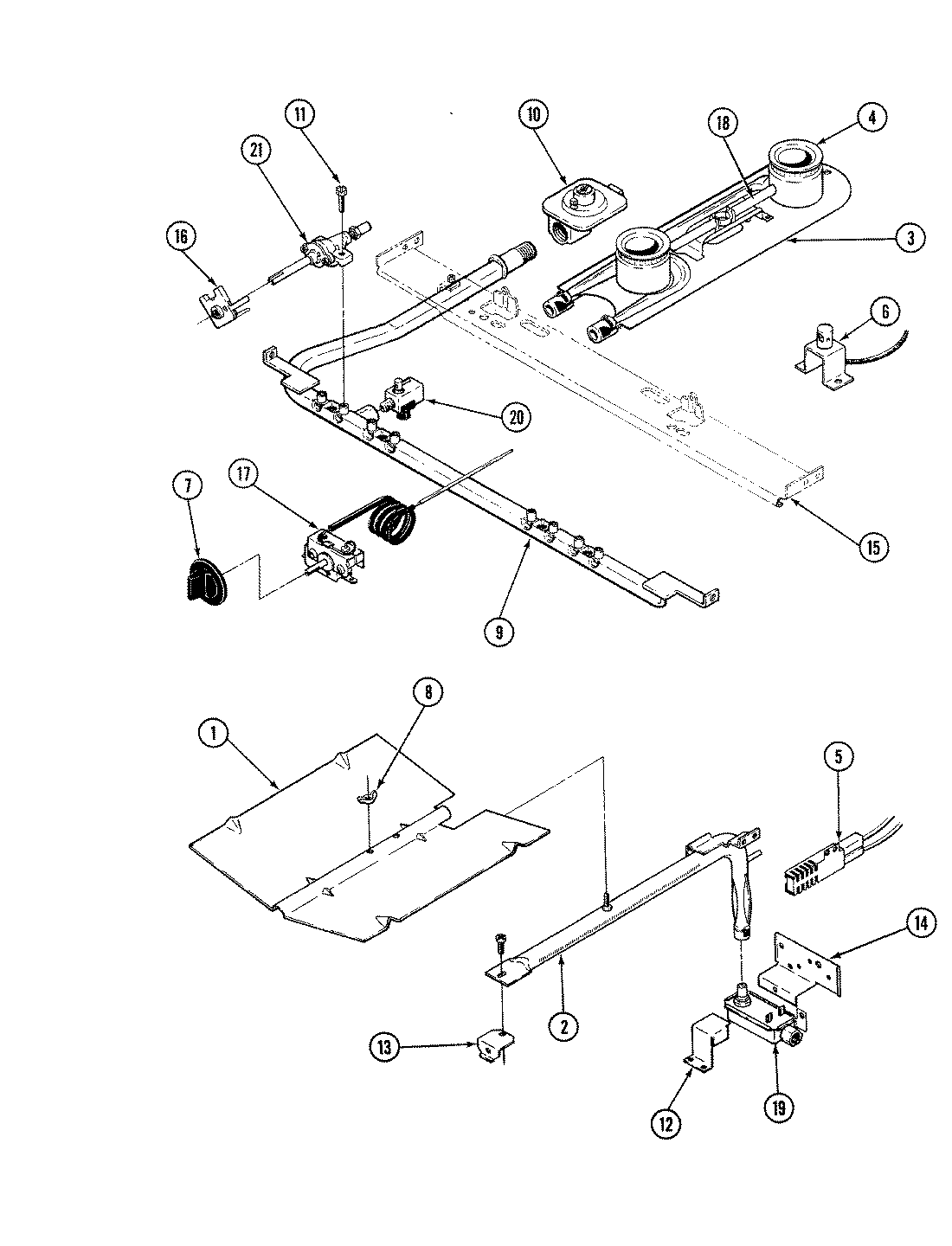

CKG8421MW729RG 06 – LOWER OVEN CONTROL

Products

Position	Product
1	MAY 3601F099-45
1	MAY 3601F181-45
2	MAY 7505P101-60
2	MAY 7505P028-60
3	MAY 7505P141-60
3	MAY 7505P140-60
3	MAY 7505P169-60
3	MAY 7505P168-60
3	MAY 3412A004-23
4	MAY 4005F304-51
4	MAY 7504P001-60
5	MAY 7432P025-60
5	MAY 7432P062-60
5	MAY 7432P052-60
6	MAY 7432P015-60
6	MAY 7432P028-60
6	MAY 7432P029-60
6	MAY 7432P008-60
7	WP7731P018-60 Whirlpool Knob
7	MAY 7711P185-60
7	MAY 7431P006-60
7	MAY 7733P038-60
7	MAY 7711P173-60
7	WP7711P135-60 Whirlpool Knob
7	MAY 7711P312-60
8	NUT, WING
9	MAY 7513P042-60
9	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	MAY 3830F006-45
10	MAY 7510P002-60
11	MAY 1986286
12	MAY 3807F120-34
12	MAY 3807F061-34
13	MAY 3807F115-45
14	MAY 0862468
15	MAY 3807F221-80
16	MAY 7403P041-60
16	WP7403P190-60 Whirlpool Switch
17	MAY 7515P008-60
18	MAY 7506P006-60
19	MAY 7501P017-60
20	MAY 7502P002-60
21	MAY 7502P111-60
21	MAY 7502P109-60
21	MAY 7502P016-60
