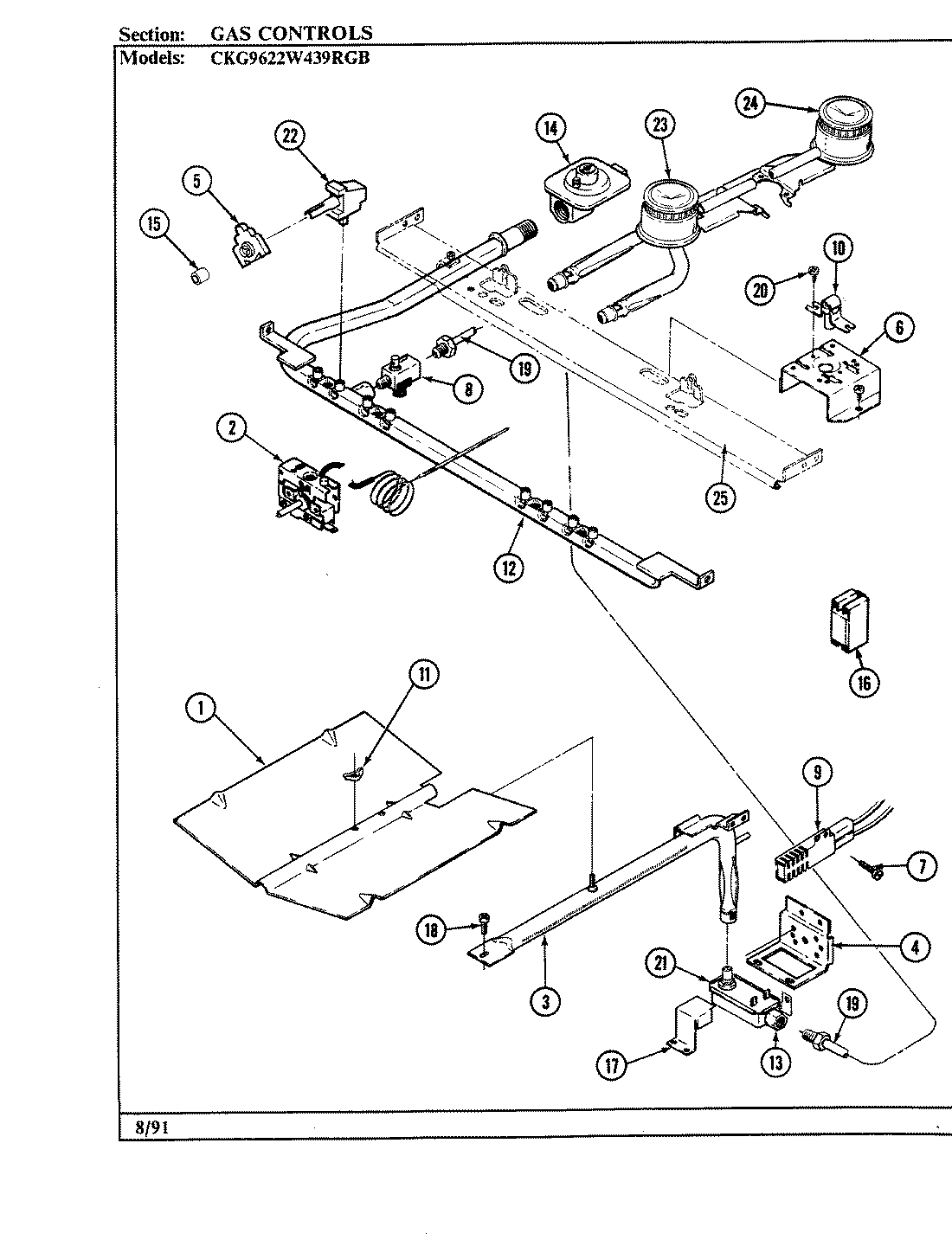

CKG9622W439RGB 04 – GAS CONTROLS

Products

Position	Product
1	MAY 3601F181-45
2	MAY 3604F030-51
2	MAY 7101P279-60
2	MAY 7404P062-60
3	MAY 3403D027-45
4	MAY 3807F120-34
5	WP7403P190-60 Whirlpool Switch
6	MAY 3807F201-45
7	SCREW (10-24X5/16-NI)
8	MAY 7502P002-60
9	MAY 7432P067-60
9	MAY 7401P018-60
10	MAY 7432P029-60
10	MAY 7432P028-60
11	NUT, WING
12	MAY 7513P101-60
13	MAY 1555251
14	MAY 7510P002-60
15	MAY 7214P003-60
16	MAY 7431P006-60
17	MAY 4005F173-51
18	MAY 7101P061-60
19	MAY 3414F049-44
20	MAY 7118P004-60
21	MAY 7501P108-60
22	MAY 7502P132-60
22	MAY 7101P296-60
23	MAY 7505P169-60
24	MAY 7505P168-60
25	MAY 3807F347-51
