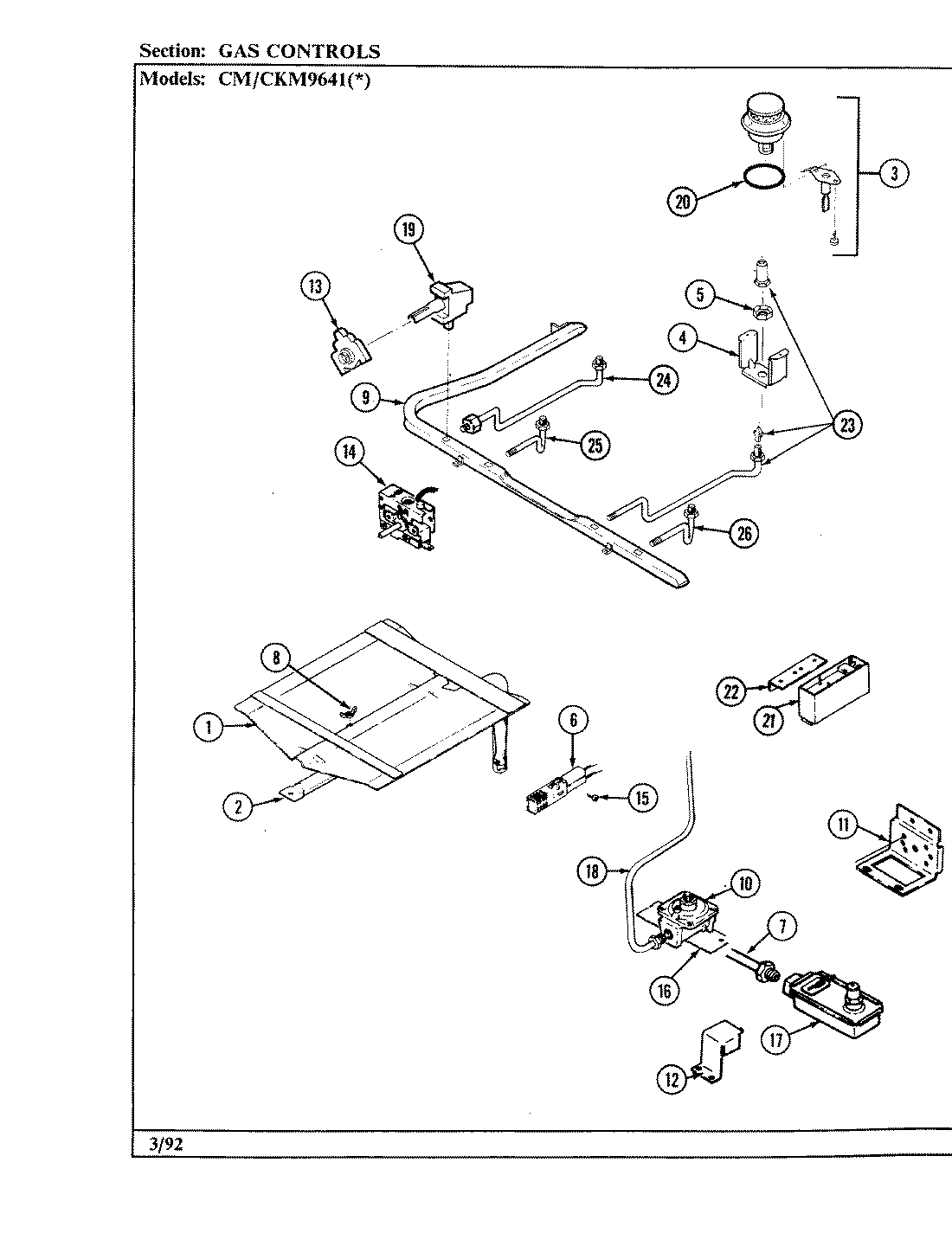

CKM9641A580RW 03 – GAS CONTROLS

Products

Position	Product
1	MAY 3601F181-45
2	MAY 3403D027-45
3	WP3412D024-26 Whirlpool Oven Surface Burner Head
3	MAY 3412D015-14
3	MAY 3412D017-26
3	MAY 3412D015-09
3	MAY 5111A360-60
3	MAY 5111A361-60
3	MAY 7432P072-60
3	MAY 3412D016-09
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	MAY 7118P013-60
4	MAY 3807F378-45
5	MAY 7103P119-60
6	MAY 4005F304-51
6	MAY 7432P067-60
7	MAY 7506P098-60
8	NUT, WING
9	MAY 7513P104-60
10	MAY 7510P048-60
11	WP4159193 Whirlpool Screw
11	MAY 3807F120-34
12	MAY 4005F173-51
13	WP7403P287-60 Whirlpool Igniter Switch
14	MAY 7101P279-60
14	MAY 7404P062-60
15	SCREW (10-24X5/16-NI)
16	MAY 3801F191-45
16	MAY 7101P280-60
17	MAY 7501P108-60
18	MAY 7506P100-60
19	MAY 7101P296-60
19	MAY 7502P220-60
20	MAY 7201P050-60
21	MAY 7431P021-60
22	MAY 3801F226-45
23	MAY 7507P069-60
24	MAY 7507P092-60
25	MAY 7507P073-60
26	MAY 7507P071-60
