CKM9641W580RW 05 – TOP ASSEMBLY – Aparts

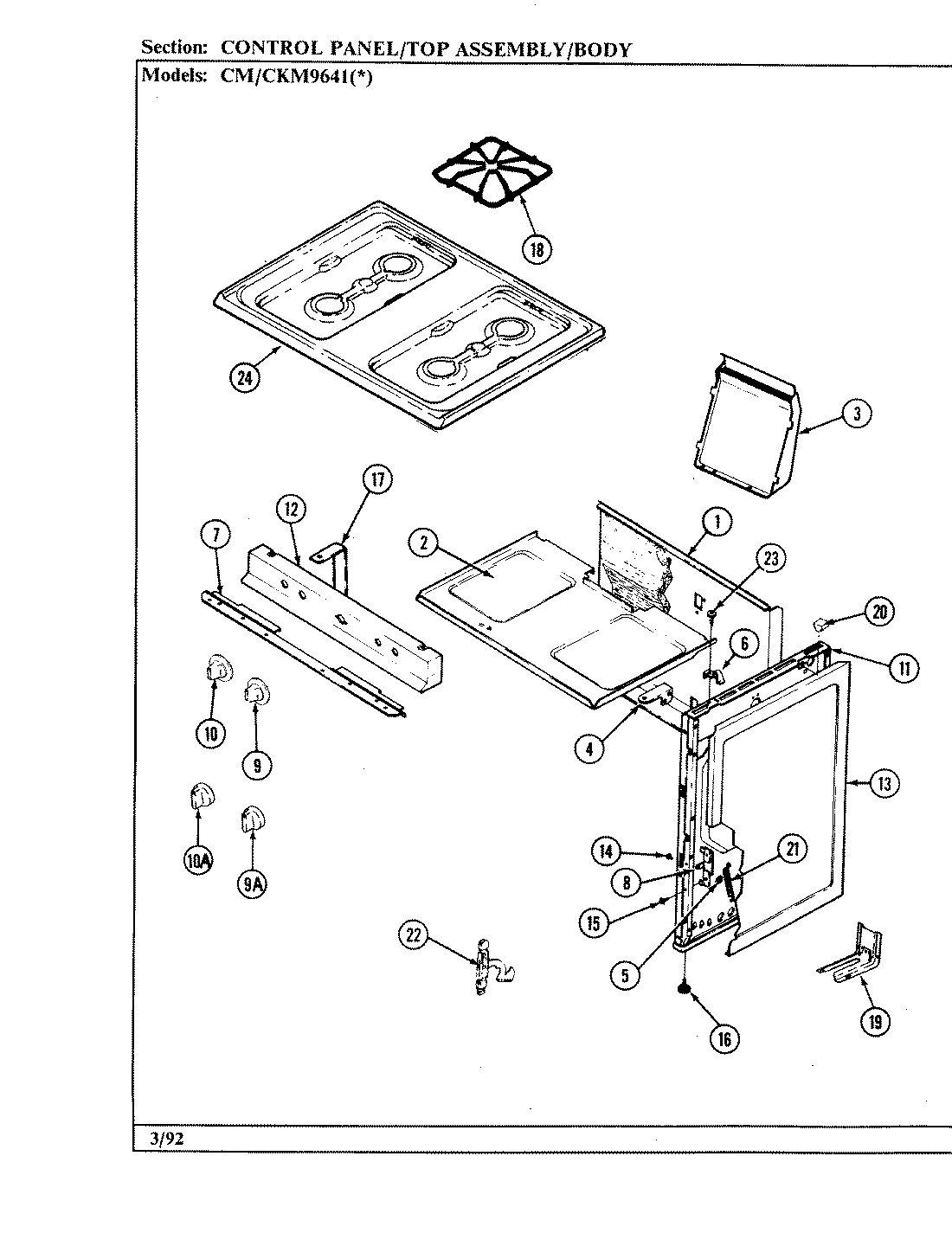

CKM9641W580RW 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 4002F165-80
2	MAY 4011F196-80
3	MAY 4006W026-80
4	MAY 3801F047-34
4	MAY 3801F049-34
5	MAY 7112P019-60
6	MAY 7112P073-60
7	WP98008545 Whirlpool Screw
7	MAY 4012F021-80
8	MAY 3418A030-34
8	MAY 8016P008-60
8	MAY 3418A029-34
9	MAY 7731P031-60
10	MAY 7733P068-60
11	MAY 7103P045-60
11	MAY 8008P012-60
11	MAY 4009W078-80
12	MAY 7118P004-60
12	MAY 7112P087-60
12	MAY 7712A058-60
13	MAY 2618F073-71
13	MAY 2618F073-74
15	WP4159193 Whirlpool Screw
16	MAY Y7101P25460
17	MAY 3807F431-45
18	MAY 2003W023-00
18	MAY 2003W023-26
19	MAY 3801F218-51
19	MAY 7101P289-60
20	MAY 8003P011-60
21	WP7803P058-60 Whirlpool Spring
22	MAY 3420A033-34
23	MAY 7101P061-60
24	MAY 2001F080-81
