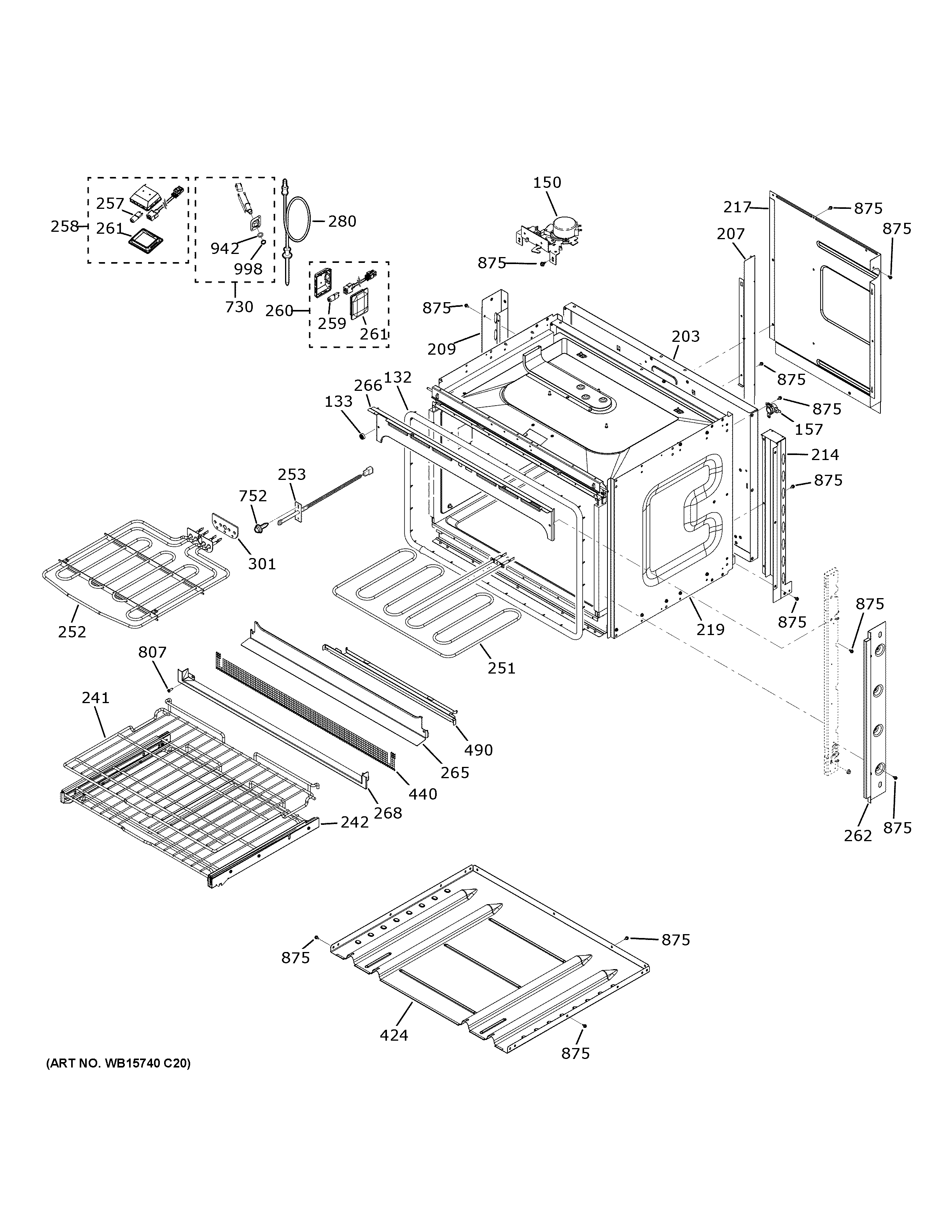

CKS70DP2N4S1 BODY PARTS

CKS70DP2N4S1 BODY PARTS

Written by

in

CKS70DP2N4S1 BODY PARTS

Products

PositionProduct
132WB35X34867 GE Oven Door Gasket
133WB03T10341 GE Oven Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
203RETAINER INSULATION BACK
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
241WB48X32180 GE Oven Rack Assembly
242WB48X32941 GE Oven Rack Assembly Sliding
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
259WB25T10101 GE Oven Halogen Lamp Bulb G9
260WB25X31222 GE Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262STAINLESS TRIM VERT SIDE (SWO)
265WB07T10807 GE Oven Lower Black Trim Vent
266WB07X32859 GE Upper Vent Trim
268WB07X33163 GE Bottom Trim Assembly Stainless Steel
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
424WB34T10155 GE Oven Bottom Air Duct Cover
440SCREEN SUPPORT
490WB55T10195 GE Oven Hidden Bake Cover
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
