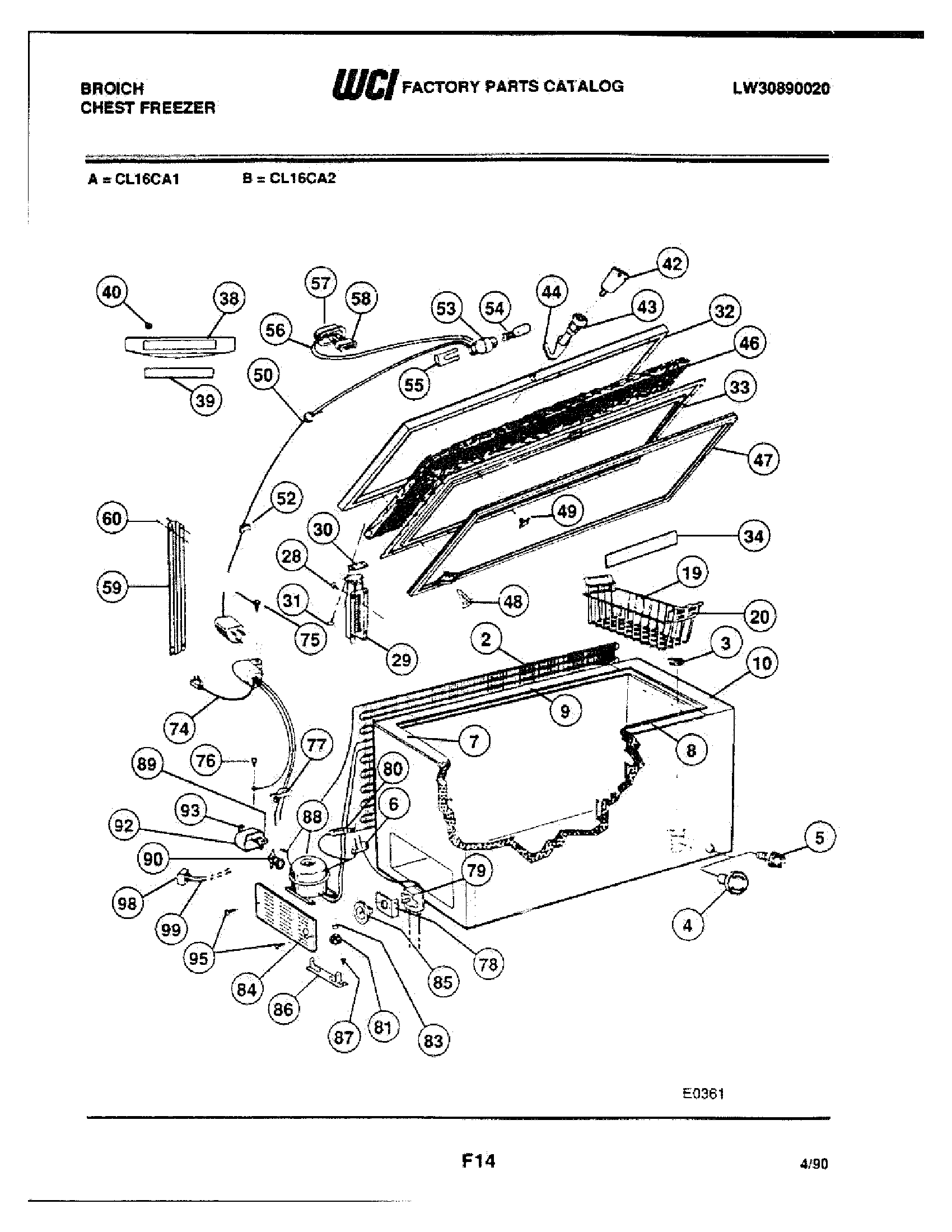

CL16CA1 03 – DOOR/CABINET/SYSTEM

Products

Position	Product
2	WCI 5300120781
3	PLUG, DRAIN, LINER
4	WCI 5306599932
5	WCI 06594053
6	WCI 06599967
7	WCI 5300128979
9	WCI 5300900265
10	WCI 5303209630
19	BASKET
20	HANDLE (BROWN)
28	SCREW HINGE BASE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 5308037852
31	WCI 5309950602
32	WCI 3017756
33	WCI F128975
34	WCI 3017731
38	WCI 5309950054
39	WCI F000122456
40	FASTENER
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5300190358
44	WCI 5300300791
46	INSULATION
47	WCI 5300128165
48	5303212828 Frigidaire Refrigerator Primary Clip
49	CLIP PANEL AND LOCK
53	WCI 5306599955
54	5304517886 Frigidaire Refrigerator Light
55	PLATE, BACKUP, LIGHT SWITCH
56	WCI 06599965
57	WCI 5308037857
58	WCI 5308002706
59	WCI F129554-P
60	131168200 Frigidaire Dryer Screw
74	WCI F129555
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI 5308016760
79	THERMOSTAT TEMP (2 TERM)
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	WCI 3003664
85	WCI 5308016783
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR
89	WCI 5303017753
90	WCI 3017760
92	WCI 08016583
93	STRAP-BALE
95	216858001 Frigidaire Refrigerator Screw
98	5304464438 Frigidaire Compressor Run Capacitor
99	HARNESS CAPACITOR
