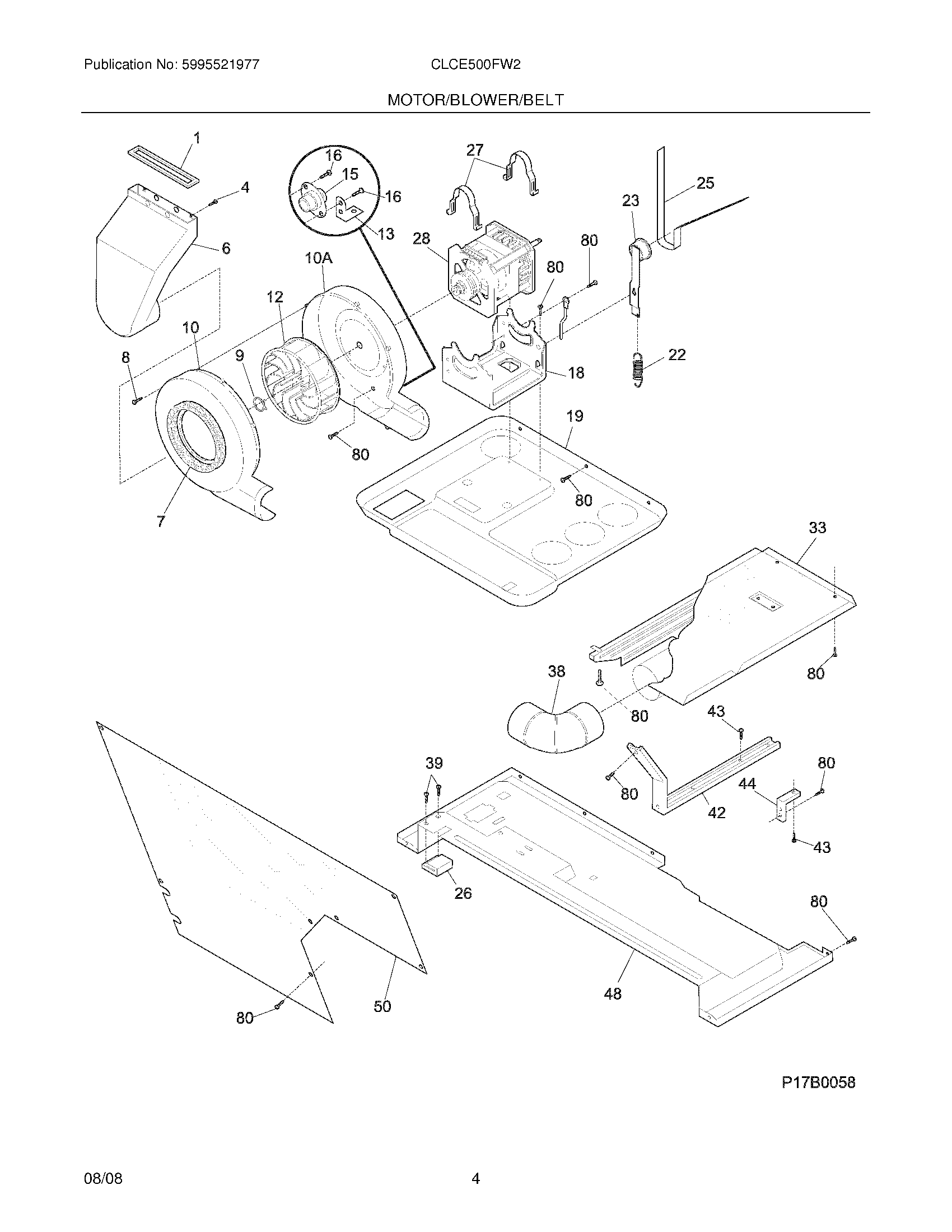

CLCE500FW2 05 – MOTOR/BLOWER/BELT

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	131295200 Frigidaire Seal
4	131362400 Frigidaire Fastener
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10A	137551800 Frigidaire Housing
10	134611700 Frigidaire Housing
12	BLOWER WHEEL
13	WCI 134608400
15	131298300 Frigidaire Thermostat Control
16	131243700 Frigidaire Screw
18	CRADLE & STUD
19	WCI 134613501
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	BLOCK-SUPPORT
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
33	WCI 131731400
38	ELBOW
39	131205100 Frigidaire Screw
42	WCI 5304439185
43	SCREW 12-24 X .63 HEX HD
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
80	131168200 Frigidaire Dryer Screw
