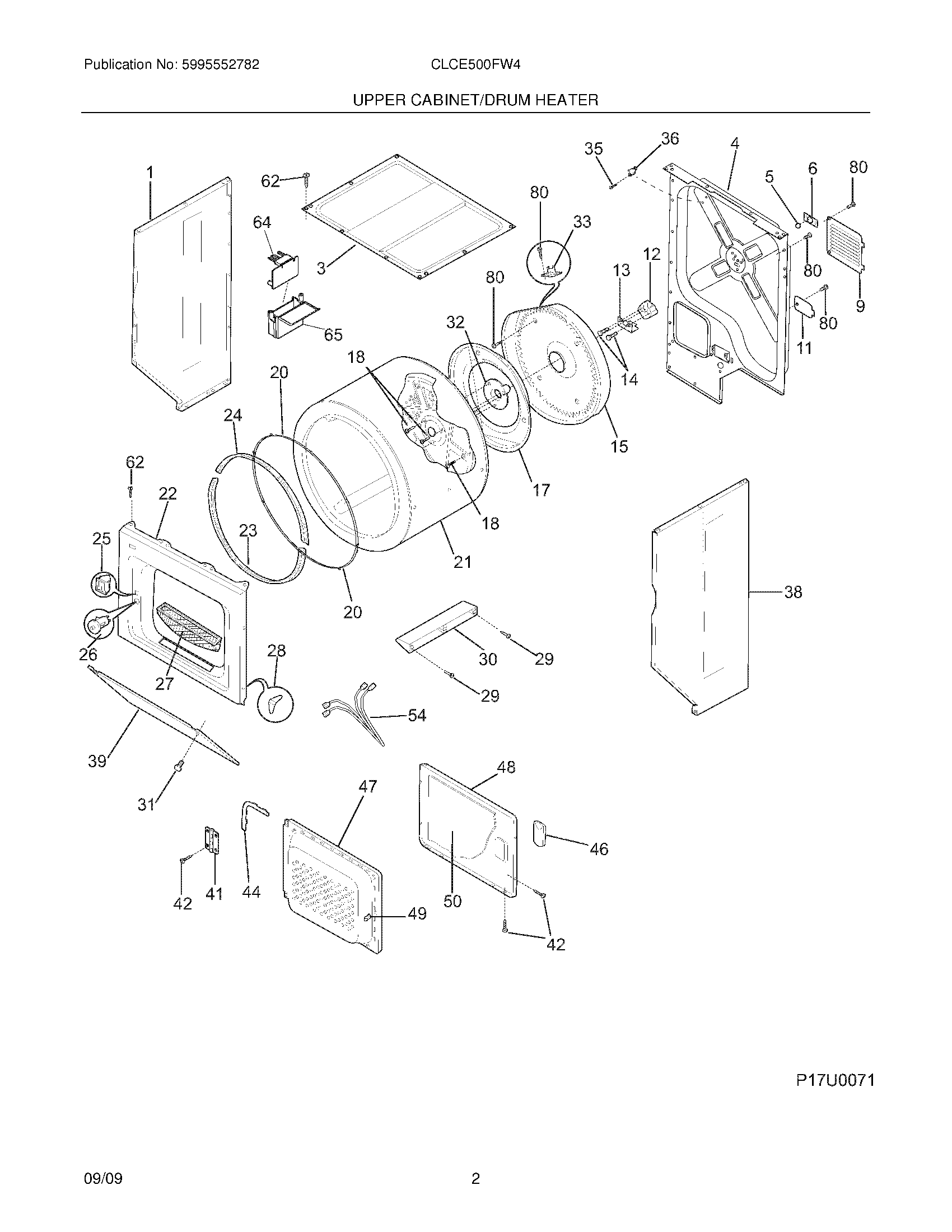

CLCE500FW4 03 – UPPER CABINET/DRUM HEATER

Products

Position	Product
NI	137576600 Frigidaire Dryer Hole Plug Light
NI	WCI 137194800
NI	WCI 134805600
1	WCI 131084710
3	131883301 Frigidaire Panel
4	WCI 134799902
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	WCI 137223901
11	WCI 3204250
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER ASSY W/HSNG
17	3204254 Frigidaire Baffle Assembly
18	131168200 Frigidaire Dryer Screw
20	137513300 Frigidaire Dryer Drum Glide
21	134122532 Frigidaire P-1 Assembly Drum Galv + O/S3 Xxx
22	WCI 131636237
23	5303937183 Frigidaire Dryer Lower Front Felt Seal
24	5303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813600 Frigidaire Dryer Door Switch
27	LINT FILTER
28	WCI 134440000
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	131202300 Frigidaire Screw
32	131777700 Frigidaire Dryer Bearing Drum
33	SAFETY THERMSTAT
35	131892100 Frigidaire Screw
36	134120900 Frigidaire Dryer Limiter Thermal
38	WCI 131084810
39	137546910 Frigidaire Panel
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	131789400 Frigidaire Handle
47	137365110 Frigidaire Panel
48	DOOR-OUTER, WHITE
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
54	WCI 134846300
62	131302800 Frigidaire Drum Vane Screw
64	WCI 131891010
65	WCI 131894600
