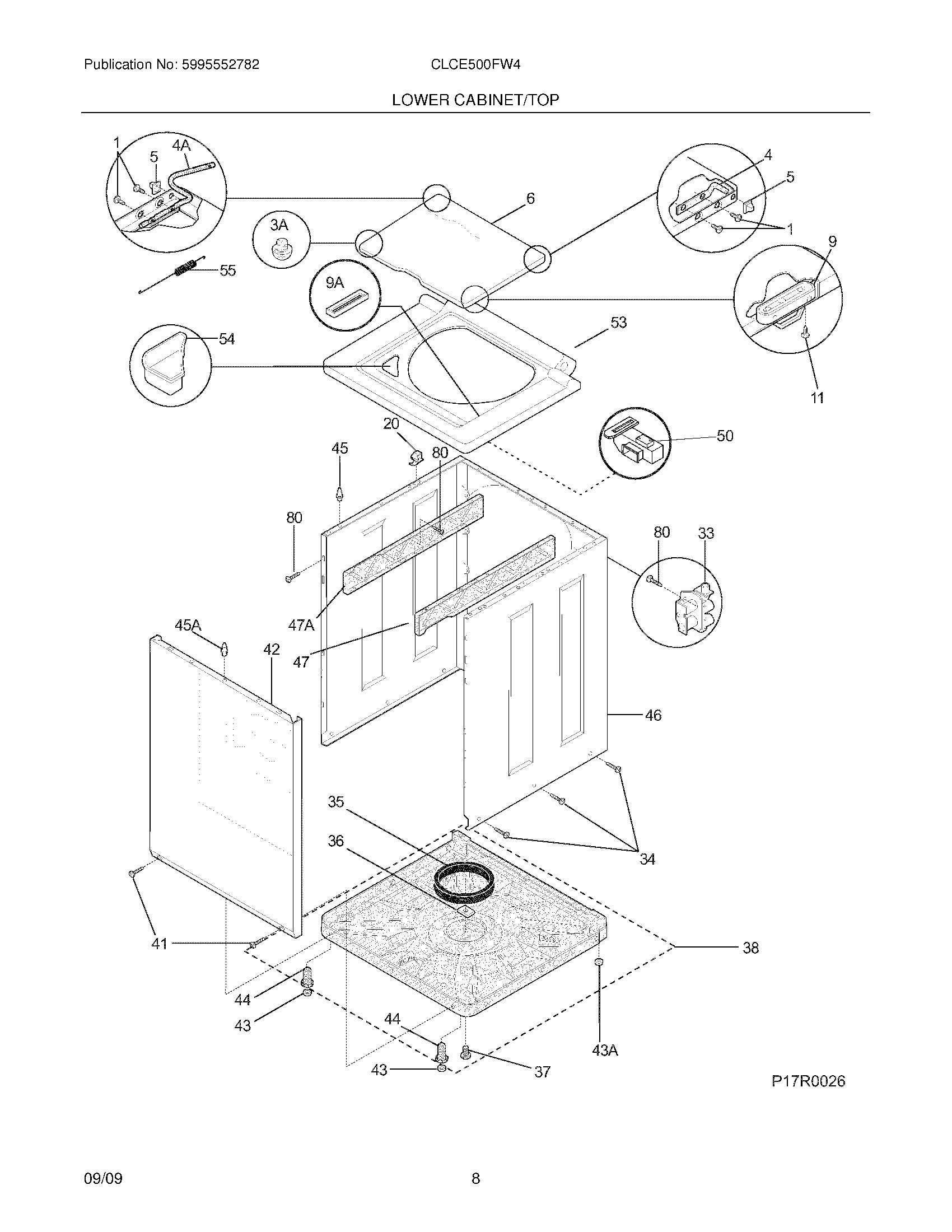

CLCE500FW4 09 – LOWER CABINET/TOP

CLCE500FW4 09 – LOWER CABINET/TOP

Written by

in

CLCE500FW4 09 – LOWER CABINET/TOP

Products

PositionProduct
1134203900 Frigidaire Scr 6-32X.337 Pph D
3A134075500 Frigidaire Bumper-LID
4A5304489657 Frigidaire Bar Hinge Kit
4WCI 137104700
55303208743 Frigidaire Grommet
65303212872 Frigidaire Lid
9AWCI 134768500
9131390000 Frigidaire Door Catch-Strike
113204368 Frigidaire Screw-Strike
203204374 Frigidaire Pin
33134890600 Frigidaire Valve
34131205500 Frigidaire Screw
35SNUBBER RING
36SHIPPING BLOCK
37WCI 131658900
38WCI 5303311213
41131302800 Frigidaire Drum Vane Screw
42WCI 131104303
43WCI 131422100
43A131422200 Frigidaire P-1 Self Level Leg Pad
44134548800 Frigidaire Washer Leg Levelling
45A131346401 Frigidaire Pin
45WCI 131346400
46WCI 134046600
47AMARRIAGE BRACKET-LH
47MARRIAGE BRACKET-RH
50134936800 Frigidaire Lid Lock Switch
53WCI 137194710
54WCI 3204394
55WCI 137046100
80131168200 Frigidaire Dryer Screw
