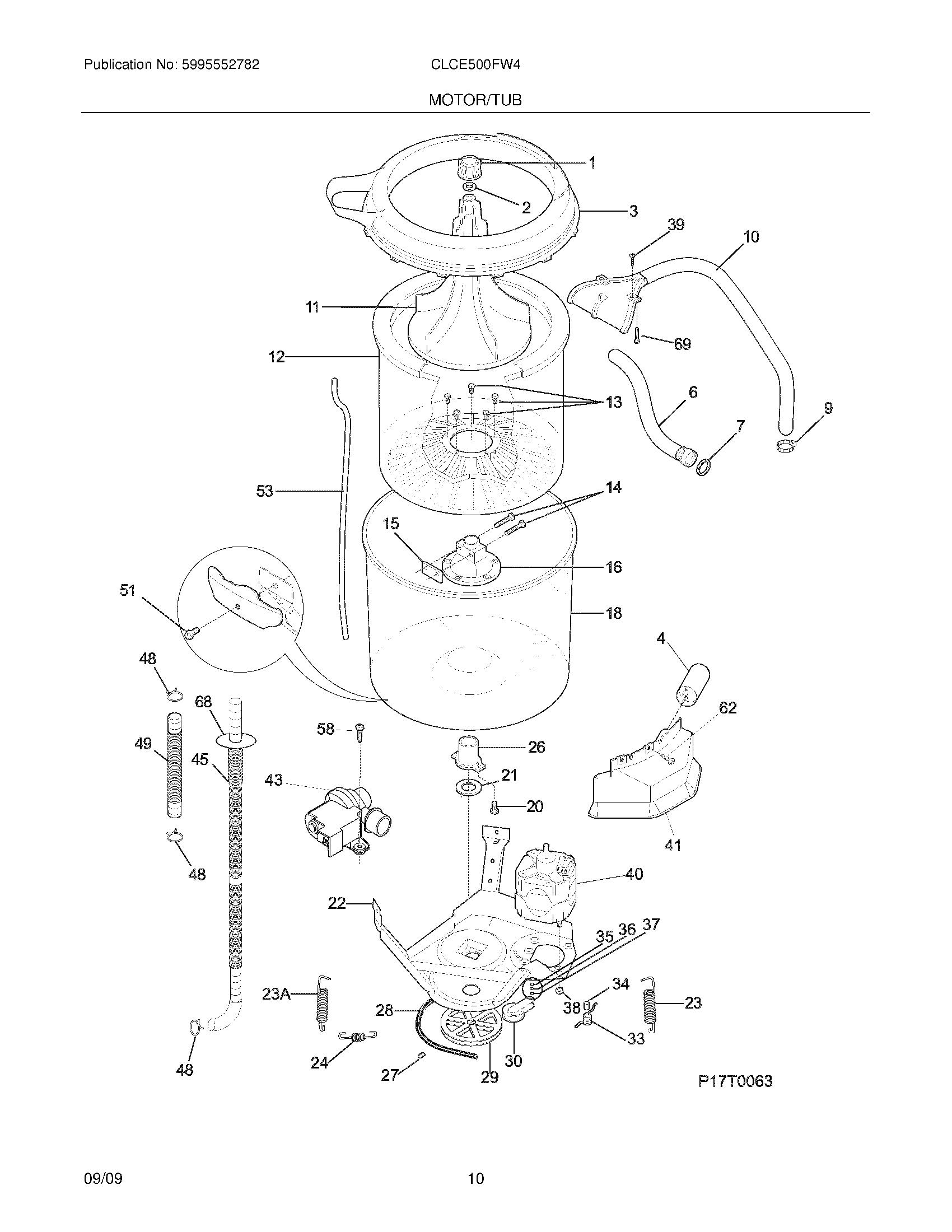

CLCE500FW4 11 – MOTOR/TUB

Products

PositionProduct
NI134261300 Frigidaire Clip
NI131453000 Frigidaire Bushing
NIWCI 134745300
NIWCI 131663500
NI5303309503 Frigidaire Clip
NI131901400 Frigidaire Seal
NIINSERT-SPRING ADJ
13204395 Frigidaire Agitator Cap
2WCI 3204396
3131398303 Frigidaire Tub Ring
4131715801 Frigidaire Washer Capacitor Motor Shield
65303912532 Frigidaire Hose Inlet 60"
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
95304488479 Frigidaire Washer Hose Clamp
10WCI 134211700
11ASSY-AGITATOR-STANDARD-SLIM
12TUB-SPIN, AND TRUNNION
13137546400 Frigidaire Screw 5/165-18 X .625
14137539500 Frigidaire Washer Trunnion Lock Plate Bolt
15137107000 Frigidaire Plate
16131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
18TUB-SPLASH, W/AIR DOME, BRNG
203205150 Frigidaire Tub Bearing Screw
215308002401 Frigidaire Washer Primary
22WCI 131373610
23A134885900 Frigidaire Spring
23134886600 Frigidaire Spring Primary
24WCI 131373900
263204405 Frigidaire Outer Tub Spin Bearing
275303270023 Frigidaire Screw Set
28WASHER BELT
29WCI 131498301
30WCI 131862900
33TORSION SPRING
34WCI 3204426
353161433 Frigidaire Retainer
36WASHER
37SPRING WASHER
38WCI 5303318708
39131205100 Frigidaire Screw
40134156400 Frigidaire Primary Motor
41WCI 134455500
43137221600 Frigidaire Washer Drain Pump
45134592700 Frigidaire Washer Drain Hose
48131306234 Frigidaire Clamp Pump
49131494800 Frigidaire Hose-Pump P1 to Tub
51WCI 134164400
535304401845 Frigidaire Tube Pressure
58134160900 Frigidaire Screw
62131302800 Frigidaire Drum Vane Screw
68131707800 Frigidaire Drain Hose Ring
69131731500 Frigidaire Fastener
