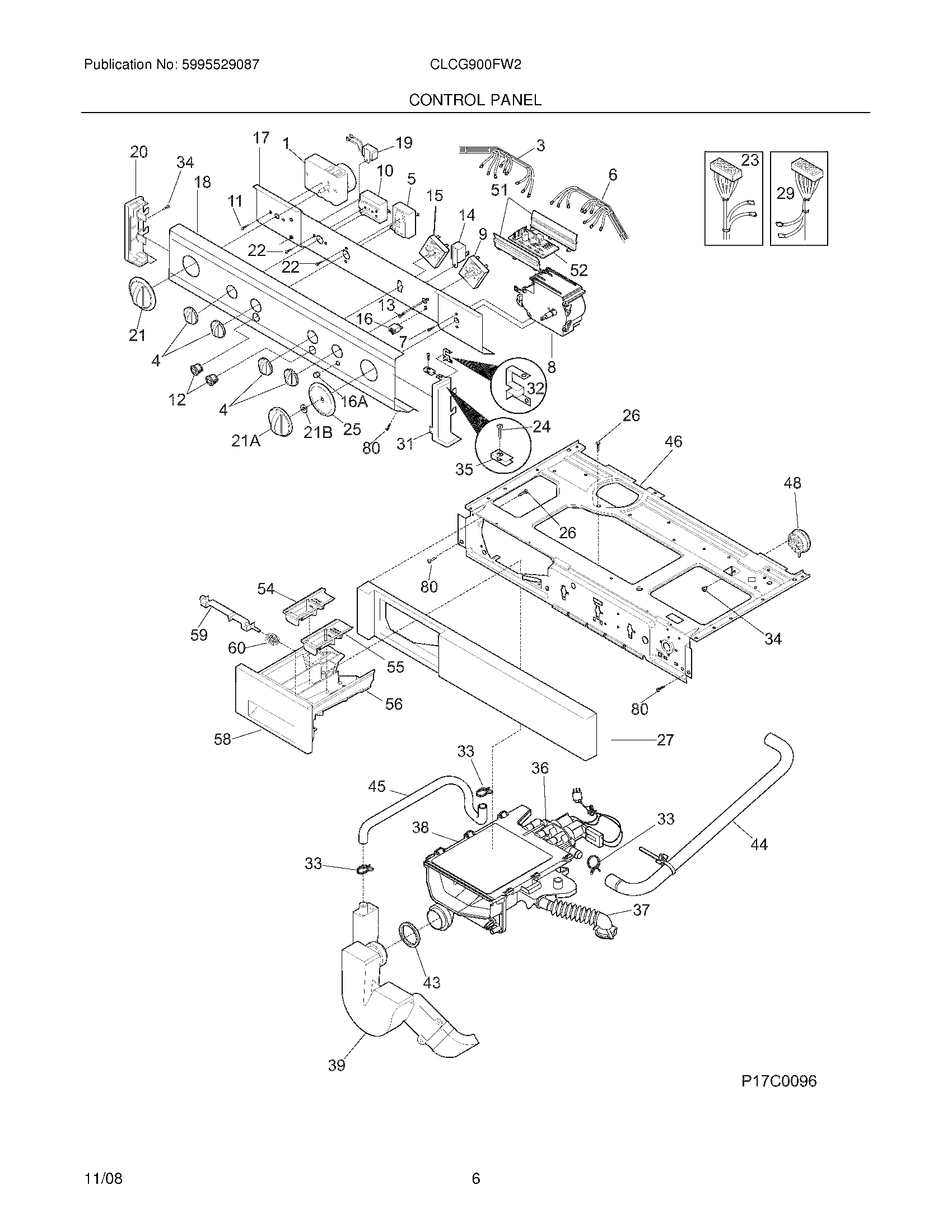

CLCG900FW2 07 – CONTROL PANEL

Products

Position	Product
NI	5303161300 Frigidaire Strap
NI	Clamp,siphon/bellows
NI	WCI 131931201
1	131960800 Frigidaire Timer
3	WCI 134136800
4	131873401 Frigidaire Washer Control Knob
5	WCI 134399901
6	WCI 134392000
7	131243800 Frigidaire Screw
8	134803600 Frigidaire Washer Timer
9	WCI 134400000
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
12	134040800 Frigidaire Switch
13	WCI 131311700
14	WCI 131724500
15	WCI 134437700
16	Lamp,status light
16A	Lens,status light ,clear
17	WCI 134263400
18	WCI 134860700
19	WCI 5303286537
20	WCI 131288101
21B	Spacer,washer ,timer shaft
21A	WCI 131167601
21	131873304 Frigidaire Dryer Timer Knob White
22	WCI 3161259
23	WCI 134605700
24	134156200 Frigidaire Screw
25	WCI 131167701
26	WCI 131823400
27	PANEL-DISPENSER DRAWER
29	WCI 134571400
31	WCI 131288211
32	WCI 3204357
33	134737300 Frigidaire Clamp
34	131243700 Frigidaire Screw
35	CLIP (8)
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
38	WCI 131803710
39	WCI 131863300
43	WCI 131749200
44	WCI 131786000
45	WCI 131786100
46	WCI 134191412
48	WCI 134818201
51	WCI 134426400
52	WCI 134216300
54	WCI 131272100
55	WCI 131272000
56	WCI 131271910
58	WCI 131729500
59	WCI 131714900
60	WCI 131427500
80	131168200 Frigidaire Dryer Screw
