CLY2220BDB13 04 – CHASSIS PARTS – Aparts

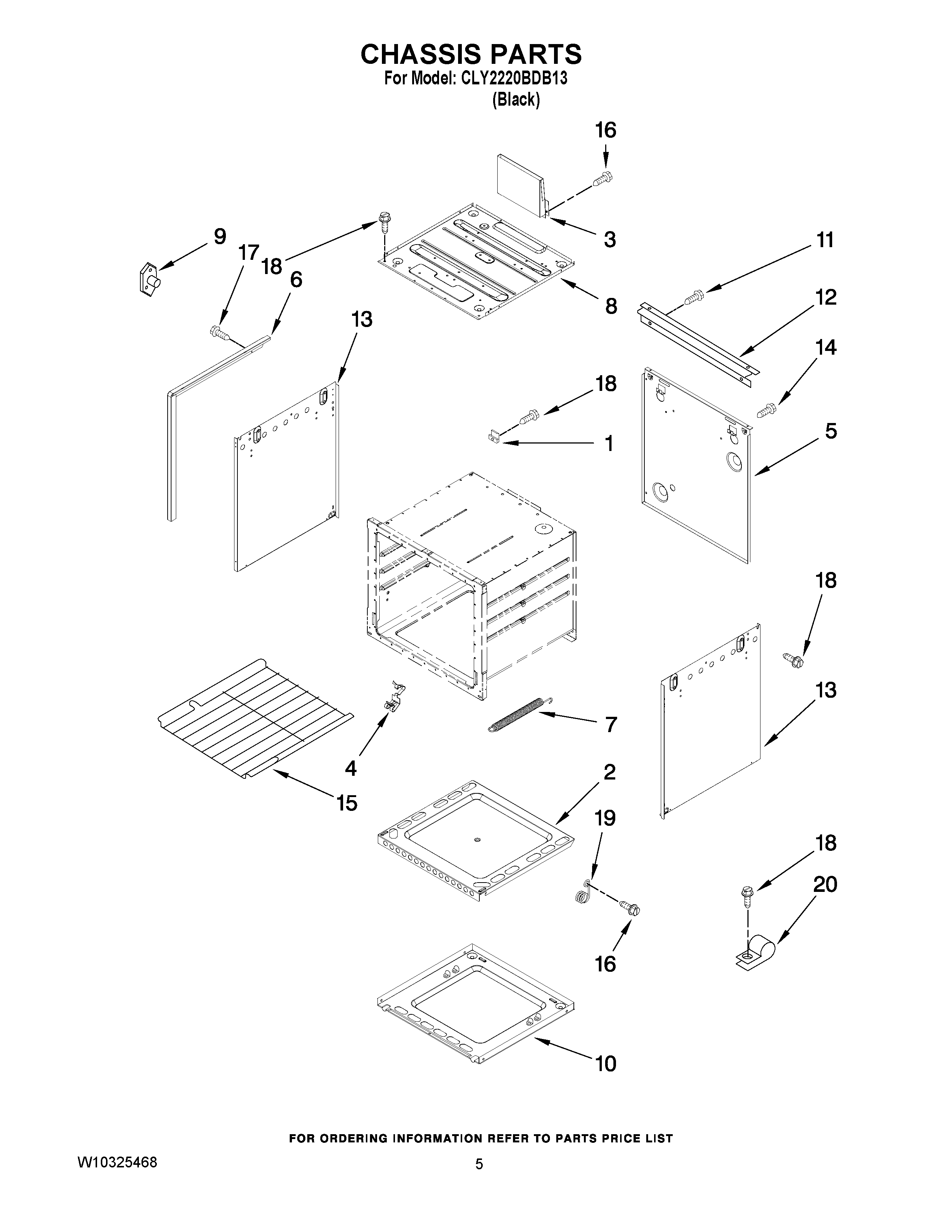

CLY2220BDB13 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P105-60
NI	MAY 7002P429-60
1	MAY 7112P142-60
2	MAY 2205F050-19
3	MAY 4006W237-51
4	WP7112P004-60 Whirlpool Thermal Clip
5	MAY 4002F330-51
6	MAY 3608F148-70
6	MAY 3608F147-70
7	MAY 7803P052-60
8	MAY 4011F460-51
9	MAY 7103P109-60
10	MAY 4011F325-51
11	Screw (2) (Black)
12	MAY 3604F274-70
13	MAY 4016F062-51
13	MAY 4016F061-51
14	SCREW (8BX3/8-NI)
15	MAY 7801P155-60
16	MAY 7101P500-60
17	MAY 7101P301-60
18	MAY 7101P376-60
19	MAY 7112P065-60
20	MAY 7111P009-60
