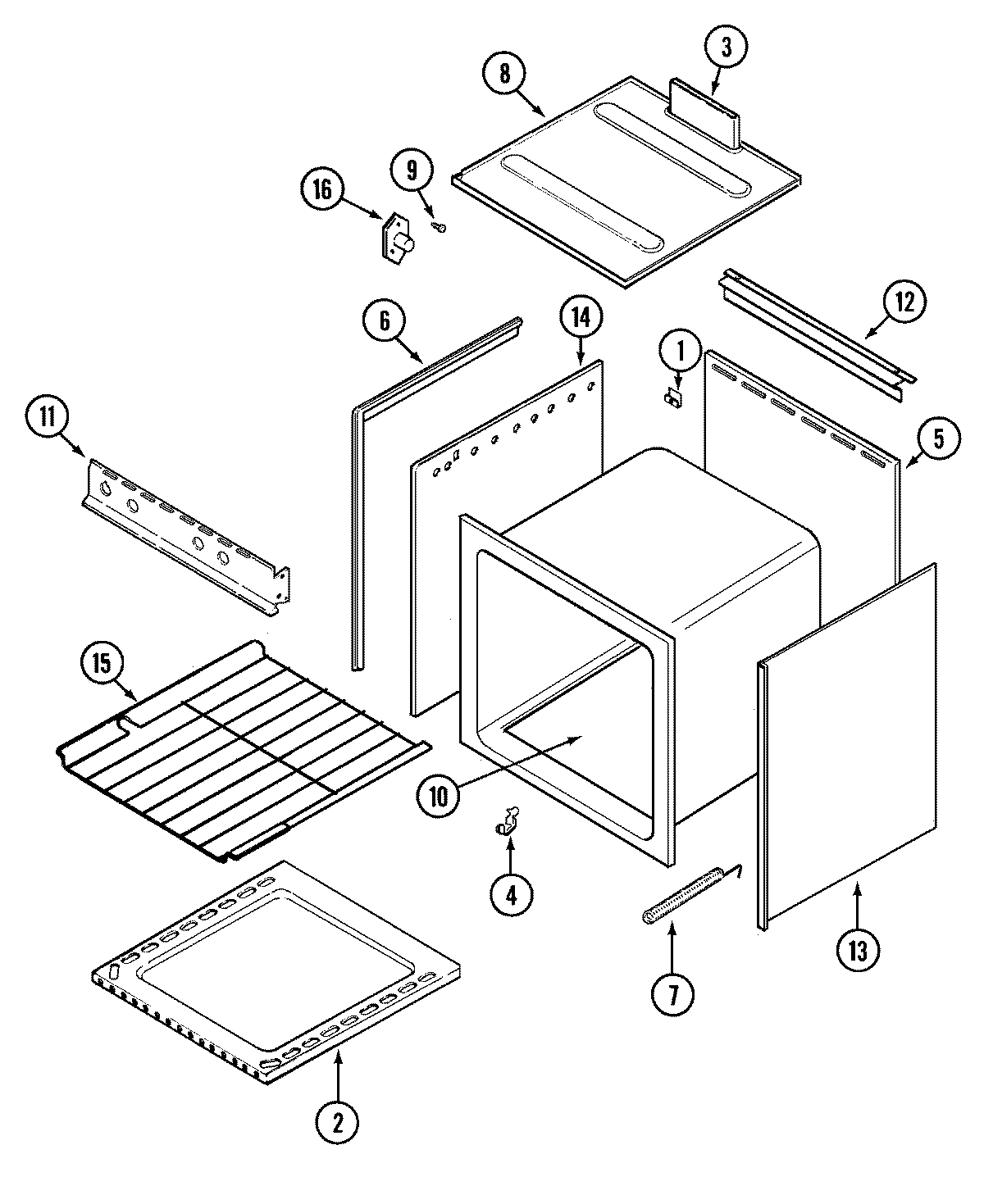

CLY2232BDB 02 – OVEN (CLY2232BDB) – Aparts

CLY2232BDB 02 – OVEN (CLY2232BDB)

Products

Position	Product
1	MAY 74003998
2	MAY 2205F016-19
3	WP74003976 Whirlpool Screw
3	MAY 4006W075-80
4	WP7112P004-60 Whirlpool Thermal Clip
5	MAY 74002417
6	MAY 74002828
6	MAY 74002827
7	MAY 74001835
8	MAY 74003934
10	MAY 74003342
11	MAY 74003351
12	MAY 74002829
12	MAY 7101P058-60
12	W10828565 Whirlpool Screw
13	MAY 4016F038-51
14	MAY 4016F037-51
14	MAY 7101P356-60
14	SCREW (8BX3/8-NI)
15	MAY 74003106
16	MAY 7103P109-60
