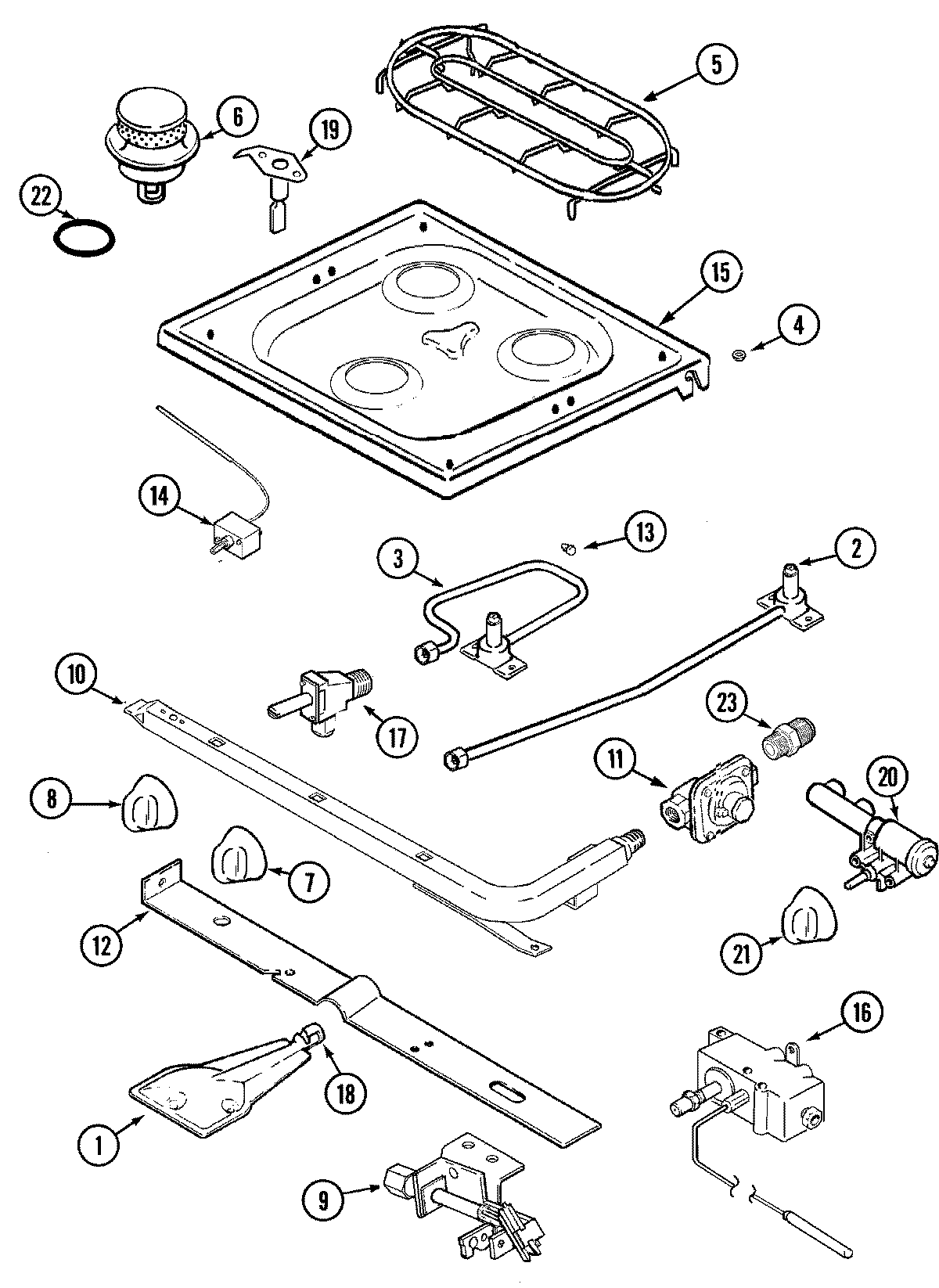

CLY2245BDB 03 – TOP & GAS CONTROLS
Written by
in
CLY2245BDB 03 – TOP & GAS CONTROLS
Products
Position
Product
NI
MAY 74005309
NI
MAY 74005308
1
MAY 74003343
2
MAY 74003931
3
MAY 74003930
4
MAY Y8007P02060
5
MAY 74003948
6
MAY 74003967
7
MAY 7733P072-60
7
MAY 74001794
8
MAY 74004359
9
MAY 74006334
9
MAY 74004586
9
MAY 1555261K
10
MAY 74004360
11
MAY 74004235
12
MAY 74001834
13
MAY 8003P008-60
14
MAY 1555222
14
MAY 74004361
14
MAY 74006332
14
MAY 74006336
14
MAY 74006338
14
MAY 7101P010-60
14
MAY 1555280K
14
MAY 74002278
14
MAY 74002279
15
MAY 74003928
16
MAY 1555279
16
MAY 74006333
16
MAY 74004585
17
MAY 74004643
17
MAY 74004644
18
MAY 3411F003-34
19
74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
20
MAY 74003947
20
MAY 74003946
21
WP74002414 Whirlpool Igniter Knob
22
MAY 74002745
23
MAY 74004234
←
